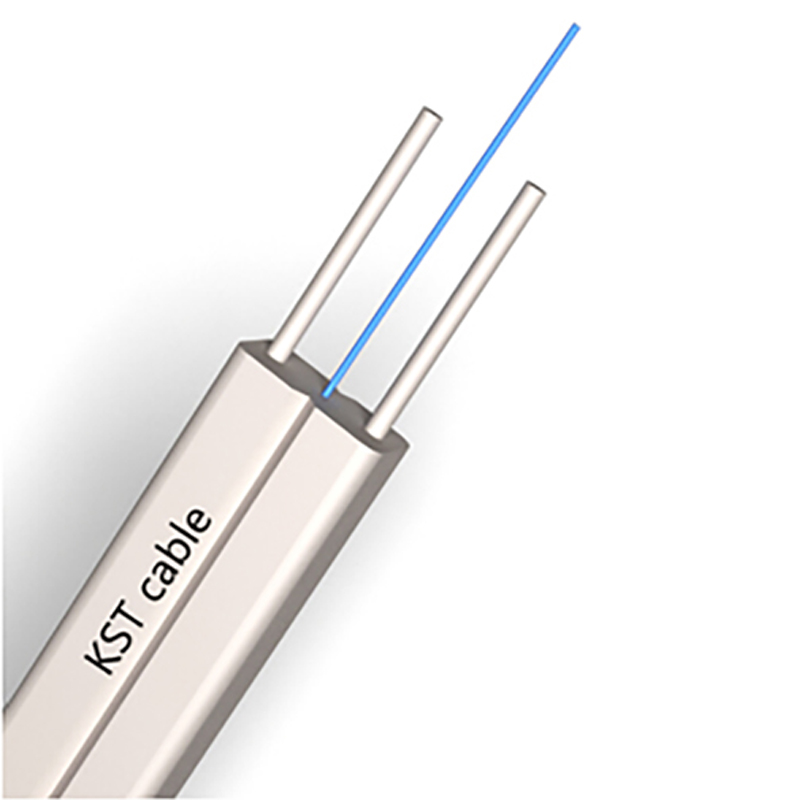

1 core Tight Buffer Indoor FTTH Drop cable

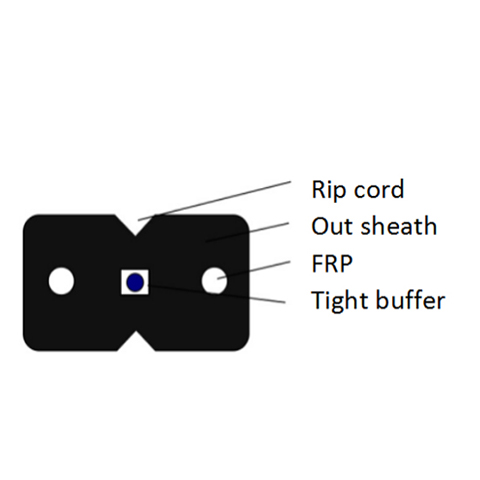

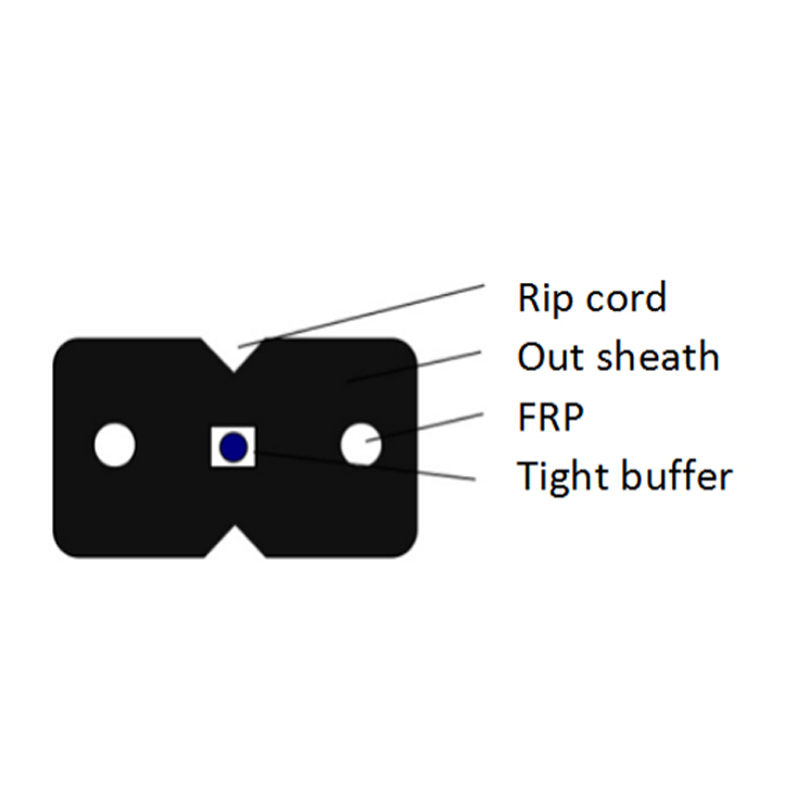

FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The tight buffer is positioned in the center. Two parallel strength member are placed at the two sides, then the cable is completed with black LSZH sheath.

  • Product Model:FTTH
INQUIRY
· Adopted to indoor distribution;
· As pigtail of communication equipment;
· Suitable for communication equipment;
· Can be installed conveniently.
· Suitable for limited space field of the branch, indoor series;
· Laid to facilitate construction operations;part and the cable;
· Jacket use low smoke, halogen-free flame-retardant materials;
· Prevent lightning and strong electric environment;
· FRP strengthen the component materials.

Cable construction details

No.of fiber 1F
Gross weight 20kg/km

SM fiber
Fiber type G657A2 / G657B3 MFD 8.6~9.8um
Cladding diameter 125±0.7um Cladding non-circularity ≤0.7%
Coating
diameter
245±5um Fiber color standard spectrum
Strength member Material FRP Color white
 Diameter 0.5mm Qty 2
Tight buffer Material Nylon Color white
Diameter 0.9mm
Out sheath Material LSZH Color black
Diameter  2.5 (±0.1) *4.0mm (±0.1) Thickness ≧0.5mm

Cable mechanical and environment characteristics

Tensile strength Long term(N) 40N
Short term(N) 80N
Crush load Long term(N) 500N/100mm
Short term(N) 1000N/100mm
Bending radius Dynamic 20D
Static 10D
Temperature -20℃~+70℃

Fiber Performance

Fiber style Unit SM G652D MM 50/125 OM3-150
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.23 ≤3.0/1.0 ≤3.0/1.0
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7
