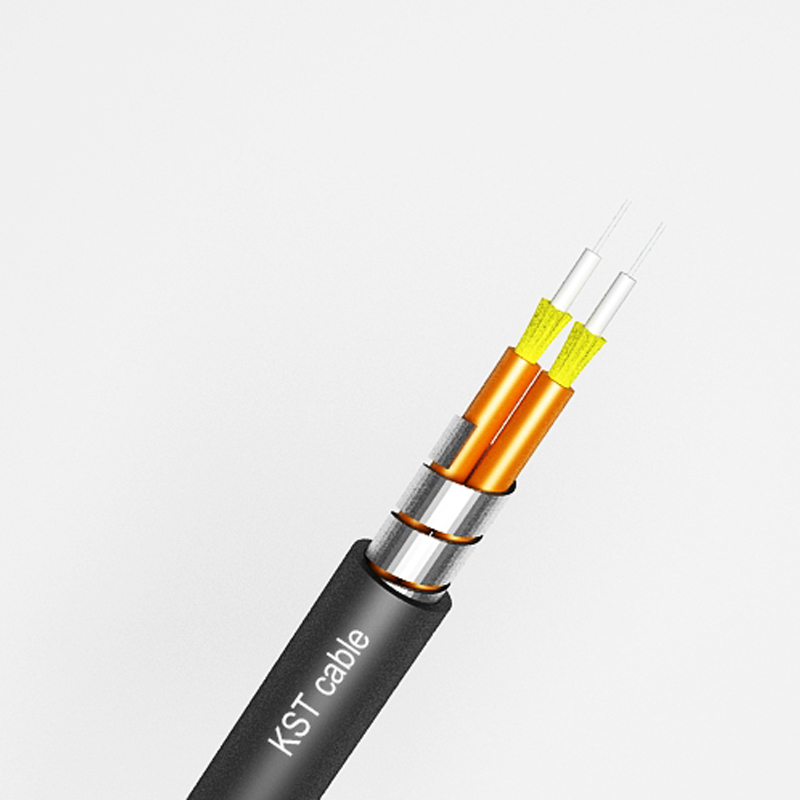

7.0mm Duplex Armored Indoor Fiber Optic Cable

7.0mm duplex armored indoor fiber optic cable use 900μm tight buffer as optical communication medium. The tight buffer is surrounded with aramid yarn, which is wrapped with LSZH as the inner jacket. A layer of braided steel wire is applied over the inner jacket, then the cable is completed with HDPE as outer sheath .

  • Product Model:
INQUIRY
· Adopted to indoor distribution..
· As pigtail of communication equipment.
· Suitable for communication equipment served.
· Can be installed conveniently.
· Hight strength kevlar yarn member.
· High quality tight buffered.
· Soft and easy to strip.
· Round construction.

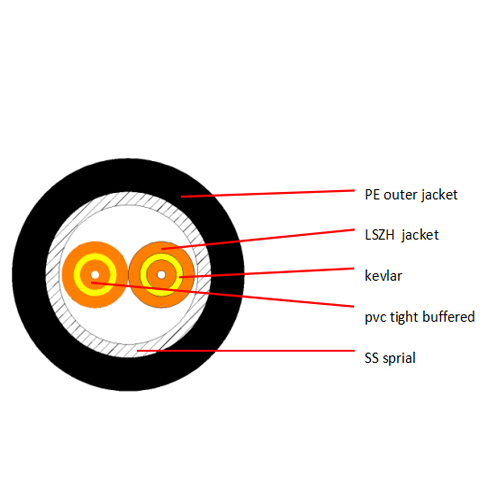

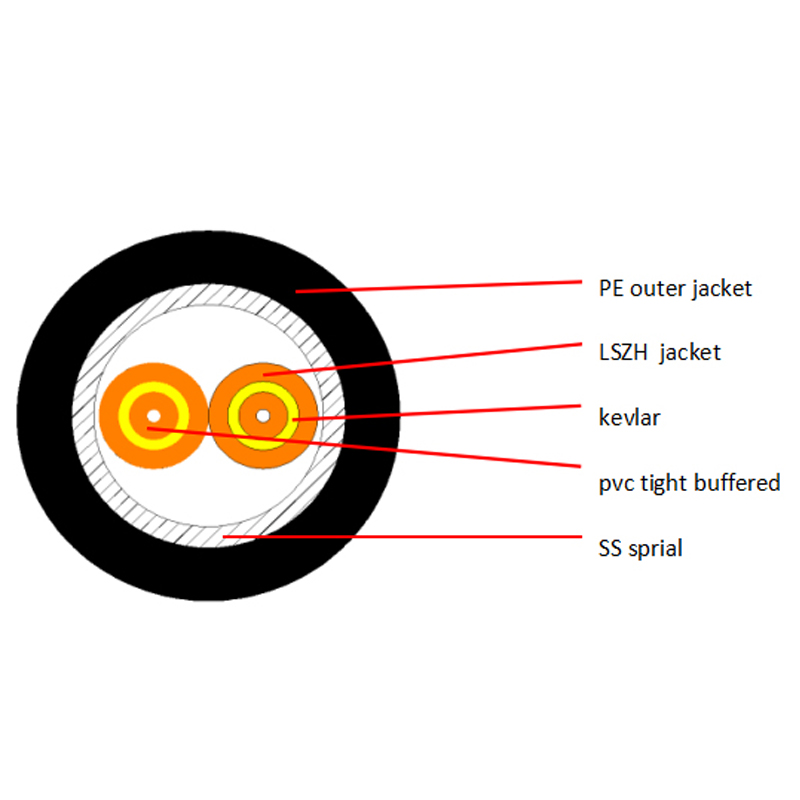

Cable Construction Details

Fiber count 2F
Tight buffer Material PVC Color Orange
Diameter 0.9mm Thickness 0.30±0.03mm
Inner sheath Material LSZH Diameter 1.9±0.05mm
Dupont kevlar yarn Thickness 0.35±0.03mm
Armor Mateial Braided spiral steel wire Diameter 5.0±0.1mm
Outer Sheath Material HDPE Color Black
Diameter 7.0±0.1mm Thickness 1.0±0.05mm
Net weight 30±5kg/km

Cable mechanical and environment chararcteristics

Tensile strength Long term (N) 200
Short term(N) 400
Crush load Long term(N/100mm) 1000
Short term(N/100mm) 2000
Bending radius Dynamic (mm) 20D
Static (mm) 10D
Temperature -20℃~70℃

Fiber characteristics

Fiber style Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.4/0.3 ≤3.0/1.5 ≤3.0/1.5
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7

Package

Packing material: Wooden drum.

Packing length: 2km per drum or customization.
