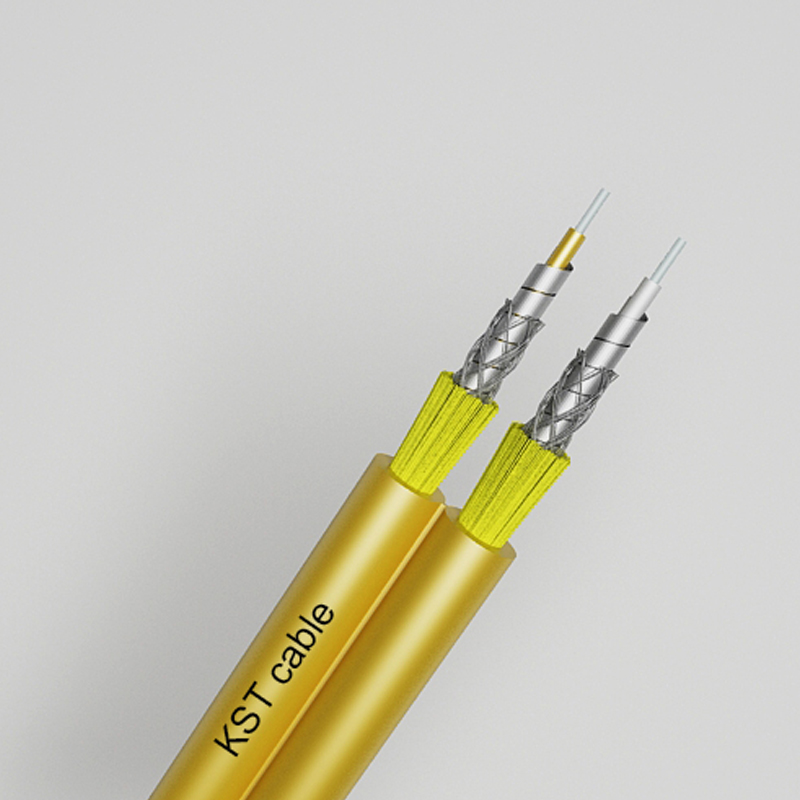

Duplex zipcord steel braiding armored Indoor cable(GJFJBV)

Duplex zipcord steel braiding armored cable use 900μm or 600μm flame-retardant tight buffer fiber as optical communication medium.
The tight buffer fiber wrapped with a layer of spiral steel wire , and aramid yarn as strength member units, and a layer of steel brading is applied after spiral steel wire. such unit is extruded with a layer of PVC or LSZH material as inner jacket.
Then the cable is completed with a layer of flat PVC or LSZH(Low smoke,Zero halogen,Flame-retardant) jacket as out sheath .

  • Product Model:GJFJBV
INQUIRY
· Adopted to indoor distribution..
· As pigtail of communication equipment.
· Suitable for communication equipment served.
· Can be installed conveniently.
· Hight strength kevlar yarn member.
· High quality tight buffered or loose tube.
· Soft and easy to strip.
· Round construction.

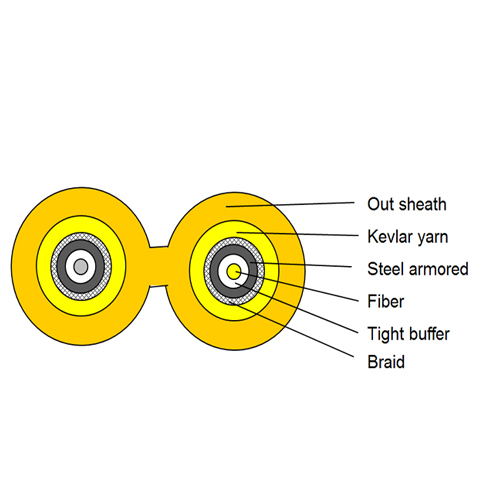

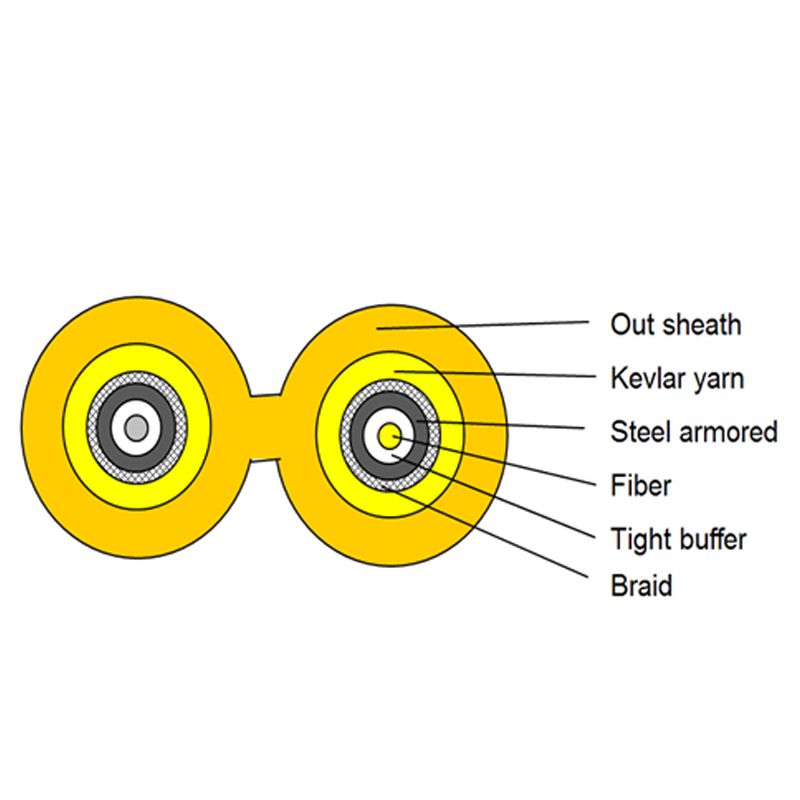

 Cable construction details :

Technical Parameters:
Out Diameter(MM) 2.8×5.8 Weight(KG) 40
3.0×6.2 40
Inner Diameter(MM) 0.9
0.9
Storage temperature(℃) -20+60
Min Bending Radius(mm) Long term  10D
Min Bending
Radius(mm)
Short term 20D
Min allowable
Tensile Strength(N)
Long term  300
Min allowable
Tensile Strength(N)
Short term 1000
Crush Load (N/100mm) Long term 500
Crush Load (N/100mm) short term 1000



Standard color of fiber and tube

Standard Colour Identification
No. 1 2
Color Yellow White



Fiber characteristic

Fiber style Unit SM
G652
SM
G652D
MM
50/125
MM
62.5/125
MM
OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ----
Bandwith 850nm MHZ.KM ---- ---- ≧400  ≧160  Bandwith
1300nm MHZ.KM ---- ---- ≧800  ≧500
Zero dispersion wavelength nm 1300-1324 ≧1302,
≤1322
---- ---- ≧ 1295,
≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr   ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*k
m)
≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm ≧ 1180,
≤1330
≧1180,
≤1330
---- ---- ----
Cable sutoff
wavelength λcc
nm ≤1260 ≤1260 ---- ---- ----
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical
Aperture(NA)
  ---- ---- 0.200+/
-0.015
0.275+/-0.
015
0.200+/-0
.015
Step(mean of bidirectional
measurement)
dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber
length and point
dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10

Dicontinuity
Difference backscatter
coefficient
dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
Attenuation uniformity dB/km ≤0.01 ≤0.01
Core dimater um     50+/-1.0 62.5+/-2.5 50+/-1.0
Cladding diameter um 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242+/-7 242+/-7 242+/-7 242+/-7 242+/-7
Coating/chaffinch
concentrically error
um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding conentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5
Curl(radius) um ≤4 ≤4 ---- ---- ----



Package

1.Packing material: Wooden drum
2.Packing length: standard length of cable shall be 2 km. Other cable length is also availabler
if required by custome



Cable marking and cable reel marking

The cable sheath shall be marked with white characters according to customer's requirement.
