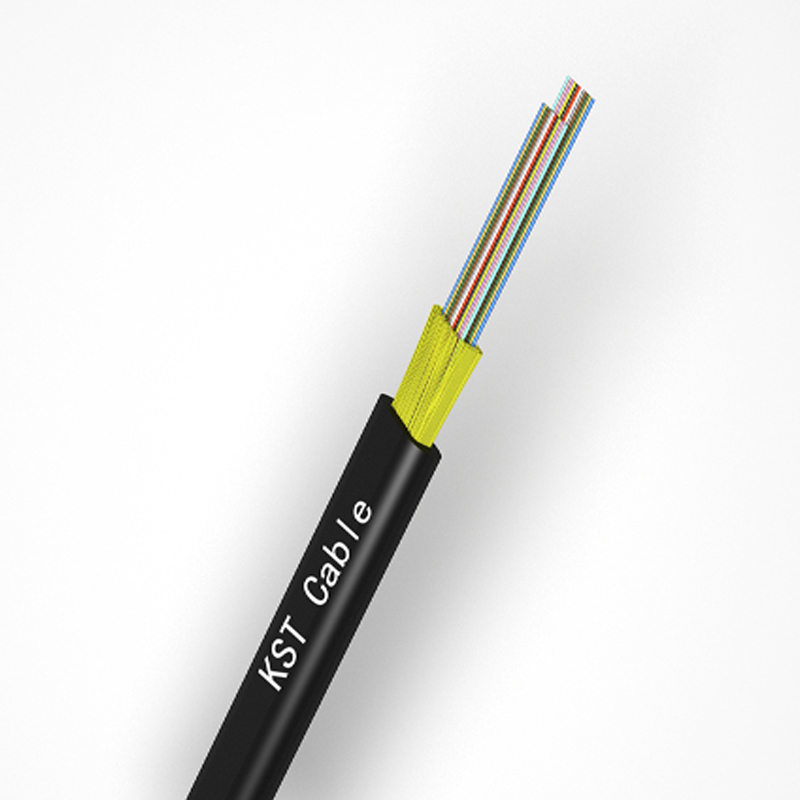

24 Core Indoor Ribbon Fiber Cable

Indoor ribbon fiber cable uses fiber ribbon(s) as optical communication mediun, then warpped with a layer of Dupont aramid yarn as strength member units, and the cable is completed with LSZH(Low smoke, Zero halogen, Flame-retardant)jacket.

  • Product Model：
INQUIRY
ApplicationCharacteristicsTechnical Parameters
· Adopted to indoor distribution.
· As pigtail of communication equipment.
· Suitable for communication equipment served.
· Hight strength kevlar yarn member.
· High-integrated fiber ribbon design.
· Flame-retardant jacket.

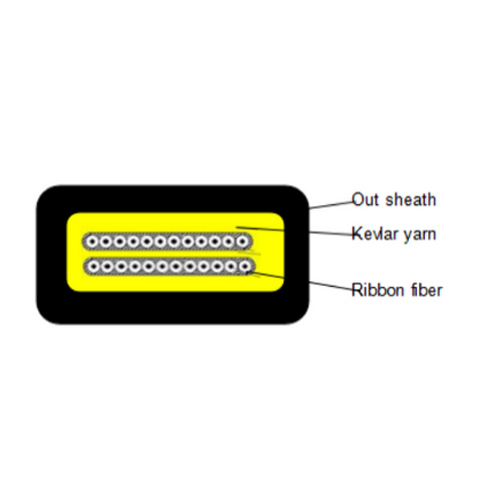

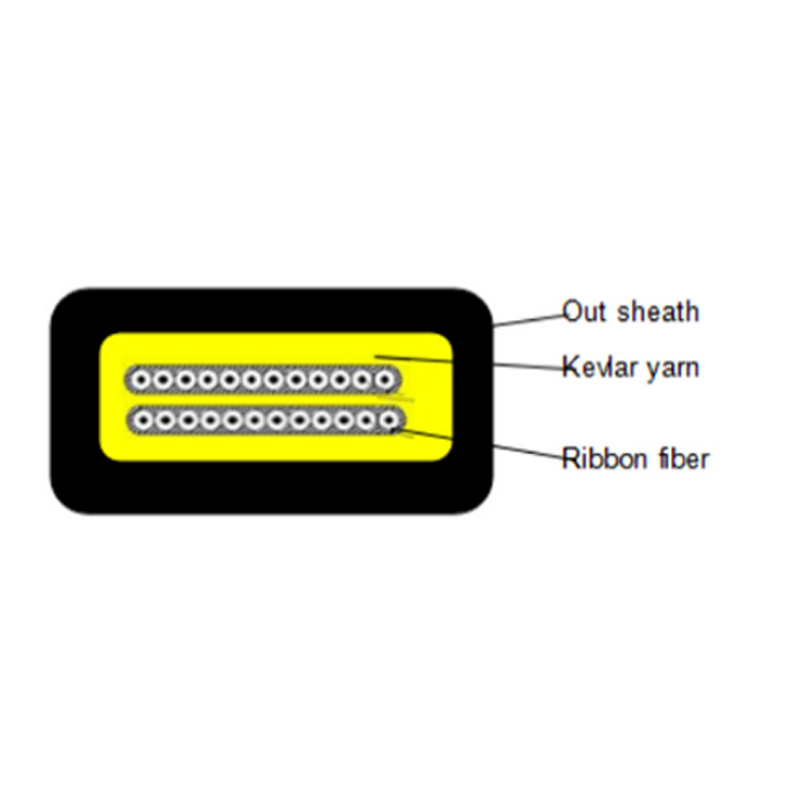

Cable construction details

Fiber count 24F
Yarn Material  Dupont kevlar yarn
Out sheath Diameter 3.0*5.0mm Thickness 0.5mm
Material  LSZH Color Black

Cable mechanical and environment chararcteristics

Tensile strength Long term（N） 200N
Short term（N） 400N
Crush load Long term (N/100mm) 500N/100mm
Short term (N/100mm) 1000N/100mm
Bending radius Dynamic (mm) 20D
Static (mm) 10D
Temperature -20℃～+70℃

Fiber Performance

Fiber style Unit SM G652D MM 50/125 OM3-150
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.23 ≤3.0/1.0 ≤3.0/1.0
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7
ksten.seovw.cn/products/Indoor-cable/simplex/663.html

Package

Packing material: Wooden drum.

Packing length: 1km per drum or customization.
