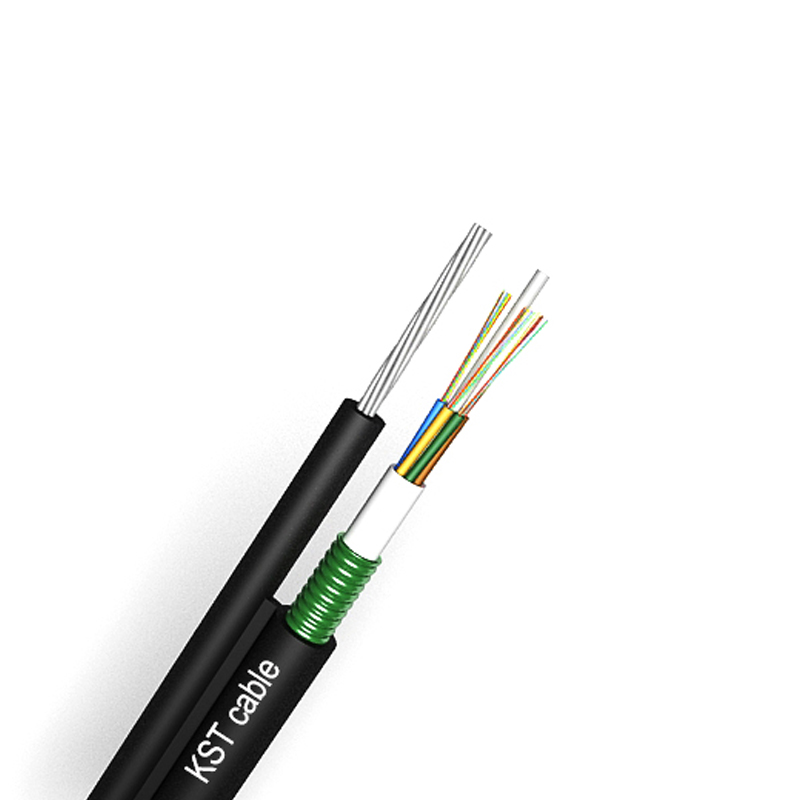

Steel Wire Stranded Figure 8 Aerial Fiber Optic Cable

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound. Loose tubes filled with water proof compound to ensure compact and longitudinally water blocking, then warpped by aluminum tape. This part of cable accompanied with the wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.

  • Product Model：GYFTC8A
INQUIRY
ApplicationCharacteristicsTechnical Parameters
• Adopted to outdoor distribution.
• Suitable for aerial, pipeline laying method.
• Long distance and local area network communication.
1.Non-metal strength has an excellent anti-electromagnet ability.
2. Loose tube design for good performance.
3. Excellent mechanical and environmental characteristics.
4. Good flexibility and bending performance.
5. Small outer diameter,light weigh easy to installation.
6. 100% cable core filling.
7. Aluminum tape moisture barrier.

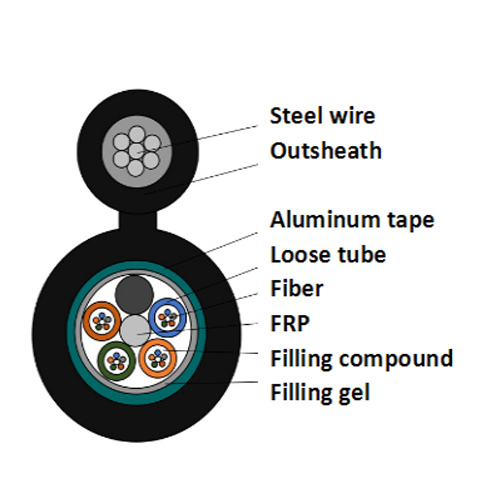

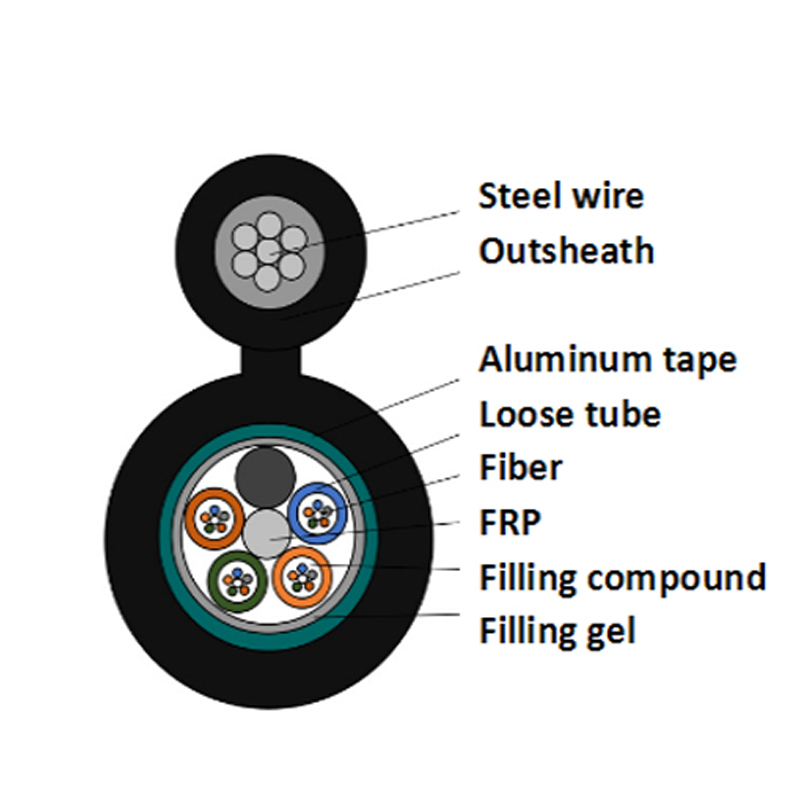

Cable construction details

No. of fibers 6 12 24 48 72 96 144
No. of tubes 1 2 4 4 6 8 12
fibers per tube 6 6 6 12 12 12 12
Filler Rod 4 3 1 1 0 0 0
 Tube diameter (±0.1mm) 2.0  2.0  2.0  2.0  2.0  2.0  2.0
Thickness of loose tube
(±0.05mm)		 0.3  0.3  0.3  0.3  0.3  0.3  0.3
Outer diameter (±0.5mm) 5.4X8.6
-15.0		 5.4X8.6
-15.0		 5.4X8.6
-15.0		 5.4X9.8
-16.5		 5.4X10.8
-17.5		 5.4X12.2
-19.0		 5.4X14.9
-22.0
Thickness of out diameter
(±0.1mm)		 1.6 1.6 1.6 1.6 1.6 1.7 1.7
Loose tube Material PBT Color standard spectrum
Water blocking
system		 Material Filling gel / Water blocking tape
Central strength
member		 Material FRP Diameter 1.4(6-48)
2.0(72-144)
Mental strength
member		 Material Stranded steel wire Type 1.0mm*7
Armor Material Aluminum tape
Gallus Material PE Size
(h*w)		 2.5*1.5mm
Out sheath Material PE Color Black

Cable mechanical and environment chararcteristics

Tensile strength Long term（N） 3000N
Short term（N） 7000N
Crush load Long term（N） 300N/100mm
Short term（N） 1000N/100mm
Bending radius Dynamic 20D
Static 10D
Installation Temperature -10℃～+60℃
Storage Temperature -40℃～+70℃

Fiber characteristics

Fiber type Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.24 ≤3.0/1.5 ≤3.0/1.5
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7

Package

Packing material: Wooden drum.

Packing length: 2km per drum.
