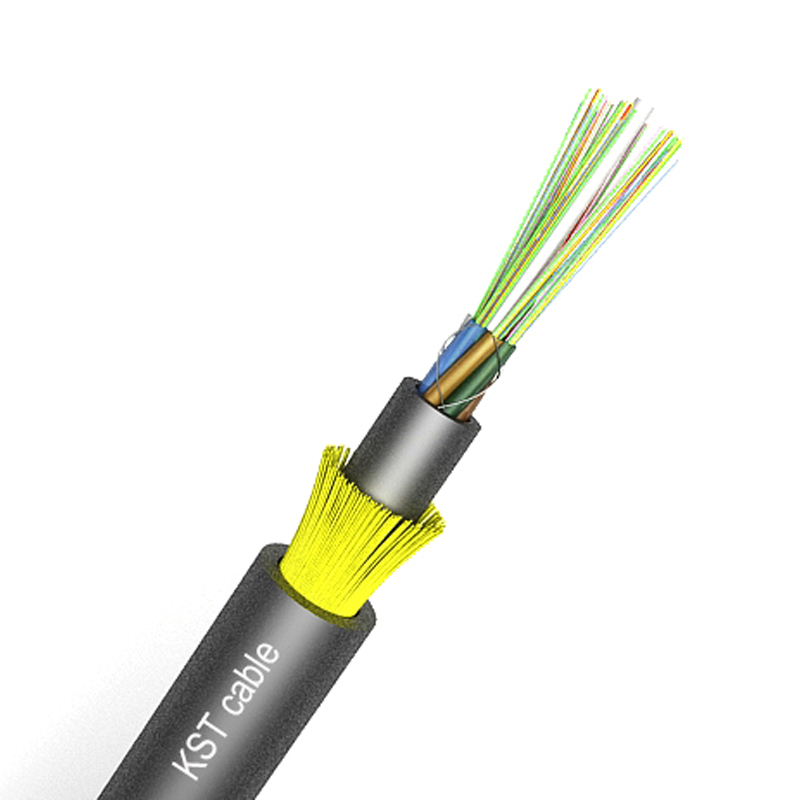

Double Sheath Kevlar Yarn Reinforce ADSS Fiber Optic Cable

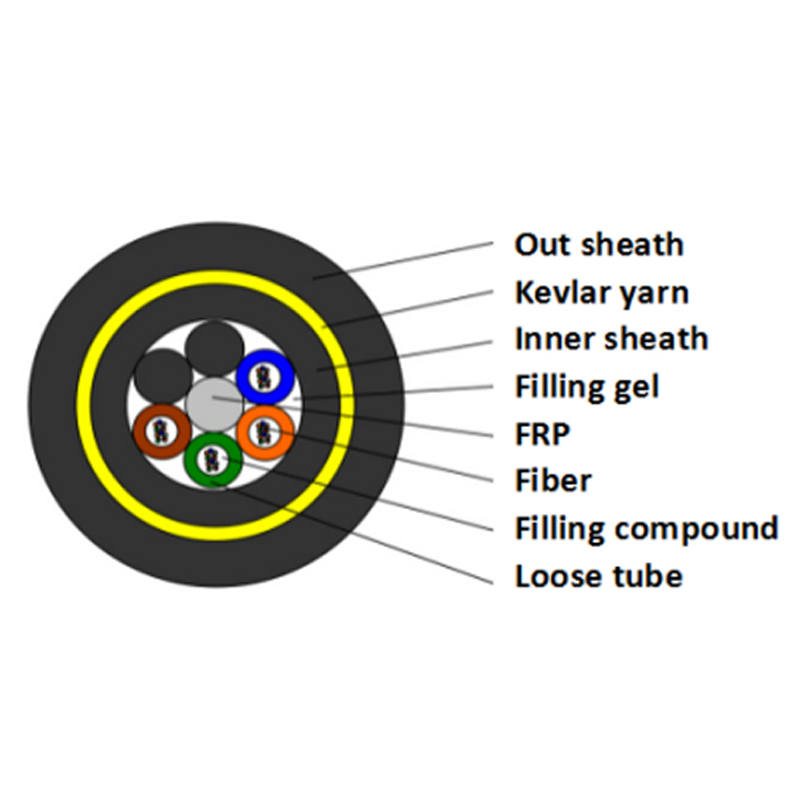

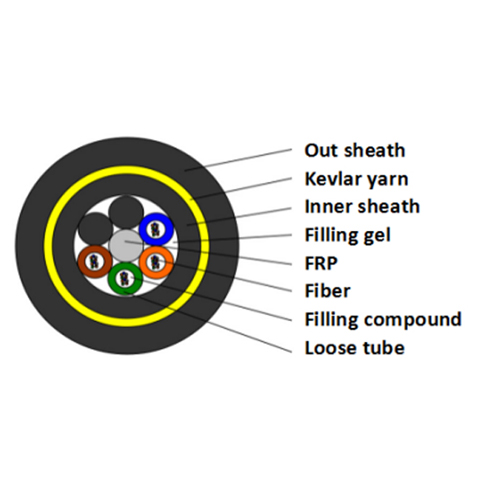

ADSS cable is loose tube stranded. Fibers, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
• For overhead power lines under 110kV, PE outer sheath is applied.
• For power lines equal to or over 110kV, AT outer sheath is applied.
• The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
• Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
• The design life span is 30 years.
• Good performance of tensile strength and temperature.
Nominal design parameters
NO. of fibers
6
12
24
48
72
96
144
No. of tubes
1
2
4
4
6
8
12
Filler rod
5
4
2
2
0
0
0
fibers per tube
6
6
6
12
12
12
12
Nom. tube diameter (±0.2mm)
2
2
2.0
2.0
2.0
2.0
2.0
Nom. diameter (±0.5mm)
12.2
12.2
12.2
12.2
12.2
14.0
16.0
Loose tube
Material
PBT
Color
Standard spectrum
Filler rod
Material
PP
Color
Black
Maximum tensile strength
4000N
Maximum crush load
3000N/100mm
Minimun bending radius
10D
Span length
100m - 120m
Out sheath material
PE
Temperature range
-20℃ ~ 70℃
Fiber characteristics
Fiber type
Unit
SM G652D
MM 50/125
MM 62.5/125
Condition
mm
1310/1550
850/1300
850/1300
Attenuation
dB/km
≤0.36/0.24
≤3.0/1.5
≤3.0/1.5
Cladding diameter
um
125±1
125±1
125±1
Cladding non-circularity
%
≤1.0
≤1.0
≤1.0
Coating diameter
um
242±7
242±7
242±7
Package
Packing material: Wooden drum.
Packing length: 2km per drum or customization.
