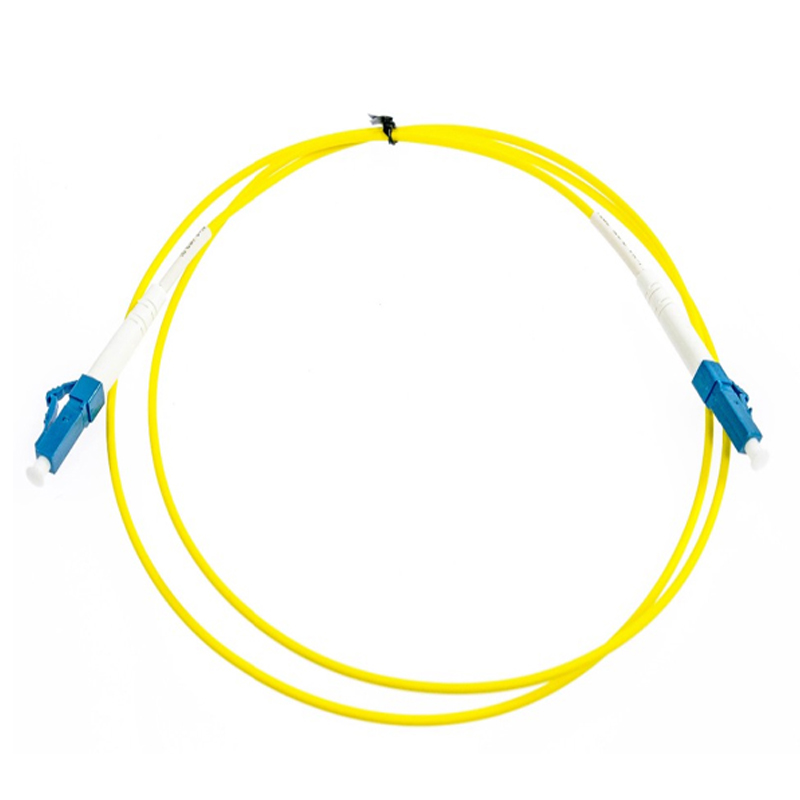

Simplex LC-LC Fiber Patch Cord

The fiber patch cord is completed by 1.8/2.0/3.0mm simplex LSZH/PVC indoor fiber optic cable with LC to LC fiber connector.

  • Product Model:
INQUIRY
Local area networks, including FTTH and FTTD.
CATC system.
Telecommunication networks.
Data processing networks.
Low insertion loss and high return loss.
High reliability and stability.
High tensile and bending performance.

Description



- Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
- Ferrule End-face: PC, UPC, APC
- Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
- Cable Quantity: Simplex, duplex or customized
- Cable Diameter: 3.0mm, 2.0mm, 0.9mm
- Cable Length: 1, 2, 3 meter or customized
- Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum





Cable construction details

No. of fiber 1F
Fiber type SM/MM
Tight buffer Material PVC/LSZH Color Yellow / Orange / Aqua
Diameter 0.9±0.05mm Thickness 0.32±0.05mm
Yarn Material Dupont kevlar yarn Color Yellow
Type 1000D Qty 3 strands
Out sheath Material PVC/LSZH Color Yellow / Orange / Aqua
Diameter 1.8/ 2.0 / 3.0 ±0.05mm

Cable mechanical performance

Tensile strength Long term(N) 40
Short term(N) 80
Crush load Long term(N) 100N/100mm
Short term(N) 500N/100mm
Bending radius Dynamic 20D
Static 10D
Temperature -20℃~70℃

Connector type

∙ Connector type: LC-LC

Attenuation parameters

Item Unit SM MM
PC UPC APC PC
Insertion loss dB ≤0.20
Max. Insertion loss dB ≤0.30
Repeat-ability dB ≤0.10
Changeability dB ≤0.20
Return loss dB ≥45 ≥50 ≥60 ≥35
Operation Temperature -40 ~ +85
Storage temperature -40 ~ +85
Fiber type um 9/125 50/125, 62.5/125
Core number Single or dual fiber
Durability >1000times
