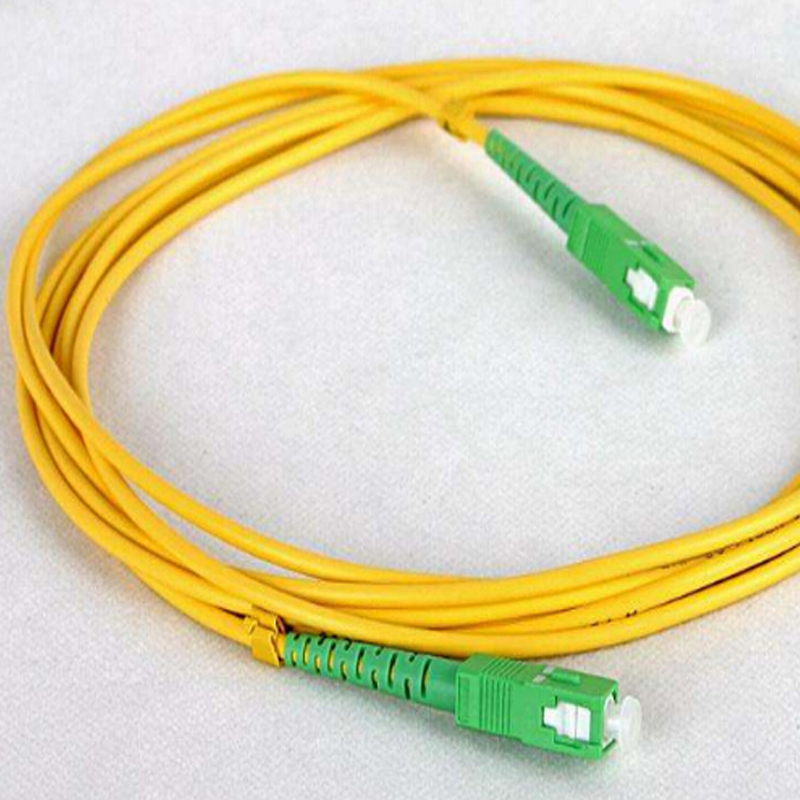

Simplex SC-SC Fiber Patch Cord

The fiber patch cord is completed by 1.8/2.0/3.0mm simplex LSZH/PVC indoor fiber optic cable with SC to SC fiber connector.

  • Product Model:
INQUIRY
Machine room
FTTH
Area network
Test equipment
National defence
FO sensor
Light communication system
Common antenna TV system
Low insertion loss and high return loss.
High reliability and stability.
High tensile and bending performance.

Description



- Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
- Ferrule End-face: PC, UPC, APC
- Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
- Cable Quantity: Simplex, duplex or customized
- Cable Diameter: 3.0mm, 2.0mm, 0.9mm
- Cable Length: 1, 2, 3 meter or customized
- Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum





Connector type

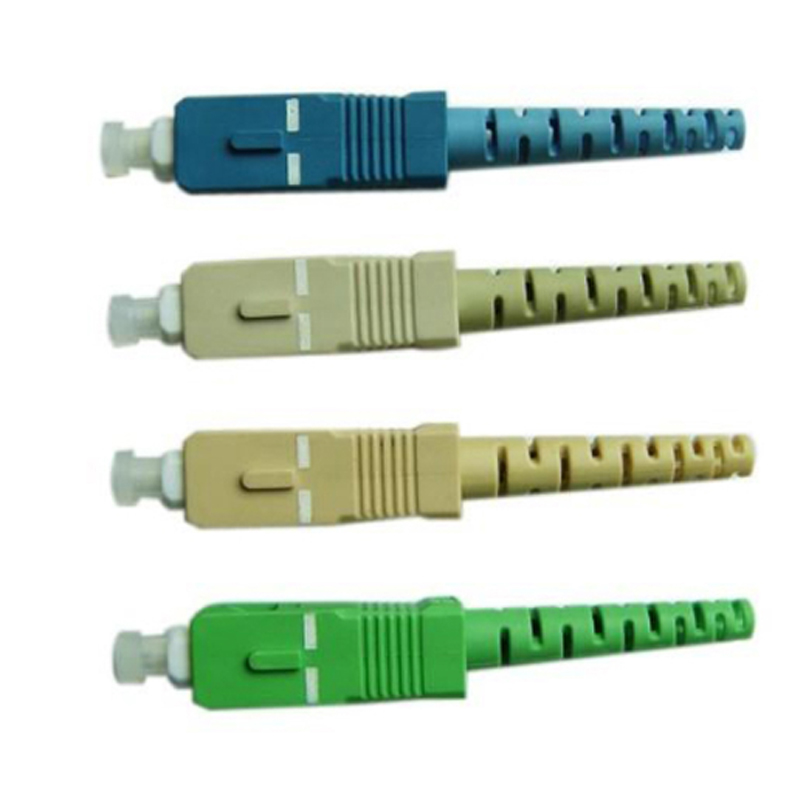

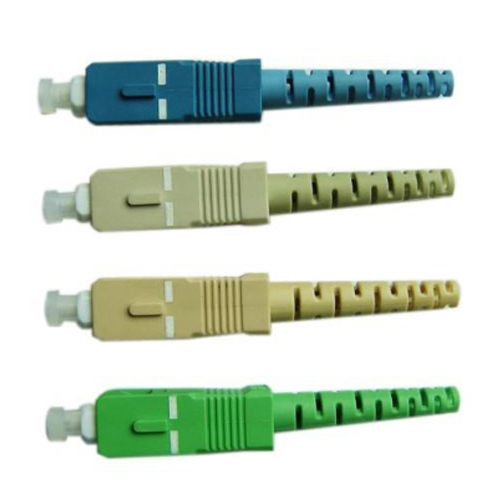

∙ Connector type: SC-SC

Attenuation parameters

Item Unit SM MM
PC UPC APC PC
Insertion loss dB ≤0.20
Max. Insertion loss dB ≤0.30
Repeat-ability dB ≤0.10
Changeability dB ≤0.20
Return loss dB ≥45 ≥50 ≥60 ≥35
Operation Temperature -40 ~ +85
Storage temperature -40 ~ +85
Fiber type um 9/125 50/125, 62.5/125
Core number Single or dual fiber
Durability >1000times
