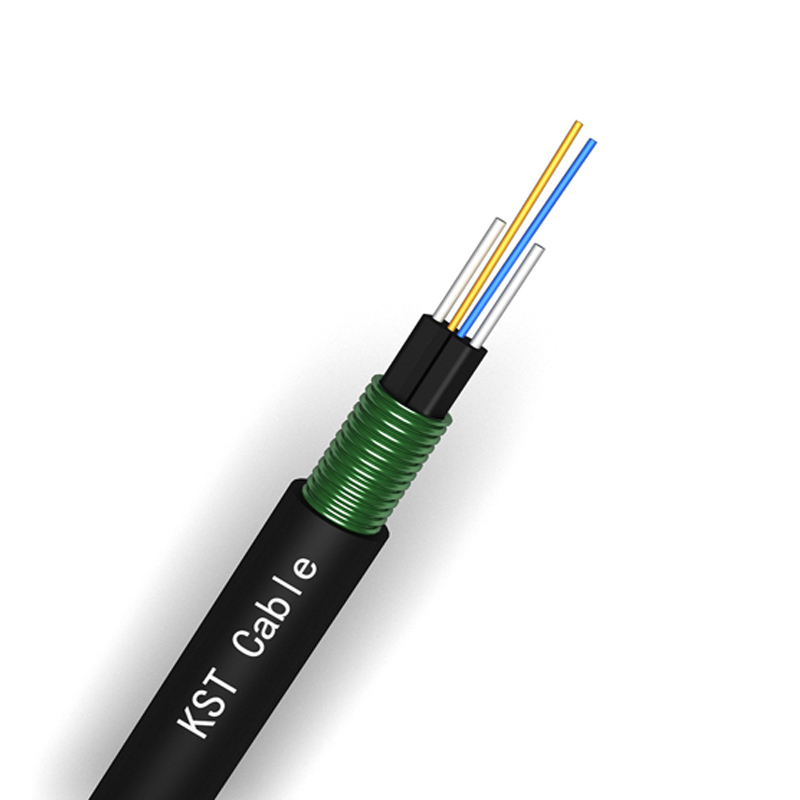

Duct installation Round FTTH fiber optic cable with steel tape armored
Bow-type FTTH put in side with 2 KFRP, the optical fiber unit positioned in the centre. Two parallel strength member are placed at the two sides and have aramid yarn to protect the inside FTTH, ourside sheath is PE.
2.Suitable for aerial and duct drop installation
3.Long distance and local area network communication.
· Anti-UV charateristics meet the requirements of relevant standards
· The mechanical charateristics meet the requirements of relevant standards
· Big capacity data transmission
· Meet various requirements of market and clients
Cable construction details
|
Items |
Description |
|
|
Number of fiber |
1core/2cores/4core |
|
|
Fiber type |
G657A2 |
|
|
Strength member 1 |
material |
KFRP |
|
diameter |
2*0.5mm |
|
|
Strength member 2 |
material |
FRP |
|
diameter |
2*0.8mm |
|
|
Inner sheath |
material |
LSZH |
|
diameter |
1.8±0.2mm |
|
|
Color |
Black |
|
|
Outer sheath |
material |
PE |
|
diameter |
≥1.0mm |
|
|
Color |
Black |
|
|
Aramid yarn |
Kevlar yarn |
|
|
Inside Cable size (Height * width) |
2.0(±0.1) mm × 3.0(±0.2)mm |
|
|
Whole Cable sheath |
6.5±0.2mm |
|
|
Cable weight |
32KG±1KG |
|
6. Standard color of fiber and tube
The color of the individual fibers, shall be in accordance with the table as below:
|
2core Standard Colour Identification |
||
|
No. |
1 |
2 |
|
Color |
Blue |
Orange |
4core
|
4core Standard Colour Identification |
|||||
|
No. |
1 |
2 |
3 |
4 |
|
|
Color |
Blue |
Orange |
Green |
Brown |
|
7. Cable Mechanical characteristic
|
Items |
Description |
|
|
Installation Temperature range |
-20--+60℃ |
|
|
Operation and transport temperature |
-40-+70℃ |
|
|
Min Bending Radius(mm) |
Long term |
15D |
|
short term |
30D |
|
|
Allowable Tensile Strength(N) |
Long term |
500 |
|
short term |
1000 |
|
|
Crush Load (N/100mm) |
Long term |
500 |
|
short term |
1000 |
|
|
Recommended Span (m) |
70 |
|
|
Installation sag |
1.5% |
|
|
Max. Wind Speed (m/s) |
25 |
|
|
Average Wind Speed (m/s) |
10 |
|
Fiber characteristics
|
Fiber style |
Unit |
SM G652D |
SM G657A1 |
SM G657A2 |
||
|
condition |
nm |
1310/1550 |
1310/1550 |
1310/1550 |
||
|
attenuation |
dB/km |
≤0.36/0.23 |
≤3.5/0.21 |
≤3.5/0.21 |
||
|
Dispersion |
1310nm |
Ps/(nm*km) |
≤18 |
≤18 |
≤18 |
|
|
1550nm |
Ps/(nm*km) |
≤22 |
≤22 |
≤22 |
||
|
Zero dispersion wavelength |
nm |
1312±10 |
1312±10 |
1300-1324 |
||
|
Zero dispersion slope |
ps/(nm²×Km) |
≤0.091 |
≤0.090 |
≤0.092 |
||
|
PMD Maximum Individual Fiber |
[ps/√km] |
≤0.2 |
≤0.2 |
≤0.2 |
||
|
PMD Design Link Value |
ps/(nm²×Km) |
≤0.08 |
≤0.08 |
≤0.08 |
||
|
Fiber cutoff wavelength λc |
nm |
≧1180,≤1330 |
≧1180,≤1330 |
≧1180,≤1330 |
||
|
Cable cutoff wavelength λcc |
nm |
≤1260 |
..... |
..... |
||
|
MFD |
1310nm |
um |
9.2±0.4 |
9.0±0.4 |
9.8±0.4 |
|
|
1550nm |
um |
10.4±0.8 |
10.1±0.5 |
9.8±0.5 |
||
|
Step(mean of bidirectional measurement) |
dB |
≤0.05 |
≤0.05 |
≤0.05 |
||
|
Irregularities over fiber length and point discontinuity |
dB |
≤0.05 |
≤0.05 |
≤0.05 |
||
|
Difference backscatter coefficient |
dB/km |
≤0.03 |
≤0.03 |
≤0.03 |
||
|
Attenuation uniformity |
dB/km |
≤0.01 |
≤0.01 |
≤0.01 |
||
|
Cladding diameter |
um |
125.0±0.1 |
124.8±0.1 |
124.8±0.1 |
||
|
Cladding non-circularity |
% |
≤1.0 |
≤0.7 |
≤0.7 |
||
|
Coating diameter |
um |
242±7 |
242±7 |
242±7 |
||
|
Coating/chaffinch concentrically error |
um |
≤12.0 |
≤12.0 |
≤12.0 |
||
|
Coating non circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
||
|
Core/cladding concentricity error |
um |
≤0.6 |
≤0.5 |
≤0.5 |
||
|
Curl(radius) |
um |
≥4 |
≥4 |
≥4 |
||
|
Fiber style |
Unit |
SM G652D |
SM G657A1 |
SM G657A2 |
||
|
condition |
nm |
1310/1550 |
1310/1550 |
1310/1550 |
||
|
attenuation |
dB/km |
≤0.36/0.23 |
≤3.5/0.21 |
≤3.5/0.21 |
||
|
Dispersion |
1310nm |
Ps/(nm*km) |
≤18 |
≤18 |
≤18 |
|
|
1550nm |
Ps/(nm*km) |
≤22 |
≤22 |
≤22 |
||
|
Zero dispersion wavelength |
nm |
1312±10 |
1312±10 |
1300-1324 |
||
|
Zero dispersion slope |
ps/(nm²×Km) |
≤0.091 |
≤0.090 |
≤0.092 |
||
|
PMD Maximum Individual Fiber |
[ps/√km] |
≤0.2 |
≤0.2 |
≤0.2 |
||
|
PMD Design Link Value |
ps/(nm²×Km) |
≤0.08 |
≤0.08 |
≤0.08 |
||
|
Fiber cutoff wavelength λc |
nm |
≧1180,≤1330 |
≧1180,≤1330 |
≧1180,≤1330 |
||
|
Cable cutoff wavelength λcc |
nm |
≤1260 |
..... |
..... |
||
|
MFD |
1310nm |
um |
9.2±0.4 |
9.0±0.4 |
9.8±0.4 |
|
|
1550nm |
um |
10.4±0.8 |
10.1±0.5 |
9.8±0.5 |
||
|
Step(mean of bidirectional measurement) |
dB |
≤0.05 |
≤0.05 |
≤0.05 |
||
|
Irregularities over fiber length and point discontinuity |
dB |
≤0.05 |
≤0.05 |
≤0.05 |
||
|
Difference backscatter coefficient |
dB/km |
≤0.03 |
≤0.03 |
≤0.03 |
||
|
Attenuation uniformity |
dB/km |
≤0.01 |
≤0.01 |
≤0.01 |
||
|
Cladding diameter |
um |
125.0±0.1 |
124.8±0.1 |
124.8±0.1 |
||
|
Cladding non-circularity |
% |
≤1.0 |
≤0.7 |
≤0.7 |
||
|
Coating diameter |
um |
242±7 |
242±7 |
242±7 |
||
|
Coating/chaffinch concentrically error |
um |
≤12.0 |
≤12.0 |
≤12.0 |
||
|
Coating non circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
||
|
Core/cladding concentricity error |
um |
≤0.6 |
≤0.5 |
≤0.5 |
||
|
Curl(radius) |
um |
≥4 |
≥4 |
≥4 |
||
