All-purpose Breakout indoor cable (GJFPV 12-144cores)

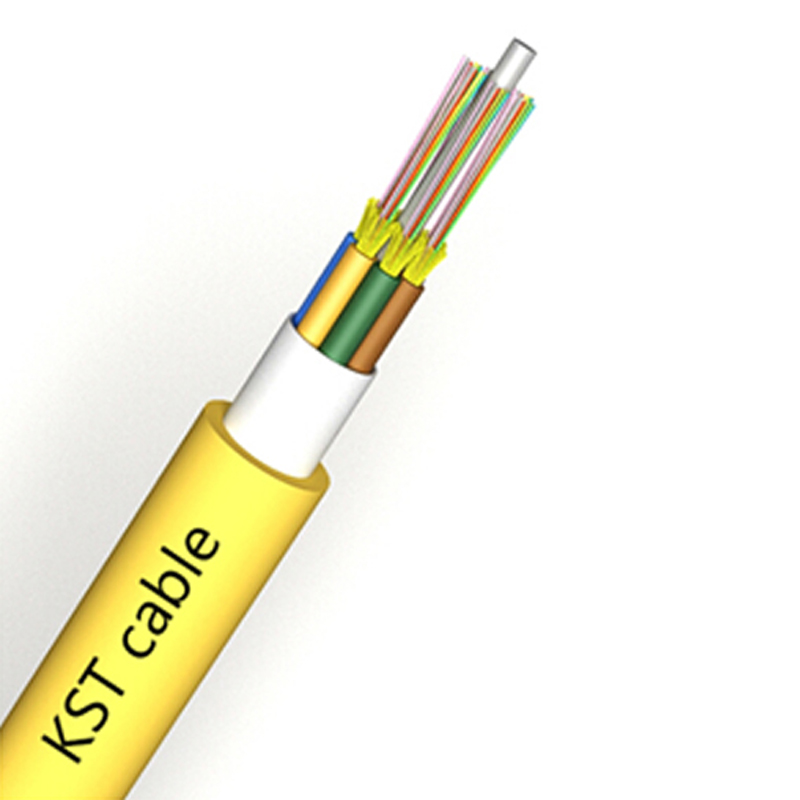

Multi Purpose Breakout cable uses simple cable (Φ900μm tight buffer fiber, aramid yarn as strength member) as subunit. A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low Smoke, Zero halogen, Flame-retardant) jacket.

  • Product Model：GJFPV
INQUIRY
ApplicationCharacteristicsTechnical Parameters
Indoor any purpose cable distribution, Backbone distribution cable in a building.
· Stranded non-metallic strength member structure ensure the cable endure larger tensile strength
· The outer jacket material have many advantages such as anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
· All dielectric structure protect it from electromagnetic influence.
· Scientific design with serious processing art.

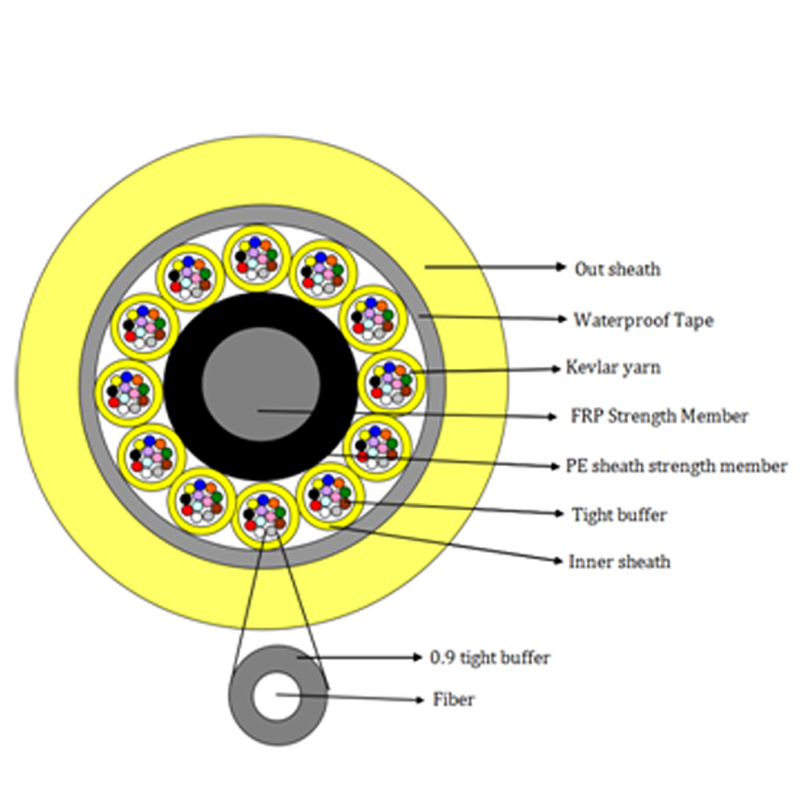

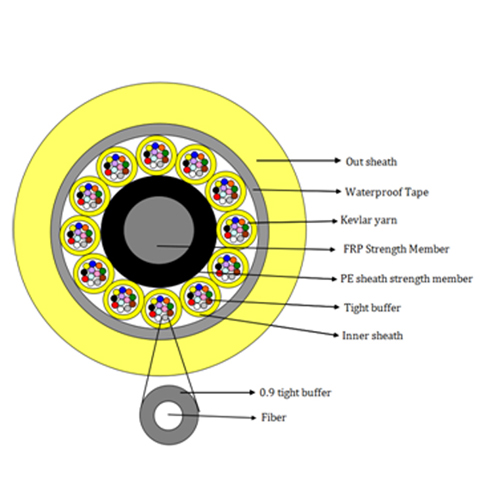

 Cable construction details

Number of fiber  12-144cores
Moisture Barrier Water blocking system
Fiber type OS1 OS2,G657A,G657B,OM1,OM2, OM3,OM4
Central strength member Material FPR +PE
Diameter of FRP 2.0mm
Diameter of FRP with PE 16mm
Break out cable Inner sheath material PVC/LSZH/OFNP
Inner sheath thickness 0.7mm
Inner cable diameter 5.5mm~5.8mm
Strenght member Kevlar yarn
Color of inner sheat yellow
 No. of Ф0.9 tight buffer
per inner cable		 12
Outer sheath  material  PVC/LSZH/PE/OFNP
Thickness 1.8±0.2mm



Standard color of fiber

Standard tight buffer Color Identification
No. 1 2 3 4 5 6
Color Blue Orange Green Brown grey White
No. 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua



Cable Mechanical characteristic

Items  Cable diameter Weight
144 cores 28±2mm 597±10kg/km
Installation Temperature range（℃） -15+60
Operation and transport temperature（℃） -40+70
Min Bending Radius(mm) Long term  10D
Min Bending
Radius(mm)		 Short term 20D
Min allowable
Tensile Strength(N)		 Long term  500
Min allowable
Tensile Strength(N)		 Short term 1500
Crush Load (N/100mm) Long term 600
Crush Load (N/100mm) short term 1500



Fiber characteristic

Fiber style Unit SM
G652		 SM
G652D		 MM
50/125		 MM
62.5/125		 MM
OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤ ≤ ≤ ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ---- 　
Bandwith 850nm MHZ.KM ---- ---- ≧400  ≧160  Bandwith
1300nm MHZ.KM ---- ---- ≧800  ≧500 　
Zero dispersion wavelength nm 1300-1324 ≧1302,
≤1322		 ---- ---- ≧ 1295,
≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr 　 ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*k
m)		 ≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm ≧ 1180,
≤1330		 ≧1180,
≤1330		 ---- ---- ----
Cable sutoff
wavelength λcc		 nm ≤1260 ≤1260 ---- ---- ----
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical
Aperture(NA)		 　 ---- ---- 0.200+/
-0.015		 0.275+/-0.
015		 0.200+/-0
.015
Step(mean of bidirectional
measurement)		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber
length and point		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10

Dicontinuity
Difference backscatter
coefficient		 dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
Attenuation uniformity dB/km ≤0.01 ≤0.01 　 　 　
Core dimater um 　 　 50+/-1.0 62.5+/-2.5 50+/-1.0
Cladding diameter um 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242+/-7 242+/-7 242+/-7 242+/-7 242+/-7
Coating/chaffinch
concentrically error		 um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding conentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5
Curl(radius) um ≤4 ≤4 ---- ---- ----



Package

1.Packing material: Wooden drum
2.Packing length: standard length of cable shall be 2 km. Other cable length is also availabler
if required by custome



Cable marking and cable reel marking

The cable sheath shall be marked with white characters according to customer's requirement.kst.jpg
