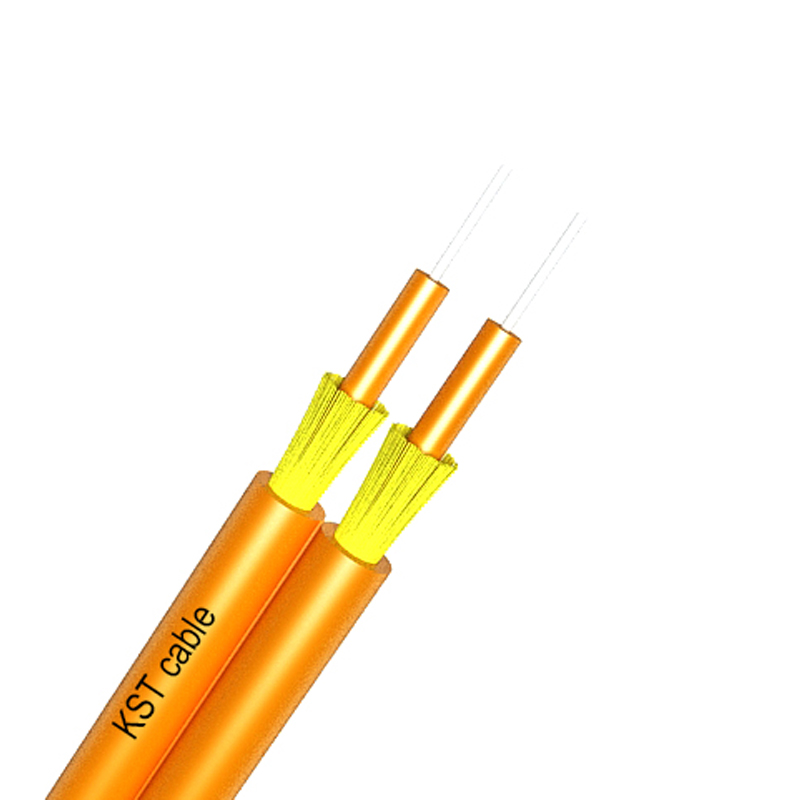

2.0mm / 3.0mm Duplex Indoor Fiber Optic Cable
Duplex zipcord cable use 900μm tight buffer fiber as optical communication medium. The tight buffer fiber wrapped, and aramid yarn as strength member units, then the cable is completed with a layer of LSZH jacket as out sheath .
· Adopted to indoor distribution..
· As pigtail of communication equipment.
· Suitable for communication equipment served.
· Can be installed conveniently.
· As pigtail of communication equipment.
· Suitable for communication equipment served.
· Can be installed conveniently.
· Hight strength kevlar yarn member.
· High quality tight buffered or loose tube.
· Soft and easy to strip.
· Round construction.
· High quality tight buffered or loose tube.
· Soft and easy to strip.
· Round construction.

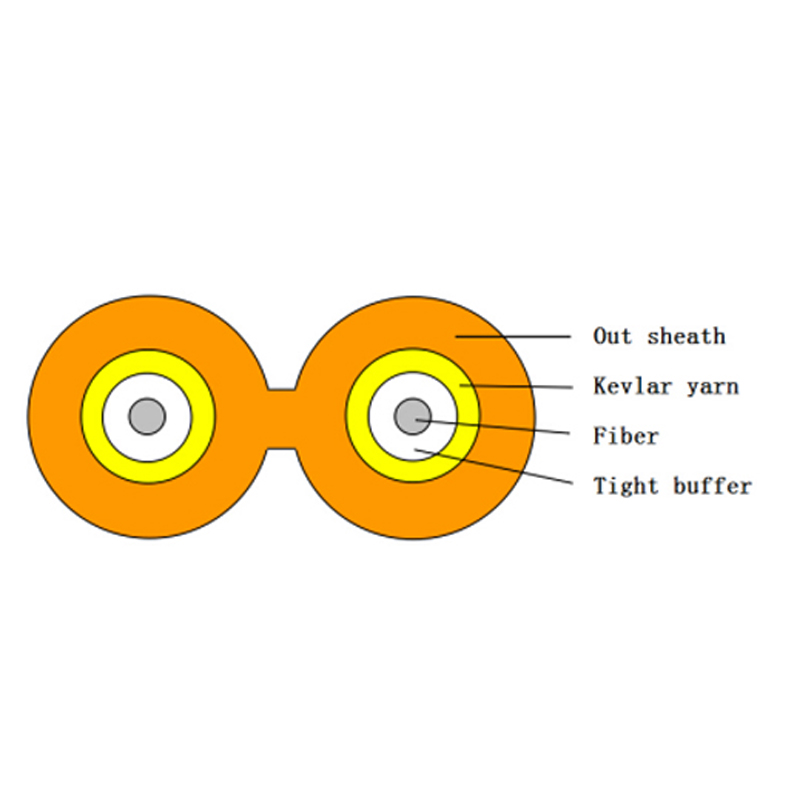

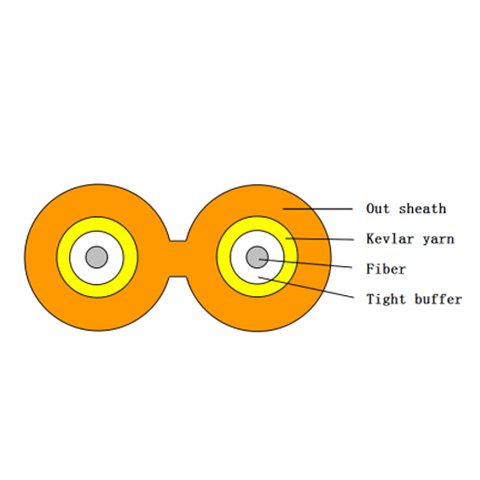

Cable construction details
| No. of fiber | 2F | ||||||
| SM fiber | Fiber type | Single mode | Concentricity error | ≤0.5um | |||
| MFD | 8.6～9.8um | Cladding non-circularity | ≤0.7% | ||||
| Cladding diameter | 125±1um | Fiber color | white and blue | ||||
| Tight buffer | Material | PVC | Color | white | |||
| Diameter | 0.9±0.05mm | Thickness | 0.32±0.05mm | ||||
| Yarn | Material | Kevlar yarn | Color | yellow | |||
| Type | 1000D | Qty | 3 strands/unit | ||||
| 4 strands/unit | |||||||
| Out sheath | Material | LSZH | Color | yellow | |||
| Diameter | 1.9±0.05mmx3.9±0.1 mm | Thickness | 0.35±0.05mm | ||||
| 2.9±0.05mmx5.9±0.1 mm | 0.45±0.05mm | ||||||
| Gross weight | 8.5±2kg/km (2.0mm) | ||||||
| 15±3kg/km (3.0mm) | |||||||
Cable mechanical and environment characteristics
| Tensile strength | Long term（N） | 90 (2.0mm) | 120 (3.0mm) | ||||
| Short term（N） | 150 (2.0mm) | 225 (3.0mm) | |||||
| Crush load | Long term（N） | 100N/100mm | |||||
| Short term（N） | 500N/100mm | ||||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Temperature | -20℃～70℃ | ||||||
Package
Packing material: Wooden drum.
Packing length: 1km per drum or customization.
