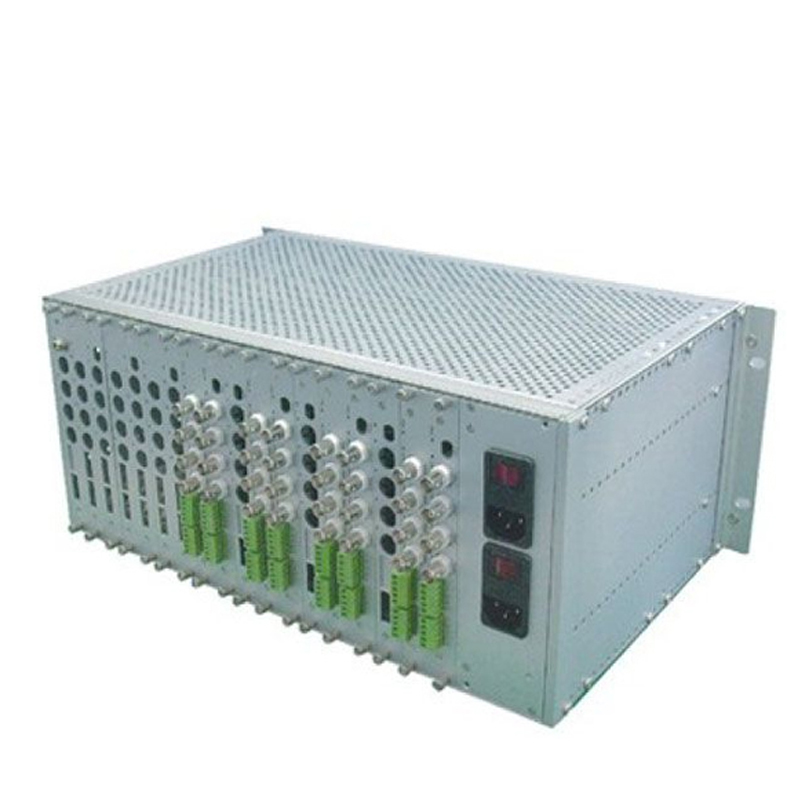

32 Channel Fiber Optic Video Transceiver

Video

Channels: 32 simplex
Input/Output Signal: 1.0 Vpk – pk
Bandwidth: 6.5 MHz
Video Sampling Rate:15 MHz
Signal-to-Noise Ratio: >58 dB
Input/Output Impedance: 75 ohms
Differential Phase: 0.7°
Differential Gain: <1%

  • Product Model：
INQUIRY
ApplicationCharacteristicsTechnical Parameters
☆. Thirty-two Channels Un-compressed CCTV video over one fiber.
☆. 8-bit video processing, Compatible with NTSC, PAL, or SECAM CCTV, Instantaneous Transmission.
☆. One Channel Ethernet, Supports 10/100BASE-TX, IEEE Std.802.3.
☆. Digital multiplexing technology.
☆. Support analog Audio, RS-485/232 data, Contact closure and Ethernet over one single-mode fiber.

☆. 24-bit audio processing.

☆. Transparent transmission for multi protocol data formats.

☆. Using Wavelength Division Multiplexing(WDM)

Audio



Input Impedance: 47K ohms unbalanced

Output Impedance: 10K ohms unbalanced

Signal-to-Noise Ratio: >75 dB

Audio Sampling Rate: 58 kHz

Bandwidth: 20 Hz to 20 kHz



Data



Formats: RS-232 (3-wire),TTL,RS-422,RS-485(2-wire/4-wire)Transparent transmission for

Manchester,Biphase,SensorNet

Baud Rate: 0 kbps to 115.2 kbps

Bit Error Rate: <1.0E-9



Ethernet



10/100BASE-TX, CAT5 RJ-45,  IEEE Std. 802.3, Full Speed 10M/100M Ethernet duplex



Optical



Fiber Cable: Single mode

Optical Connector: FC

Emitter: FB or DFB

Wavelength: 1310 nm or 1550 nm

Transmission Distance can reach 100 Km



Environmental



Operating Temperature: -25°C to 75 °C

Maximum Humidity: 95% relative, Non-condensing

Mechanical

Dimensions: 440X225X132mm

Construction: Aluminum



Power Supply



Protection: Solid-state short circuit protection

External Power Supply, Input:100~240 V AC 50/60Hz  Output: 9 V DC, 4 A



Electromagnetic compatibility



EMC Directive 2004/108/EC

EN60950-1:2006



Order Information



HFV-D3240 R-E:32-channel video+4-channel bi-direction audio+1-channel backward data+1-channel Ethernet

HFV-D3244-E:32-channel video+4-channel bi-direction audio+4-channel bi-direction  data+1-channel Ethernet

HFV-D324R1-E:32-channel video+4-channel backward audio+1-channel bi-direction data+1-channel Ethernet

HFV-D324T1T-E:32-channel v
