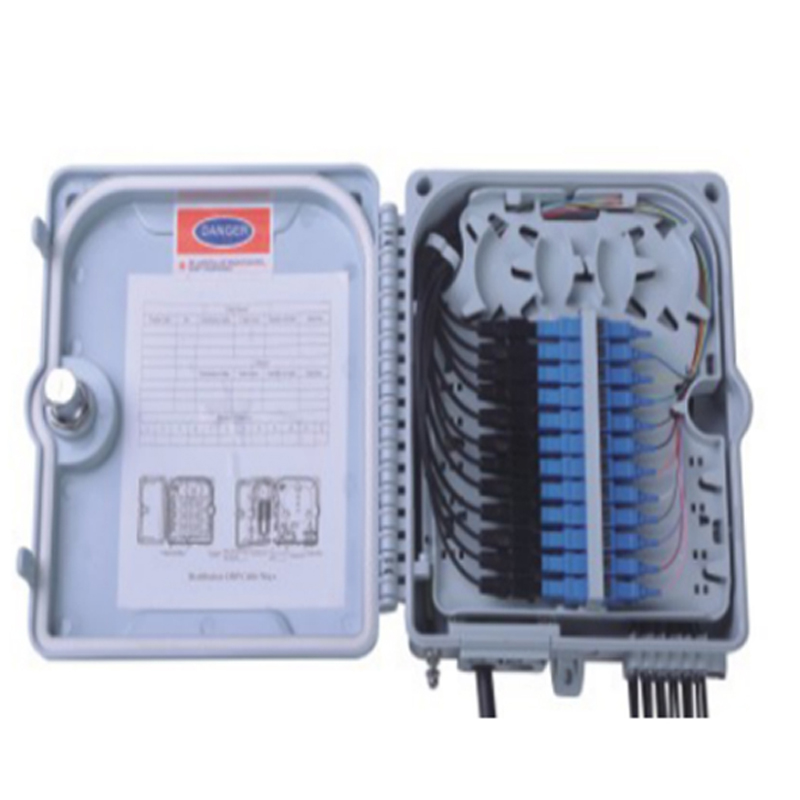

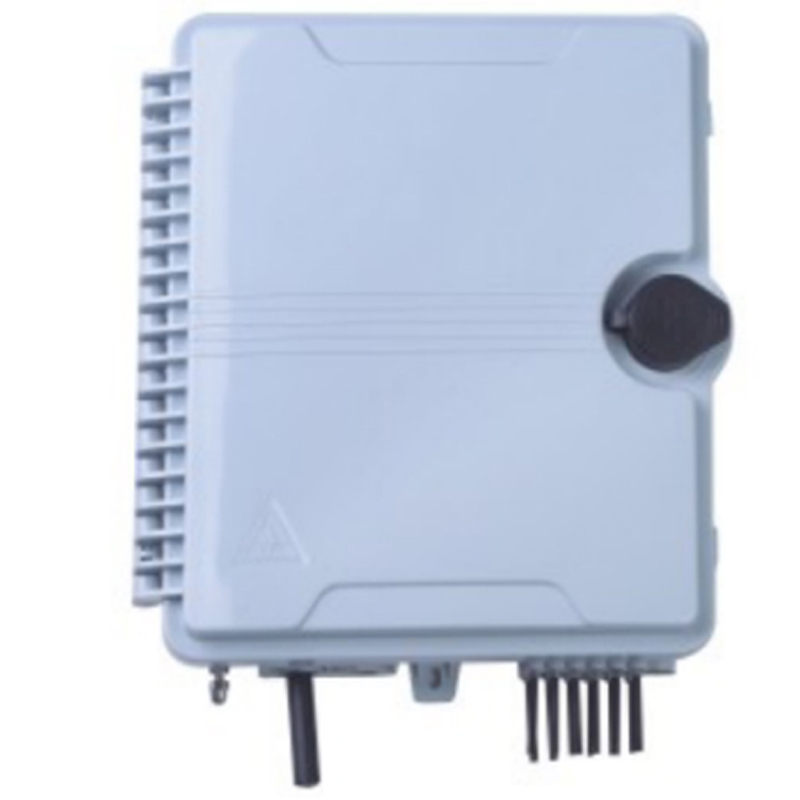

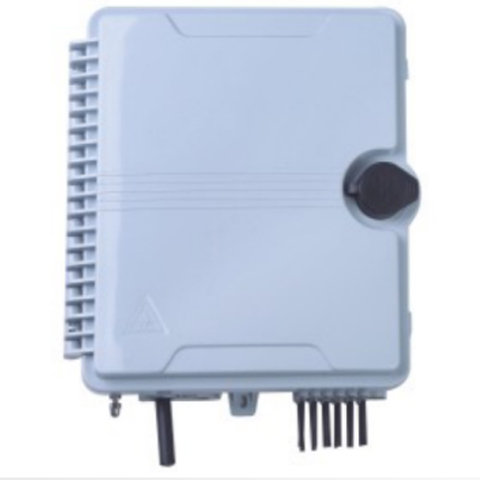

12 Core Outdoor FTTH Wall/Pole Mounted Fiber Optic Junction/Distribution Box

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

  • Product Model：
INQUIRY
ApplicationCharacteristicsTechnical Parameters
☆. Reliable fiber lead, grounding and perfect fix up

☆. Reliable pigtail fixes up and perfect protection

☆. Apply to extensive field

☆. Convenient for operations and maintenance
☆.The shell is high intensified & insulated material, thus having excellent mechanic performance

☆.Strength core and shell was insulated and with grounding lead

☆.Suitable for inserting installation of SC, FC, ST and LC adaptor

☆.Full accessories for convenient operationss

Specification:
　　1.  Environmental requirement
　　　　Working temperature：-40℃～+85℃
　　　　Relative humidity：≤85%（+30℃）
　　　Atmospheric pressure：70KPa～106Kpa
　　2.  Main technical data
　　　　Insertion loss：≤0.2dB
　　　　UPC return loss：≥50dB
　　　　APC return loss：≥60dB
　　　　Life of insertion and extraction：＞1000 times
　　3.  Thunder-proof technical data
　　　　The grounding device is isolated with the cabinet, isolation resistance is no less than 1000MΩ/500V（DC）；IR≥1000MΩ/500V
　　　　The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover；U≥3000V
