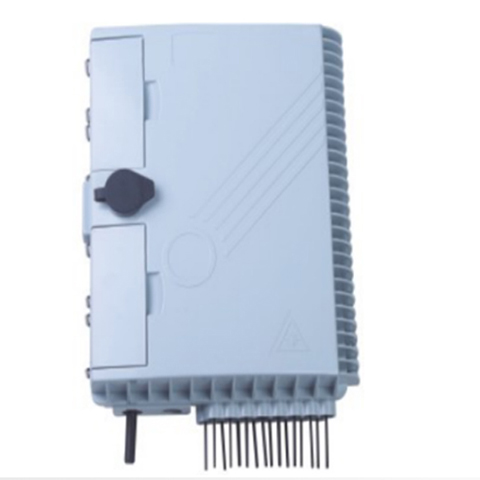

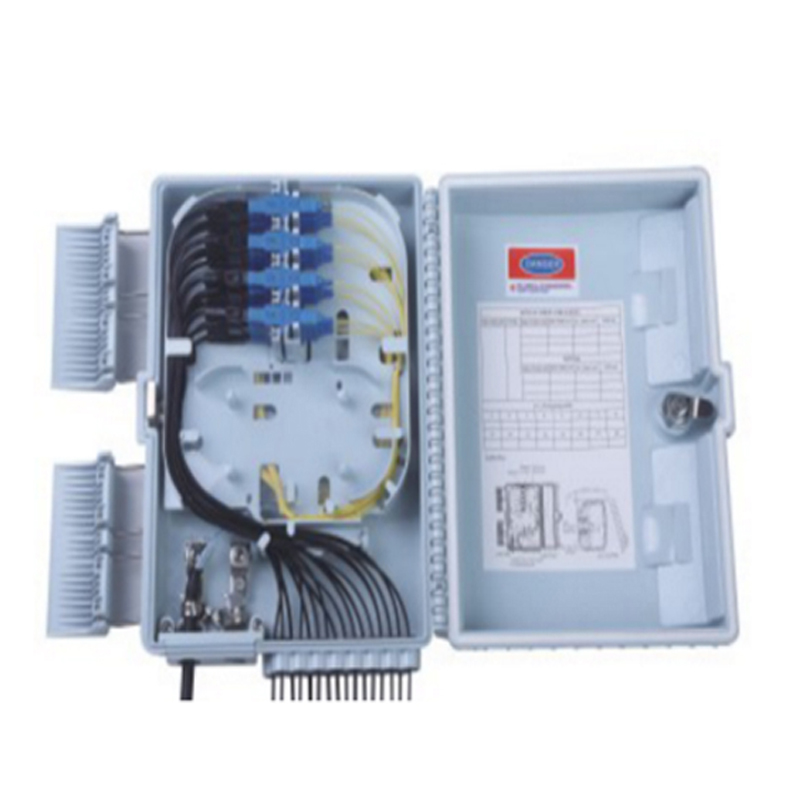

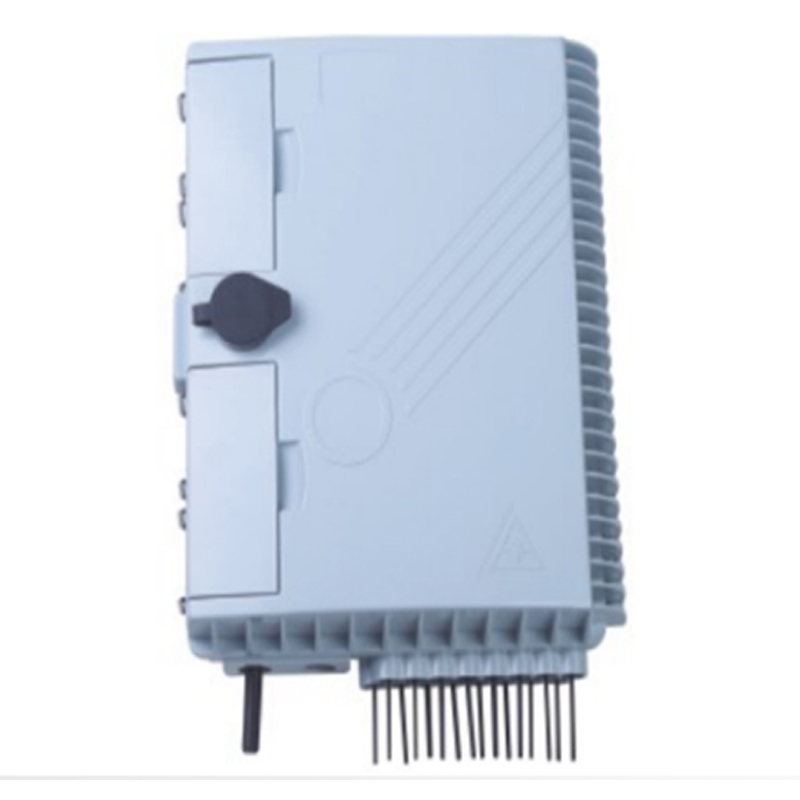

Supply 16 Port FAT FTTH Fiber Optic Plc splitter box with mini steel tube plc splitter terminal box

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

  • Product Model：
INQUIRY
ApplicationCharacteristicsTechnical Parameters
1. Widely used in FTTH access network.
2.Telecommunication Networks
3.CATV Networks Data communications Networks
4.Local Area Networks
☆.The shell is high intensified & insulated material, thus having excellent mechanic performance

☆.Strength core and shell was insulated and with grounding lead

☆.Suitable for inserting installation of SC, FC, ST and LC adaptor

☆.Full accessories for convenient operationss

　

Product Name
16 core fiber optic distribution box(termination box)
Shape
Total enclosed structure, be in nice shape
size
292mm(H)*218mm(W)*83mm(D)
Weight
1.4KG
Material
PC+ABS

Material characteristic
1.wet-proof, water-proof, dust-proof, protection level up to IP65
2.Construction-lightweight plastic offers strength
3.Resistance to chemical and U.V attack
4.Wall mounting or pole mounting.





Specification
Environmental Requirement
Main Technical Data
 Capacity
Working temperature
-40℃~+75℃
Insertion loss
≤0.2dB

1*16PLC splitter, 16 SC/LC adaptors
Relative humidity
≤85℃(+30℃)
UPC return loss
≥50dB
Atmospheric pressure
70KPa~106KPa
APC return loss
≥60dB
