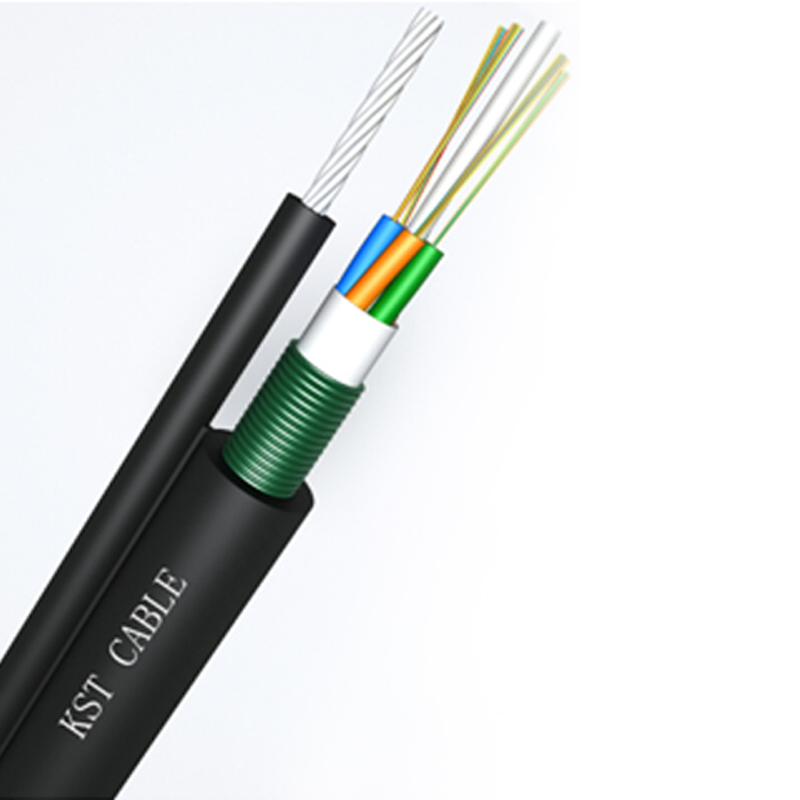

6-144 Core GYTC8S Figure 8 Self Supporting Fiber Optic Cable

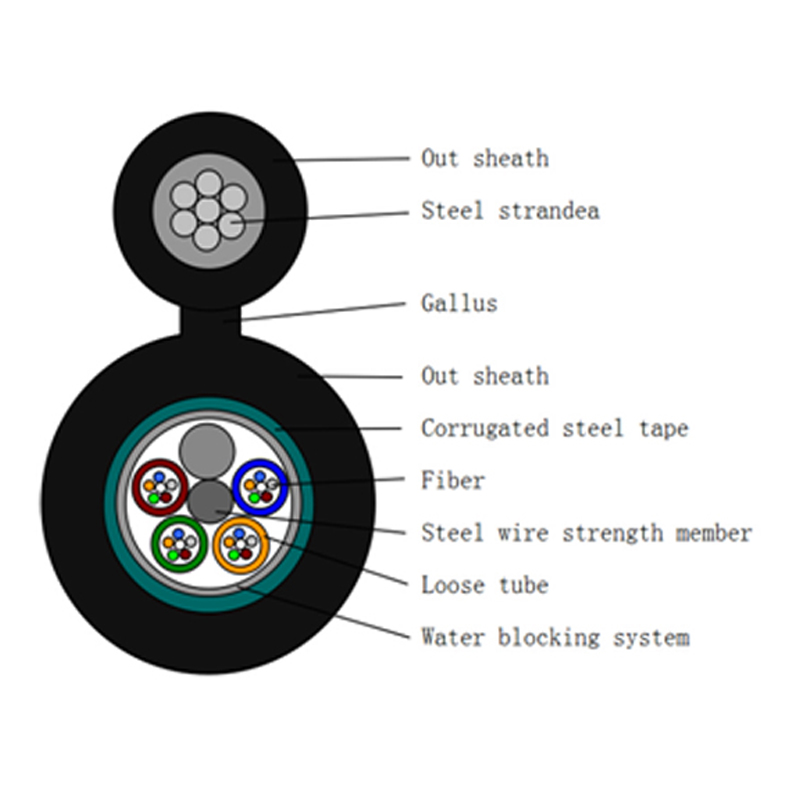

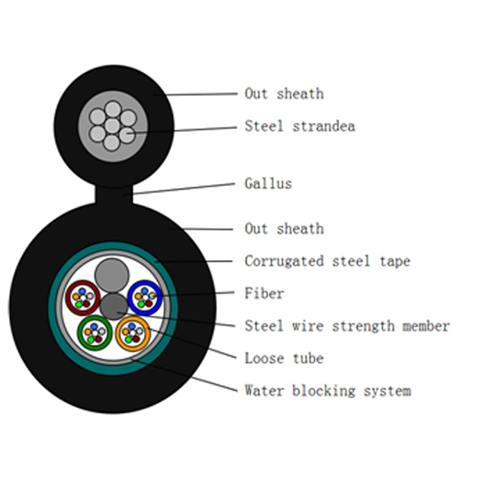

The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.

  • Product Model：GYTC8S
INQUIRY
ApplicationCharacteristicsTechnical Parameters
• Suitable for aerial, pipeline laying method.
• Adopted to outdoor distribution.
• Long distance and local area network communication.
• Good mechanical and temperature performance.
• High strength loose tube that is hydrolysis resistant.
• Special tube filling compound ensure a critical protection of fiber.
• Crush resistance and flexibility.
• PE sheath protects cable from ultraviolet radiation.

Cable construction details

No. of fibers 6 12 24 48 72 96 144
No. of tubes 1 1 2 4 6 8 12
fibers per tube 6 6 6 12 12 12 12
Filler Rod 4 3 1 1 0 0 0
 Tube diameter (±0.1mm) 2.0  2.0  2.0  2.0  2.0  2.0  2.0
Thickness of loose tube
(±0.05mm)		 0.3  0.3  0.3  0.3  0.3  0.3  0.3
Outer diameter (±0.5mm) 5.4X8.6
-15.0		 5.4X8.6
-15.0		 5.4X8.6
-15.0		 5.4X9.8
-16.5		 5.4X10.8
-17.5		 5.4X12.2
-19.0		 5.4X14.9
-22.0
Thickness of out diameter
(±0.1mm)		 1.6 1.6 1.6 1.6 1.6 1.7 1.7
Loose tube Material PBT  Color Standard spectrum
Water blocking system Material Water blocking tape / Filling gel
Armor Material Corrugated steel tape
Central strength member Material Steel wire Size 1.4mm(6-48)
2.0mm(72-144)
Mental strength member Material Stranded steel wire Size 1.0mm*7
Gallus Material PE size
（h*w）		 2.0*1.5mm
Outsheath Material PE Color Black

Cable mechanical and environment chararcteristics

Tensile strength Long term（N） 3000N
Short term（N） 7000N
Crush load Long term（N） 300N/100mm
Short term（N） 1000N/100mm
Bending radius Dynamic 20D
Static 10D
Installation Temperature -10℃～+60℃
Storage Temperature -40℃～+70℃

Fiber characteristics

Fiber type Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.24 ≤3.0/1.5 ≤3.0/1.5
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7

Package

Packing material: Wooden drum.

Packing length: 2km per drum or customization.
