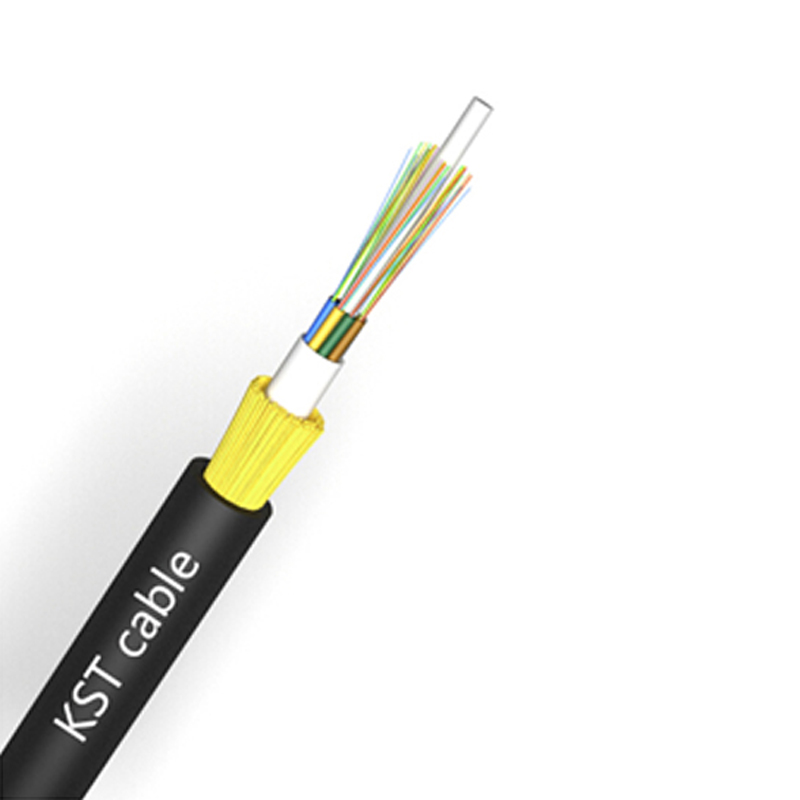

Single jecket dielectric fiber optic cable ADSS
The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube water-blocking material is applied to keep the cable compact and watertight. The cable is completed with a polyethylene (PE) sheath.
This specification covers the general requirements of single jacket ADSS dielectric Cable for aerial or duct.
· Good mechanical and temperature performance.
· High strength loose tube that is hydrolysis resistant.
· Special tube filling compound ensure a critical protection of fiber.
· Crush resistance and flexibility.
· Two parallel steel wires ensure tensile strength.
· Small diameter, light weight and friendly installation.
· High strength loose tube that is hydrolysis resistant.
· Special tube filling compound ensure a critical protection of fiber.
· Crush resistance and flexibility.
· Two parallel steel wires ensure tensile strength.
· Small diameter, light weight and friendly installation.

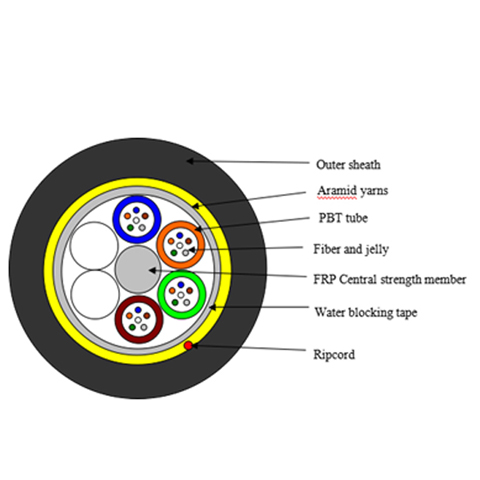

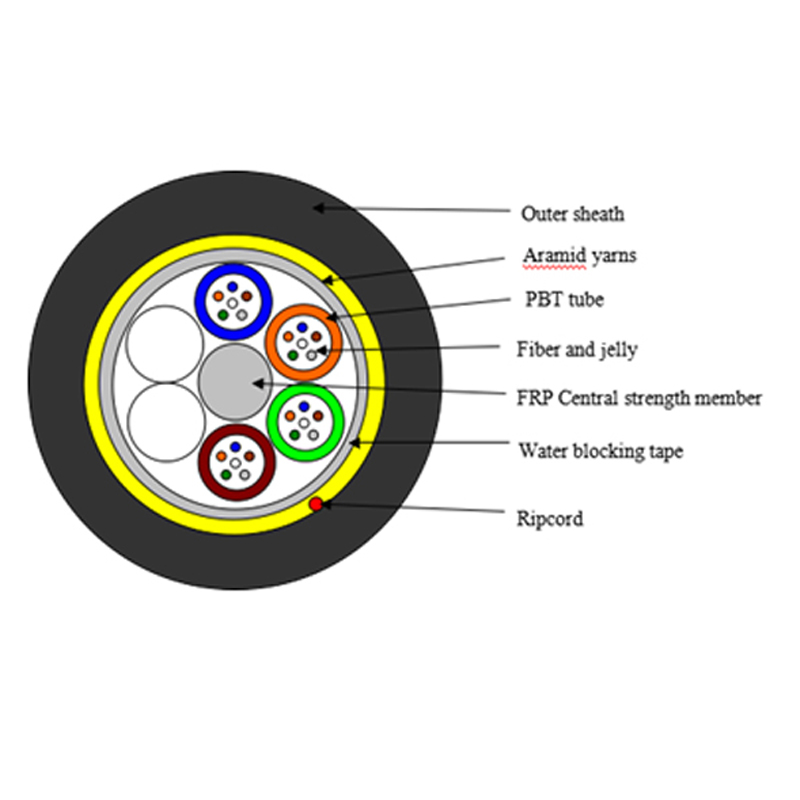

Cable construction details
| Number of fiber | 2-60core | |||||||
| Moisture Barrier | Water blocking Tape | |||||||
| Loose tube and Filler elements | material | PBT | ||||||
| diameter | 2.2mmФ+-0.2mm | |||||||
| Central strength member | material | FRP | ||||||
| size | 2.0mm+-0.2mm | |||||||
| Yarn | Dupont Kelver yarn ( 6pcs) | |||||||
| Span | 50m~60m | |||||||
| Overall cable diameter | 15.0mm+-0.5mm | |||||||
| Loose tube | material | PBT | ||||||
| diameter | Ф2.2(outer/inner) | |||||||
| Cable weight per km | 75kg/km | |||||||
| Outer sheath | material | PE | ||||||
| diameter | 1.8±0.2mm | |||||||
| Cable weight per km | 75kg/km | |||||||
Fiber color
| Number of fiber per tube 8cores |
1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White | |
| 7 | 8 | 9 | 10 | 11 | 12 | |
| Red | Black | Yellow | Violet | Pink | Aqua | |
| Color 13~24 will be marked with a black tracer.For black color no need marked black tracer, will use nature color instead. | ||||||
Cable Mechanical characteristic
| Items | Description | ||||||
| Installation temperature（℃） |
-15+60 | ||||||
| Operation temperature （℃） |
-40+70 | ||||||
| Min Bending Radius(mm | Long term | 10D | |||||
| short term | 20D | ||||||
| Allowable Tensile Strength(N) | Long term | 600 | |||||
| short term | 1500 | ||||||
| Crush Load(N/100mm) | Long term | 300 | |||||
| short term | 1000 | ||||||
Fiber characteristic
| Fiber style | Unit | SM G652 |
SM G652D |
MM 50/125 |
MM 62.5/125 |
MM OM3-300 |
|
| condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 | |
| 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- | |||
| Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion |
| 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | ||
| Bandwith | 850nm | MHZ.KM | ---- | ---- | ≧400 | ≧160 | Bandwith |
| 1300nm | MHZ.KM | ---- | ---- | ≧800 | ≧500 | ||
| Zero dispersion wavelength | nm | 1300-1324 | ≧1302, ≤1322 |
---- | ---- | ≧ 1295, ≤1320 |
|
| Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- | |
| PMD Maximum Individual Fibr | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*k m) |
≤0.12 | ≤0.08 | ---- | ---- | ---- | |
| Fibre cutoff wavelength λc | nm | ≧ 1180, ≤1330 |
≧1180, ≤1330 |
---- | ---- | ---- | |
| Cable sutoff wavelength λcc |
nm | ≤1260 | ≤1260 | ---- | ---- | ---- | |
| MFD | 1310nm | um | 9.2+/-0.4 | 9.2+/-0.4 | ---- | ---- | ---- |
| 1550nm | um | 10.4+/-0.8 | 10.4+/-0.8 | ---- | ---- | ---- | |
| Numerical Aperture(NA) |
---- | ---- | 0.200+/ -0.015 |
0.275+/-0. 015 |
0.200+/-0 .015 |
||
| Step(mean of bidirectional measurement) |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Irregularities over fiber length and point |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Dicontinuity | |||||||
| Difference backscatter coefficient |
dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 | |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | ||||
| Core dimater | um | 50+/-1.0 | 62.5+/-2.5 | 50+/-1.0 | |||
| Cladding diameter | um | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | |
| Coating diameter | um | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | |
| Coating/chaffinch concentrically error |
um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | |
| Core/cladding conentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 | |
| Curl(radius) | um | ≤4 | ≤4 | ---- | ---- | ---- | |
Package
| 1.Packing material: Wooden drum | |||||||
| 2.Packing length: standard length of cable shall be 2 km. Other cable length is also availabler | |||||||
| if required by custome |
Cable marking and cable reel marking
The cable sheath shall be marked with white characters according to customer's requirement.
