6 - 144 Core Air Blown Fiber Optic Cable

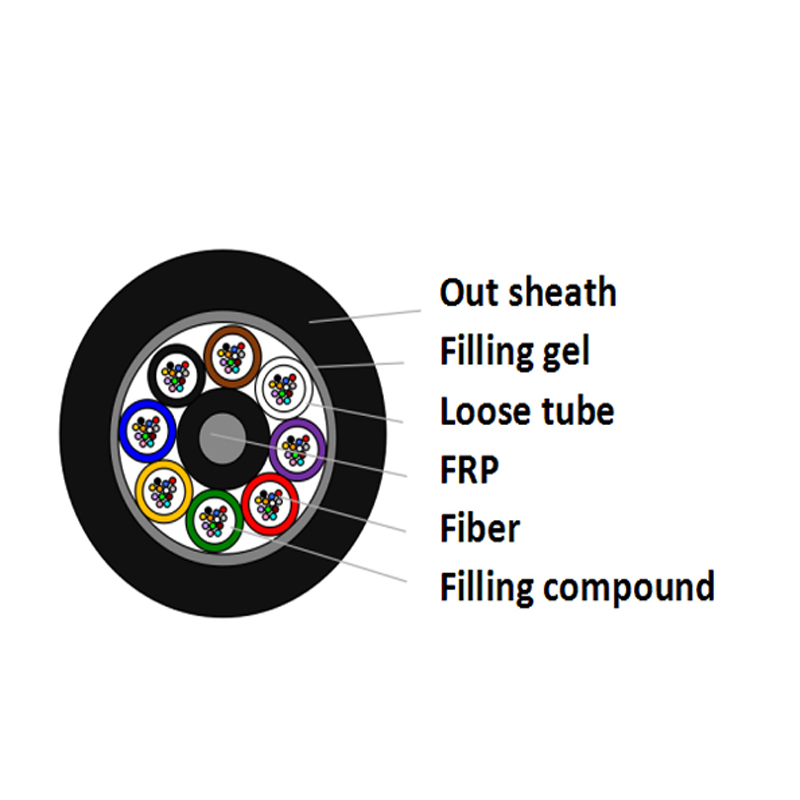

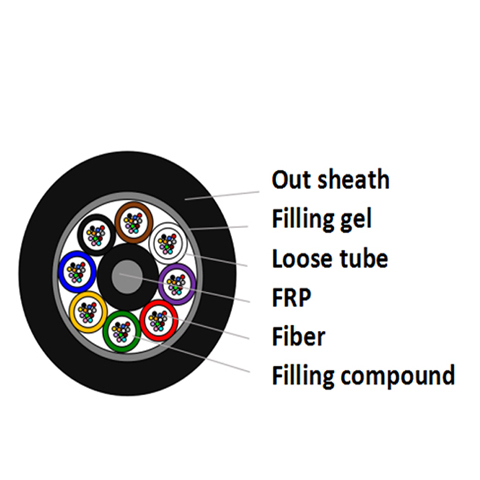

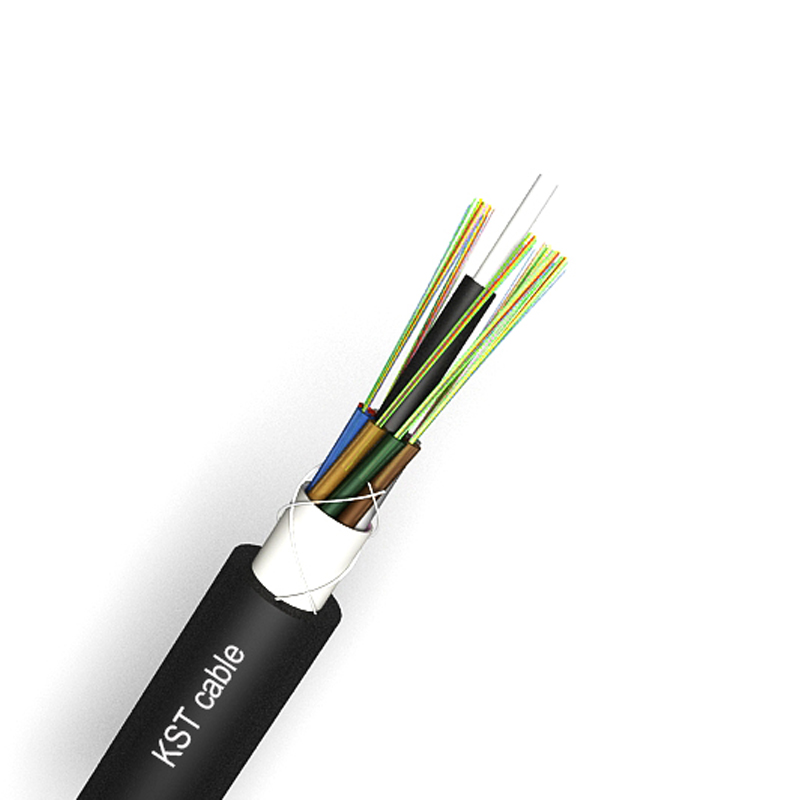

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) wrapped with a layer of PE locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable is completed with a PE sheath.
☆ Adopted to outdoor distribution.
☆ Adopted to trunk power transmission system.
☆ Access network and local network in high electromagnetic interfering places.
☆ Adopted to trunk power transmission system.
☆ Access network and local network in high electromagnetic interfering places.
☆ Good mechanical and temperature performance
☆ High strength looes tube that is hydrolysis resistant
☆ Special tube filling compound ensure a critical protection of fiber
☆ Crush resistance and flexibility
☆ Loose tube filling compound
☆ 100% cable core filling
☆ High strength looes tube that is hydrolysis resistant
☆ Special tube filling compound ensure a critical protection of fiber
☆ Crush resistance and flexibility
☆ Loose tube filling compound
☆ 100% cable core filling
Structure details
| No. of fibers | 6F | 12F | 24F | 36F | 48F | 72F | 96F | 144F |
| No. of tubes | 1 | 1 | 2 | 3 | 4 | 6 | 8 | 12 |
| fibers per tube | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Filler Rod | 5 | 5 | 4 | 3 | 2 | 0 | 0 | 0 |
| Tube diameter (±0.1mm) |
1.55 | 1.55 | 1.55 | 1.55 | 1.55 | 1.55 | 1.55 | 1.55 |
| Thickness of loose tube (±0.05mm) |
0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
| Out diameter (±0.5mm) | 5.7 | 5.7 | 5.7 | 5.7 | 5.7 | 5.7 | 6.7 | 8.8 |
| Thickness of out sheath (±0.1mm) |
0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Loose tube | Material | PBT | Color | Standard spectrum | ||||
| Central strength member | Material | FRP | Diameter | 1.5mm | ||||
| Layer material |
PE ( for 96F-144F only) | |||||||
| Water blcoking system | Material | Filling gel | ||||||
| Out sheath | Material | PE | Color | Black | ||||
Mechanical and environment performance
| Tensile strength | Long term（N） | 300N | ||||||
| Short term（N） | 800N | |||||||
| Crush load | Long term | 200N/100mm | ||||||
| Short term | 500N/100mm | |||||||
| Bending radius | Dynamic | 20D | ||||||
| Static | 10D | |||||||
| Storage Temperature | -20℃～+70℃ | |||||||
| Installation Temperature | -10℃～+60℃ | |||||||
Fiber Performance
| Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | ||||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | ||||
| Attenuation | dB/km | ≤0.36/0.22 | ≤3.0/1.0 | ≤3.0/1.0 | ||||
| Cladding diameter | um | 125±1 | 125±1 | 125±1 | ||||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ||||
| Coating diameter | um | 242±7 | 242±7 | 242±7 | ||||
8. Package
Packing material: Wooden drum.
Packing length: 2km per drum or customization.
