24 and 48 Core SM G652D Dielectric Loose Tube Fiber Optic Cable (GYFTY)

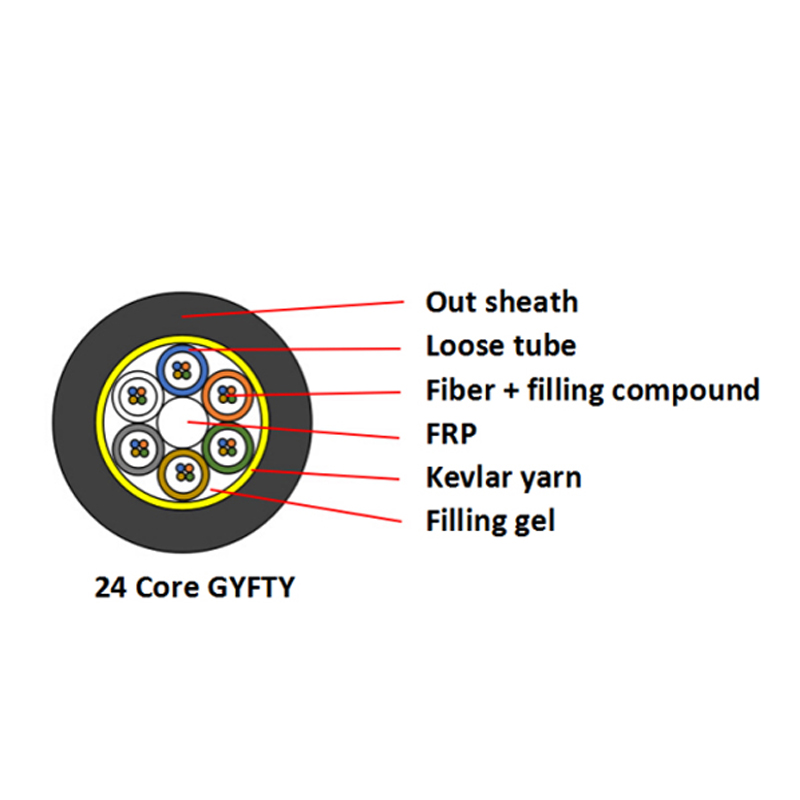

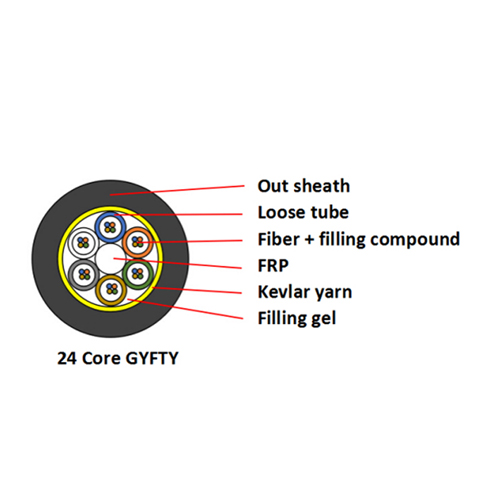

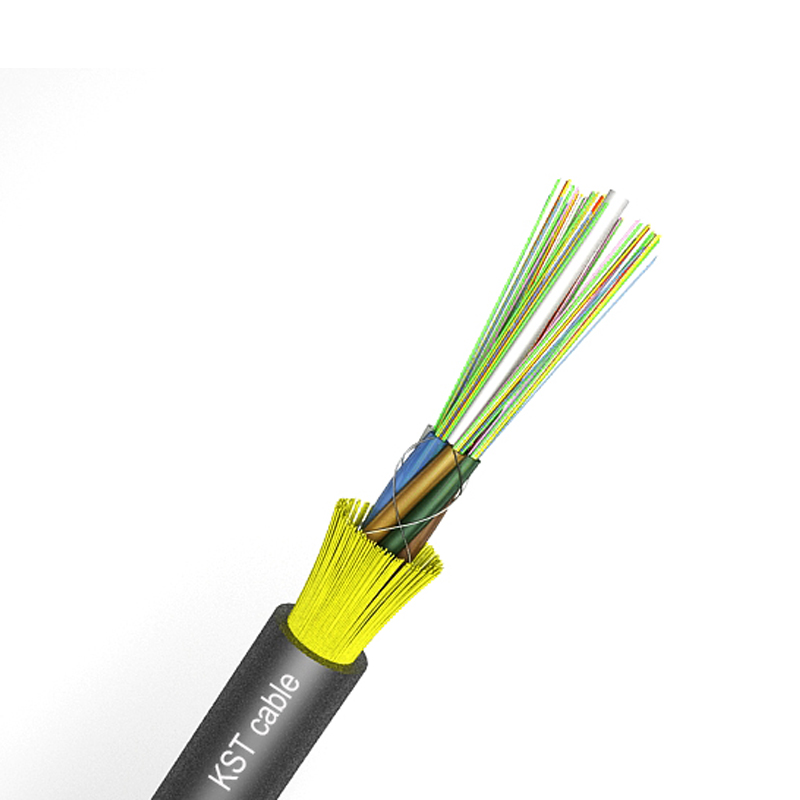

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a
water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is filled with filling gel to protect it from water ingress. The kevlar yarn surrounded the cable core as the reinforce strength member, then the cable is completed with a PE sheath.
☆ Adopted to trunk power transmission system.
☆ Access network and local network in high electromagnetic interfering places.
☆ High strength looes tube that is hydrolysis resistant
☆ Special tube filling compound ensure a critical protection of fiber
☆ Crush resistance and flexibility
☆ Loose tube filling compound
☆ 100% cable core filling
Structure details
No. of fiber
24F
48F
No. of tube
6
6
Fiber per tube
4
8
Nom. tube diameter
1.6mm±0.05mm
1.8mm±0.05mm
Nom. tube thickness
0.3mm±0.05mm
0.3mm±0.05mm
Loose tube
Material
PBT
Color
Standard spectrum
Central strength member
Material
FRP
Diameter
1.6mm (24F)
1.8mm (48F)
Tube filling
Material
Filling compound
Water blcoking system
Material
Filling gel
Reinforce strength member
Material
Dupont kevlar yarn
Type
800D*4 (24F)
800D*8 (48)
Out sheath
Material
HDPE
Color
Black
Diameter
7.0±0.5mm (24F)
Thickness
1.1±0.1mm
8±0.5mm (48F)
1.3±0.1mm
Mechanical and environment performance
Tensile strength
Long term（N）
600N
Short term（N）
1200N (24F)
2000N (48F)
Crush load
Long term (N/100mm)
300N/100mm
Short term (N/100mm)
1000N/100mm
Bending radius
Dynamic (mm)
20D
Static (mm)
10D
Temperature
-20℃～+70℃
Fiber Performance
Fiber style
Unit
SM G652D
MM 50/125
MM 62.5/125
Condition
mm
1310/1550
850/1300
850/1300
Attenuation
dB/km
≤0.36/0.22
≤3.0/1.0
≤3.0/1.0
Cladding diameter
um
125±1
125±1
125±1
Cladding non-circularity
%
≤1.0
≤1.0
≤1.0
Coating diameter
um
242±7
242±7
242±7
Package
Packing material: Wooden drum.
Packing length: 4km per drum.
