GYTA with Kevlar yarn

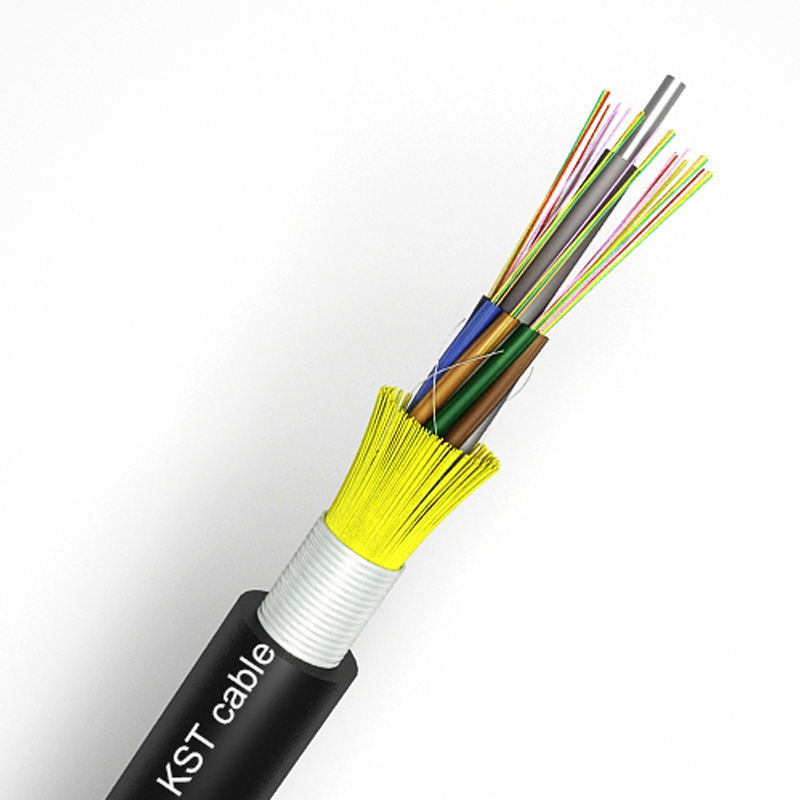

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The Aluminum tape is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.
• Adopted to outdoor distribution.
• Suitable for aerial, pipeline laying method.
• Long distance and local area network communication.
• Suitable for aerial, pipeline laying method.
• Long distance and local area network communication.
Nominal design parameters
Mechanical and environment performance
Fiber characteristics
Package
Packing material: Wooden drum.
Packing length: 2km per drum or customization.
| Fiber type | Unit | SM G652D | MM 50/125 | MM 62.5/125 | |||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | |||
| Attenuation | dB/km | ≤0.36/0.24 | ≤3.0/1.5 | ≤3.0/1.5 | |||
| Cladding diameter | um | 125±1 | 125±1 | 125±1 | |||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |||
| Coating diameter | um | 242±7 | 242±7 | 242±7 | |||
| Tensile strength | Long term（N） | 600N | |||||
| Short term（N） | 1500N | ||||||
| Crush load | Long term | 300N/100mm | |||||
| Short term | 1000N/100mm | ||||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Installation Temperature | -10℃～+60℃ | ||||||
| Storage Temperature | -40℃～+70℃ | ||||||
| NO. of fibers | 6 | 12 | 24 | 48 | 72 | 96 | 144 |
| No. of tubes | 4 | 4 | 4 | 4 | 6 | 8 | 12 |
| Filler Rod | 4 | 3 | 1 | 1 | 0 | 0 | 0 |
| Fibers per tube | 6 | 6 | 6 | 12 | 12 | 12 | 12 |
| Loose tube diameter (±0.1mm) | 1.6 | 1.6 | 1.6 | 2.0 | 2.0 | 2.0 | 2.0 |
| Thickness of loose tube (±0.05mm) |
0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Out diameter (±0.5mm) | 8.6 | 8.6 | 8.6 | 9.8 | 10.8 | 12.2 | 14.9 |
| Thickness of out diamter (±0.1mm) |
1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.7 | 1.7 |
| Loose tube | Material | PBT | Color | Standard spectrum | |||
| Filler rod | Material | PP | Color | Black | |||
| Central strength member | Material | Steel wire | Diamter | 1.4(6-48) 2.0(72-144) |
|||
| Armor | Material | Aluminum tape | |||||
| Water blcoking system | Material | Filling gel / Water blocking tape | |||||
| Out sheath | Material | MDPE | Color | Black | |||
