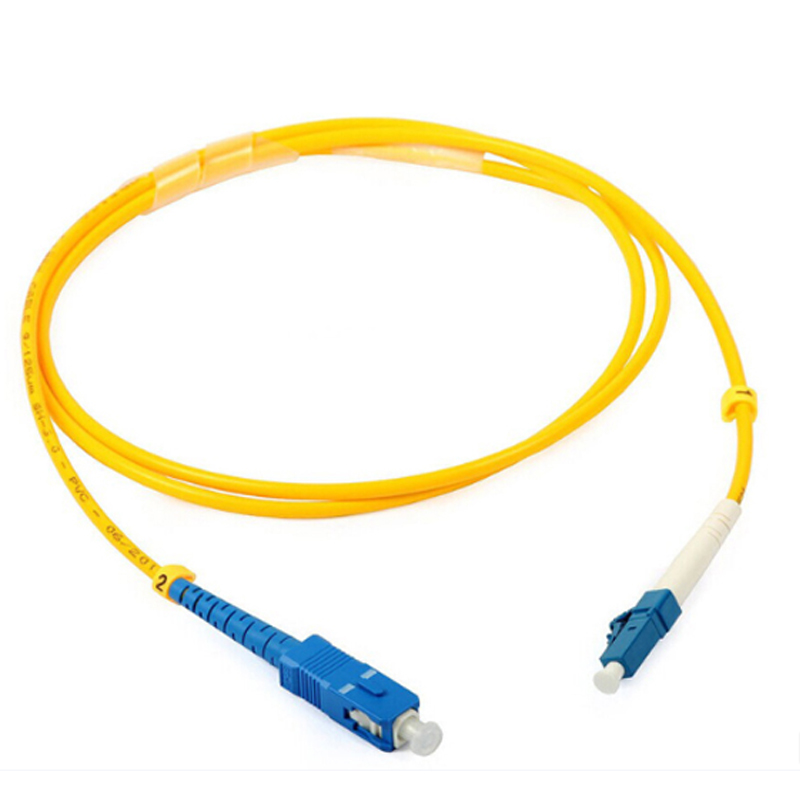

Simplex SC-LC Fiber Patch Cord
The fiber patch cord is completed by 1.8/2.0/3.0mm simplex LSZH/PVC indoor fiber optic cable with SC to LC fiber connector.
Machine room
FTTH
Area network
Test equipment
National defence
FO sensor
Light communication system
Common antenna TV system
FTTH
Area network
Test equipment
National defence
FO sensor
Light communication system
Common antenna TV system
Low insertion loss and high return loss.
High reliability and stability.
High tensile and bending performance.
High reliability and stability.
High tensile and bending performance.
Description
- Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
- Ferrule End-face: PC, UPC, APC
- Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
- Cable Quantity: Simplex, duplex or customized
- Cable Diameter: 3.0mm, 2.0mm, 0.9mm
- Cable Length: 1, 2, 3 meter or customized
- Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
Connector type
∙ Connector type: SC-LC
Attenuation parameters
| Item | Unit | SM | MM | ||||
| PC | UPC | APC | PC | ||||
| Insertion loss | dB | ≤0.20 | |||||
| Max. Insertion loss | dB | ≤0.30 | |||||
| Repeat-ability | dB | ≤0.10 | |||||
| Changeability | dB | ≤0.20 | |||||
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥35 | ||
| Operation Temperature | ℃ | -40 ~ +85 | |||||
| Storage temperature | ℃ | -40 ~ +85 | |||||
| Fiber type | um | 9/125 | 50/125, 62.5/125 | ||||
| Core number | Single or dual fiber | ||||||
| Durability | >1000times | ||||||
