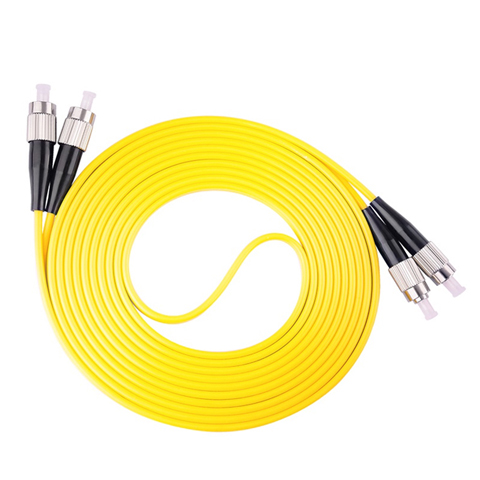

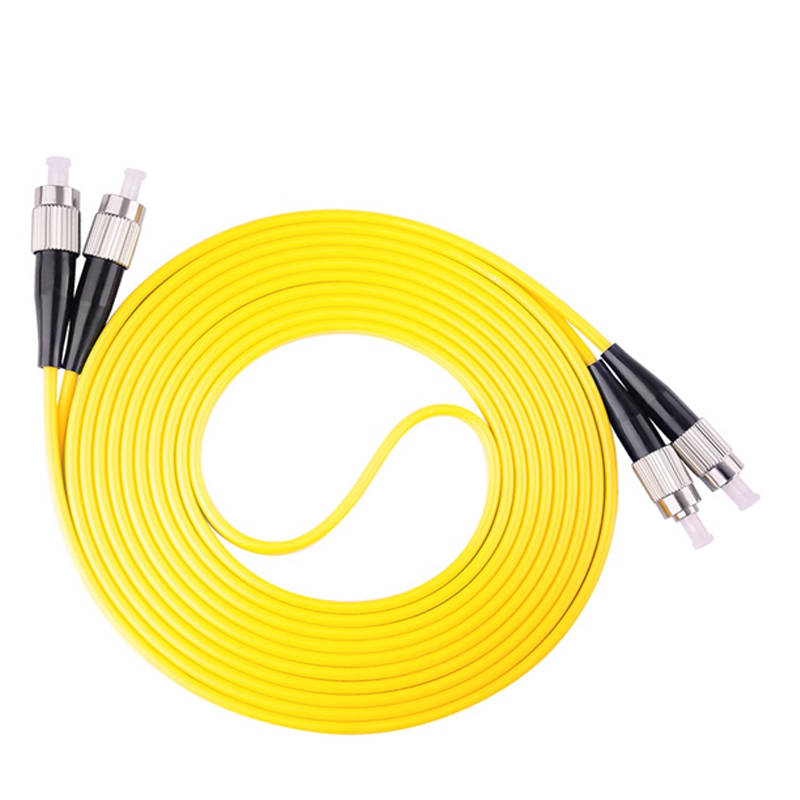

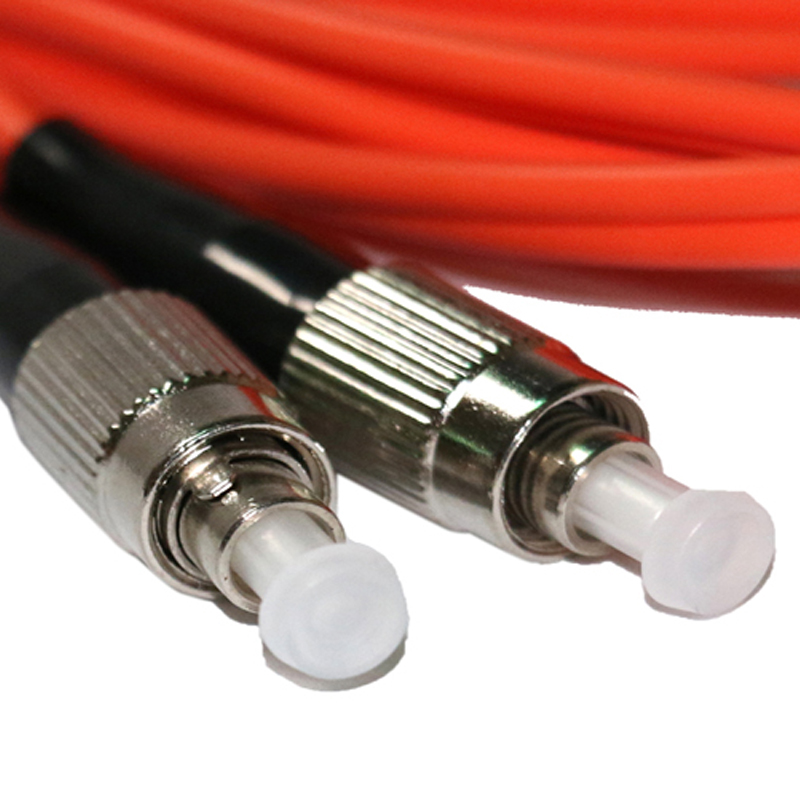

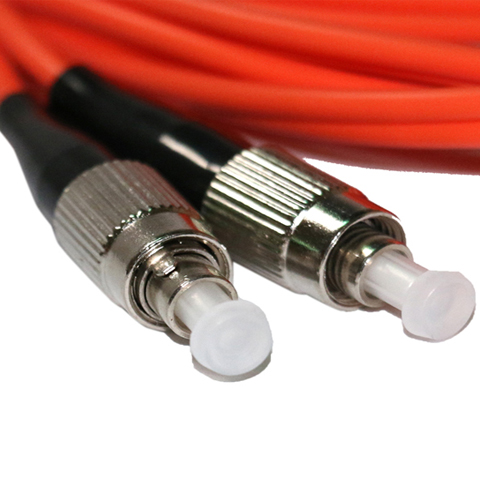

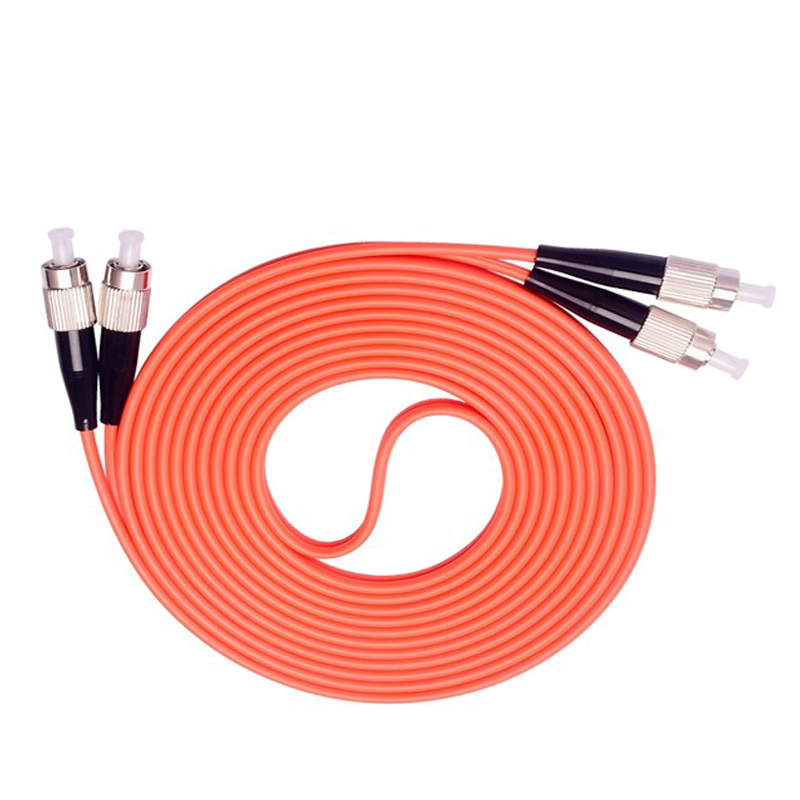

FC-FC Duplex Fiber optic patch cord
High performance optical pigtails &patch cords are a defining factor in ensuring any network performs to the highest level. HNK offers an extensive range of optical pigtails for use in FTTX, telecommunications, data communications and CATV applications.
1.Gigabit Ethernet
2.Active device termination
3.Telecommunication networks
4.Video
5.Multimedia
6.Premise installations
7.Local area networks
8.FTTH and FTTX applications
9.CATV
2.Active device termination
3.Telecommunication networks
4.Video
5.Multimedia
6.Premise installations
7.Local area networks
8.FTTH and FTTX applications
9.CATV
1.Low insertion loss and back reflection loss
2.Good echangeability
3.Good Durability
4.High temperature stability.
5.Standard: Telcordia GR-326-CORE
6.Precise connector
7.Excellent mechanical capability
2.Good echangeability
3.Good Durability
4.High temperature stability.
5.Standard: Telcordia GR-326-CORE
6.Precise connector
7.Excellent mechanical capability
Parameter
|
Item
|
Unit
|
SM
|
MM
|
||
|
PC
|
UPC
|
APC
|
PC
|
||
|
Insertion loss
|
dB
|
≤0.20
|
|||
|
Max. Insertion loss
|
dB
|
≤0.30
|
|||
|
Repeat-ability
|
dB
|
≤0.10
|
|||
|
Changeability
|
dB
|
≤0.20
|
|||
|
Return loss
|
dB
|
≥45
|
≥50
|
≥60
|
≥35
|
|
Operation Temperature
|
℃
|
-40∽+85
|
|||
|
Storage temperature
|
℃
|
-40∽+85
|
|||
|
Fiber type
|
um
|
9/125
|
50/125,62.5/125
|
||
|
Core number
|
|
Single or dual fiber
|
|||
|
Durability
|
|
>1000times
|
|||
