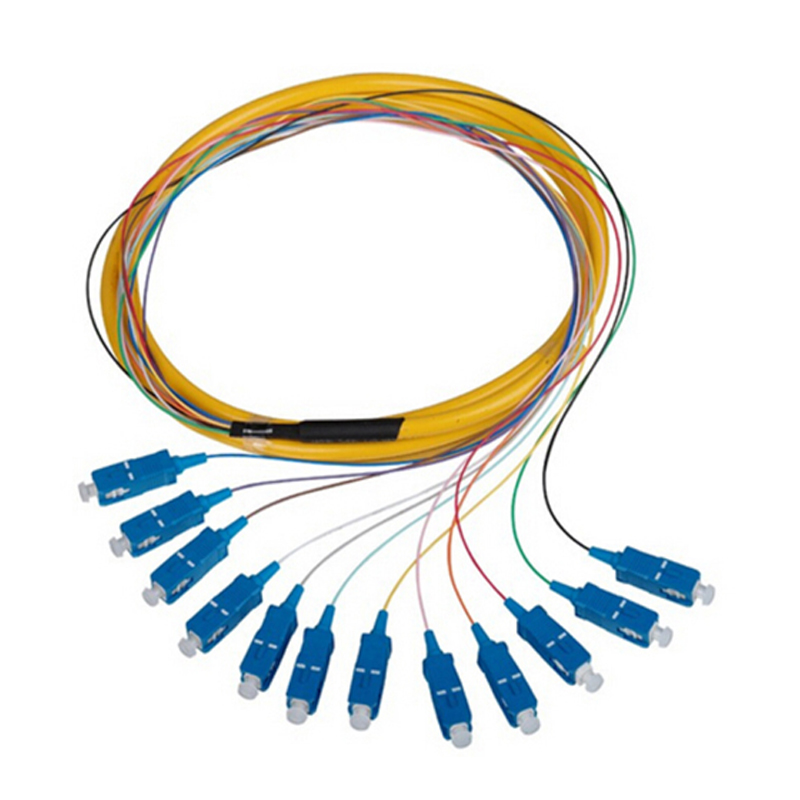

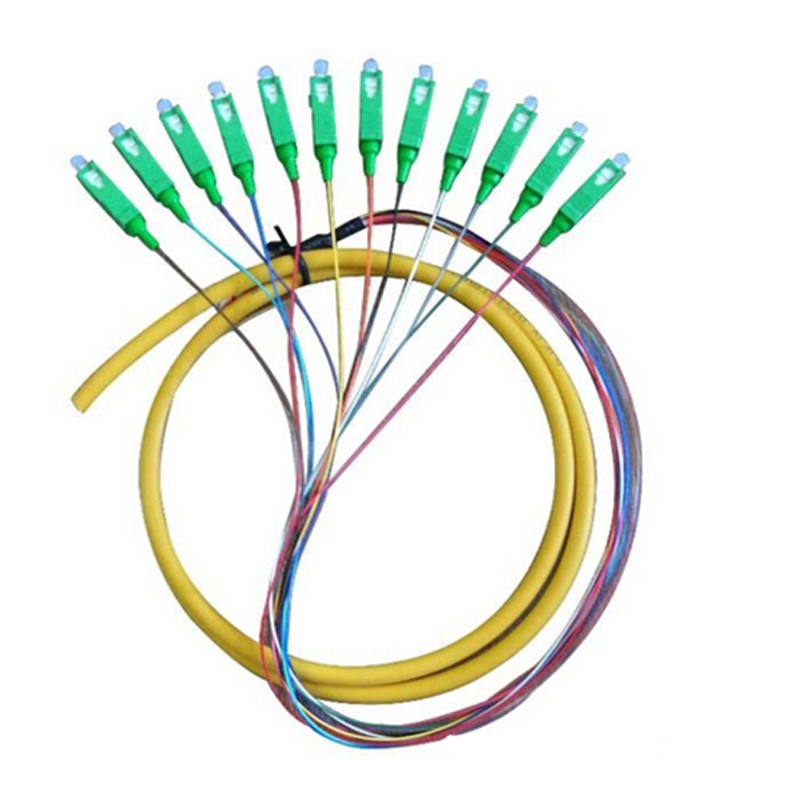

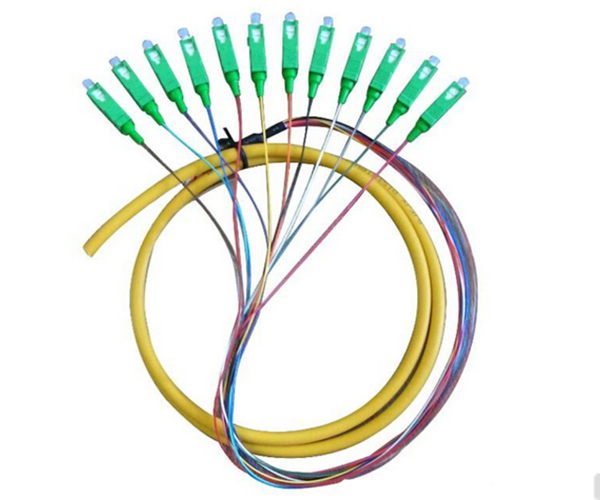

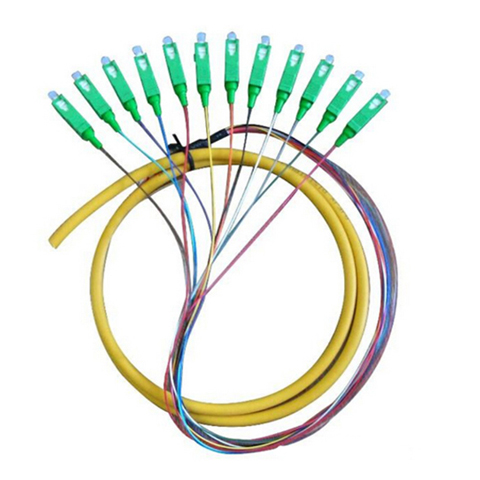

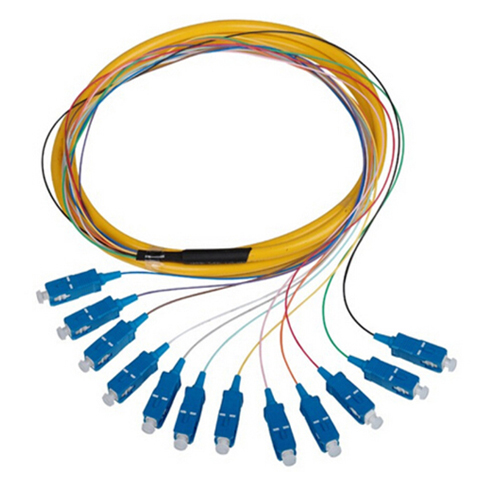

Muti-core fiber optic cable fan-out Pigtail SC / LC / ST
Pigtails & patch cords can be supplied in a variety of lengths, colors and with a variety of different connector types. Different fiber types and cable diameters are also available on request.
Telecommunication networks
CATV & LAN
Date networks
Passive Optical Networks
FTTP
CATV & LAN
Date networks
Passive Optical Networks
FTTP
Low insertion loss and High return loss
High stability and reliability
Cable type: Indoor fiber 9/125um,50/125um,62.5/125um,OM3 with PVC or LSZH Jacket
Cable diameter: 3.0mm,2.0mm and 0.9mm
High stability and reliability
Cable type: Indoor fiber 9/125um,50/125um,62.5/125um,OM3 with PVC or LSZH Jacket
Cable diameter: 3.0mm,2.0mm and 0.9mm
Features
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss | Typical ≤0.2dB | ≤0.25dB | |
| Maximum ≤0.3dB | |||
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (1000 times mating) | ||
| Tensile Strengh | > 10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
