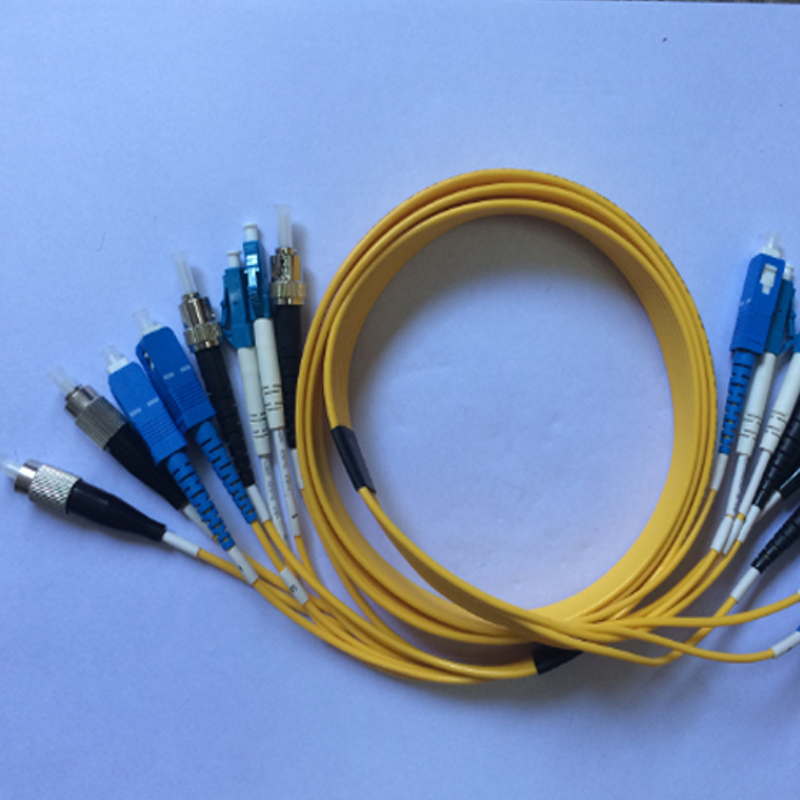

Ribbon cable FC/LC/SC/ST Fiber Patch Cord
Ribbon fiber patch cord , Φ900μm Tight buffer fiber, LSZH Jacket, then connected with fiber connector.
· Used in pigtails and patch cords;
· Used in optical connections in optical communication equipment rooms and optical distribution frames;
· Used in optical connections in optical apparatus and equipments.
· Used in optical connections in optical communication equipment rooms and optical distribution frames;
· Used in optical connections in optical apparatus and equipments.
· Good mechanical and environmental characteristics;
· Flame retardant characteristics meets the requirements of relevant standards;
· The mechanical characteristics meet the requirements of relevant standards;
· Soft, flexible, easy to splice, and with big capacity data transmission;
· Meet various requirements of market and clients.
· Flame retardant characteristics meets the requirements of relevant standards;
· The mechanical characteristics meet the requirements of relevant standards;
· Soft, flexible, easy to splice, and with big capacity data transmission;
· Meet various requirements of market and clients.
Technical parameter
Characteristic | SM , MM | |||
Connector type | FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000 | |||
Diameter(mm) | 0.9,2.0,3.0 | |||
Polishing grade | SM PC | MM PC | UPC | APC |
Insertion loss | ≤0.3dB | ≤0.4dB | ≤0.2dB | ≤0.3dB |
Return loss | ≥40dB | ≥50dB | ≥65dB | |
Interchangeability | ≤0.2dB | |||
Repeatability | ≤0.2dB | |||
Operation temperature | -40~+80 |
