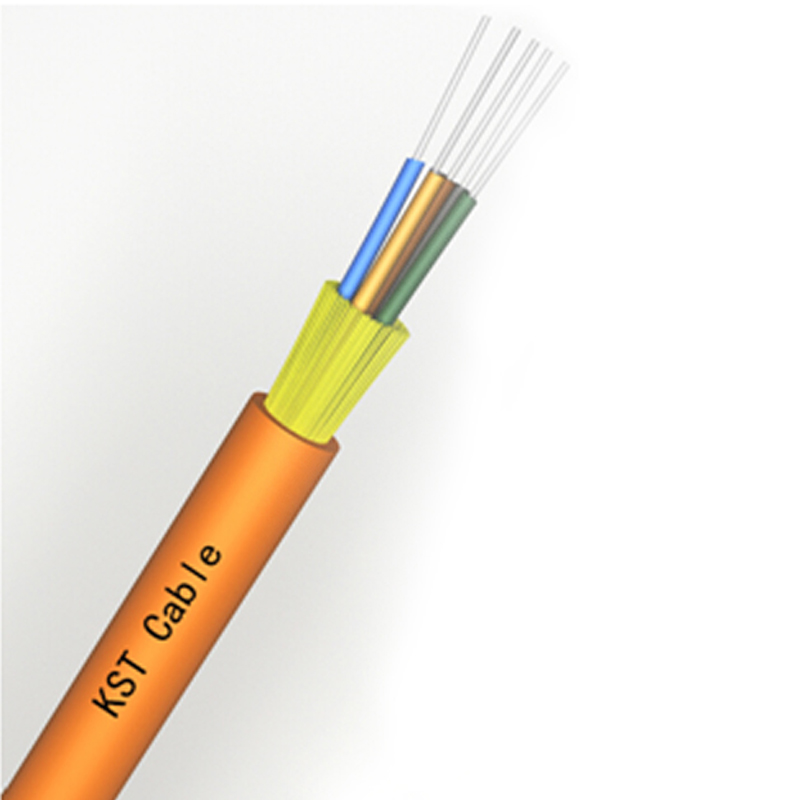

Distribution Tight Buffer Optical Cable（GJFJV）

Distribution Tight Buffer Optical Cable use 2~24 core 900μm or 600μm flame-retardant tight buffer fiber as optical communication medium.

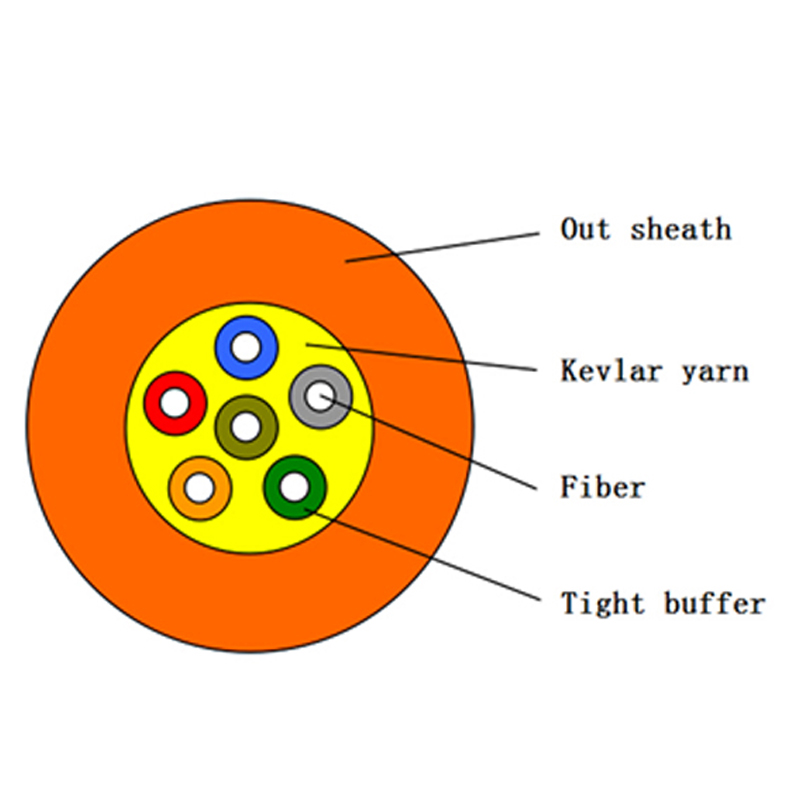

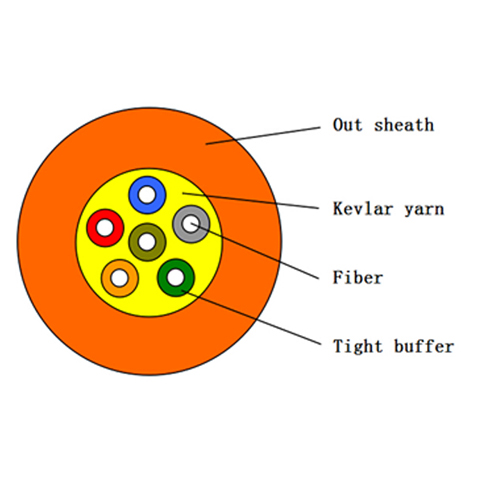

The tight buffer fiber wrapped with a layer of aramid yarn as strength member ,then completed with a layer of PVC or LSZH material as out jacket.

  • Product Model：GJFJV
INQUIRY
ApplicationCharacteristicsTechnical Parameters
· Used in pigtails and patch cords
· Used as interconnect lines of equipments,and used in optical connections in optical
communication rooms and optical distribution frames
· Used in indoor cabling,especially used as distribution cable
· Good mechanical and environmental characteristics
· Flame retardant characteristics meet the requirements of relevant standards
·The mechanical characteristics of jacked meet the requirements of relevant standards
· Soft,flexible,easy to lay and splice,and with big capacity data transmission
· Meet various requirements of market and clients.

 Cable Mechanical characteristic

Items  Cable diameter Weight
2 cores 4.0mm 22.00kg/km
 4 cores 4.0mm 22.00kg/km
 6 cores 4.0mm 23.00kg/km
8 cores 5.0mm 27.00kg/km
  10 cores 5.5mm 30.00kg/km
12 cores 6.0mm 35.00kg/km
Storage temperature（℃） -20+60
Min Bending Radius(mm) Long term  10D
Min Bending
Radius(mm)		 Short term 20D
Min allowable
Tensile Strength(N)		 Long term  200
Min allowable
Tensile Strength(N)		 Short term 600
Crush Load (N/100mm) Long term 200
Crush Load (N/100mm) short term 1000



Fiber characteristic

Fiber style Unit SM
G652		 SM
G652D		 MM
50/125		 MM
62.5/125		 MM
OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤ ≤ ≤ ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ---- 　
Bandwith 850nm MHZ.KM ---- ---- ≧400  ≧160  Bandwith
1300nm MHZ.KM ---- ---- ≧800  ≧500 　
Zero dispersion wavelength nm 1300-1324 ≧1302,
≤1322		 ---- ---- ≧ 1295,
≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr 　 ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*k
m)		 ≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm ≧ 1180,
≤1330		 ≧1180,
≤1330		 ---- ---- ----
Cable sutoff
wavelength λcc		 nm ≤1260 ≤1260 ---- ---- ----
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical
Aperture(NA)		 　 ---- ---- 0.200+/
-0.015		 0.275+/-0.
015		 0.200+/-0
.015
Step(mean of bidirectional
measurement)		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber
length and point		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10

Dicontinuity
Difference backscatter
coefficient		 dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
Attenuation uniformity dB/km ≤0.01 ≤0.01 　 　 　
Core dimater um 　 　 50+/-1.0 62.5+/-2.5 50+/-1.0
Cladding diameter um 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242+/-7 242+/-7 242+/-7 242+/-7 242+/-7
Coating/chaffinch
concentrically error		 um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding conentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5
Curl(radius) um ≤4 ≤4 ---- ---- ----



Package

1.Packing material: Wooden drum
2.Packing length: standard length of cable shall be 2 km. Other cable length is also availabler
 if required by custome



Cable marking and cable reel marking

The cable sheath shall be marked with white characters according to customer's requirement.
