Duct cable GJYXFH03

Bow-type FTTH put in side with 2 KFRP, the optical fiber unit positioned in the centre. Two parallel strength member are placed at the two sides and have aramid yarn to protect the inside FTTH, ourside sheath is PE.

  • Product Model：GJYXFH03
INQUIRY
ApplicationCharacteristicsTechnical Parameters
· Adopted to outdoor level and vertical distribution.
· Suitable for aerial and duct drop installation
· Long distance and local area network communication.
· Good mechanical and enviromental characteristic
· Anti-UV charateristics meet the requirements of relevant standards
· The mechanical charateristics meet the requirements of relevant standards
· Big capacity data transmission
· Meet various requirements of market and clients

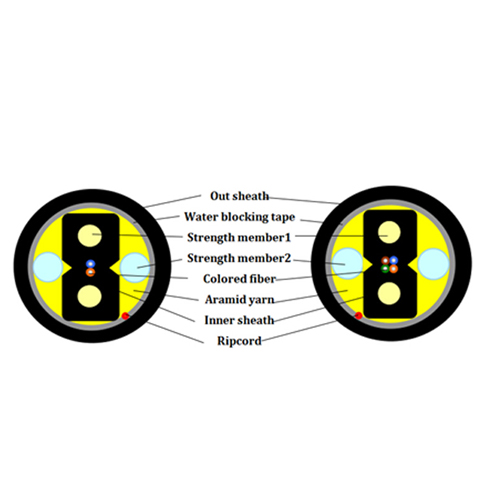

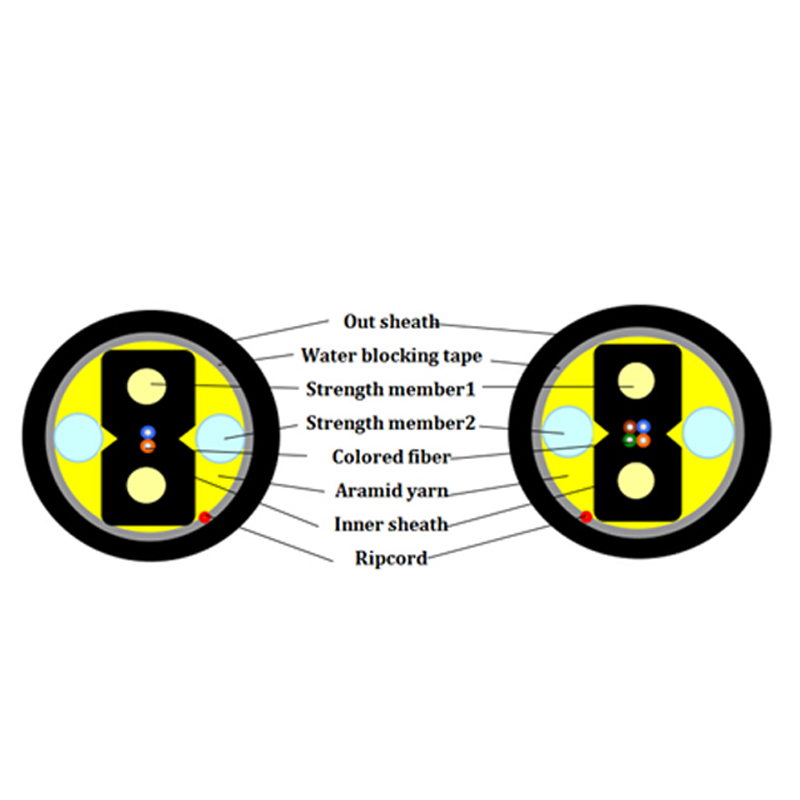

 Cable construction details :

Items Description
Number of fiber 2cores/4core
Strength member 1 material KFRP
diameter 2*0.5mm
Strength member 2 material FRP
diameter 2*0.8mm
Inner sheath material LSZH
diameter 1.8±0.2mm
Color Black
Outer sheath material PE
diameter ≥1.0mm
Color Black
Aramid yarn Kevlar yarn
Inside Cable size (Height * width) 2.0(±0.1) mm × 3.0(±0.2)mm
Whole Cable sheath 6.5±0.2mm
Cable weight 32KG±1KG



Standard color of fiber and tube

The color of the individual fibers, shall be in accordance with the table as below:

2core Standard Colour Identification
No. 1 2
Color Blue Orange

4core

4core Standard Colour Identification
No. 1 2 3 4
Color Blue Orange Green Brown



Cable Mechanical characteristic

Items Description
Installation Temperature range -20+60℃
Operation and transport temperature -40+70℃
Min Bending Radius(mm) Long term 15D
short term 30D
Allowable Tensile Strength(N) Long term 500
short term 1000
Crush Load (N/100mm) Long term 500
short term 1000
Recommended Span (m) 70
Installation sag 1.5%
Max. Wind Speed (m/s) 25
Average Wind Speed (m/s) 10



Fiber characteristic

Fiber style Unit SM
G652		 SM
G652D		 MM
50/125		 MM
62.5/125		 MM
OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤ ≤ ≤ ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ---- 　
Bandwith 850nm MHZ.KM ---- ---- ≧400  ≧160  Bandwith
1300nm MHZ.KM ---- ---- ≧800  ≧500 　
Zero dispersion wavelength nm 1300-1324 ≧1302,
≤1322		 ---- ---- ≧ 1295,
≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr 　 ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*k
m)		 ≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm ≧ 1180,
≤1330		 ≧1180,
≤1330		 ---- ---- ----
Cable sutoff
wavelength λcc		 nm ≤1260 ≤1260 ---- ---- ----
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical
Aperture(NA)		 　 ---- ---- 0.200+/
-0.015		 0.275+/-0.
015		 0.200+/-0
.015
Step(mean of bidirectional
measurement)		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber
length and point		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Dicontinuity
Difference backscatter
coefficient		 dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
Attenuation uniformity dB/km ≤0.01 ≤0.01 　 　 　
Core dimater um 　 　 50+/-1.0 62.5+/-2.5 50+/-1.0
Cladding diameter um 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242+/-7 242+/-7 242+/-7 242+/-7 242+/-7
Coating/chaffinch
concentrically error		 um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding conentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5
Curl(radius) um ≤4 ≤4 ---- ---- ----



Package

1.Packing material: Wooden drum
2.Packing length: standard length of cable shall be 2 km. Other cable length is also availabler
 if required by custome



Cable marking and cable reel marking

The cable sheath shall be marked with white characters according to customer's requirement.
