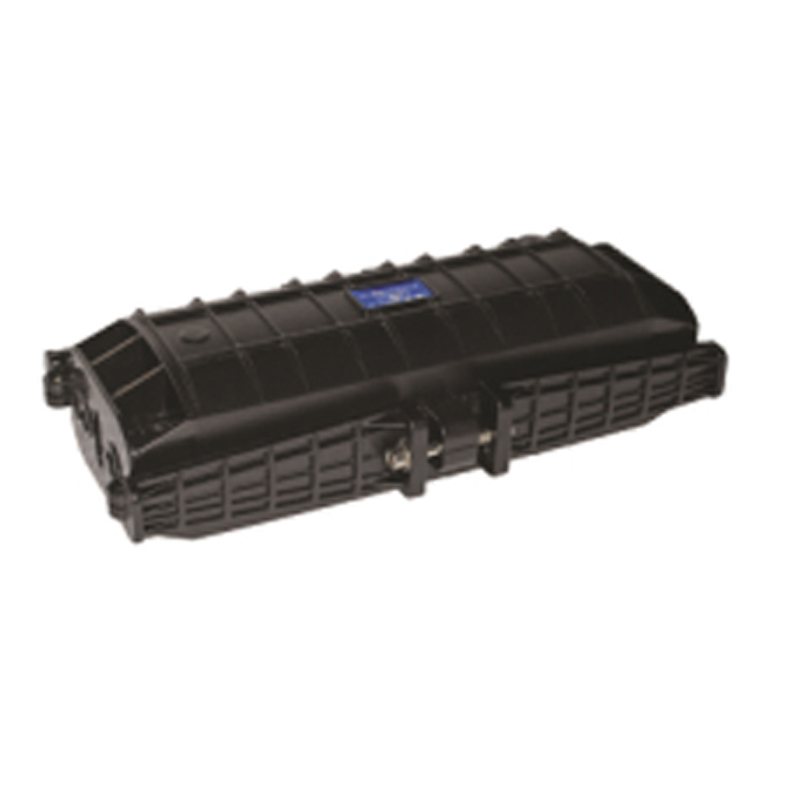

48 Core Horizontal Fiber Splice Closure
The closures are made of tough anti-corrosive Polycarbonate that makes the closures ideal for aerial, cable duct, direct burial and well applications.
Our inline closures include GJS-PMH01A. The GJS-PMH01A have provides 6 cable entry ports with 2 different diameters.. The GJS-PMH01A can accommodate up to 4 24-fiber splice trays.
The closures employ gasket-sealing technology that enables ease of installation and re-entry requiring no special tools. Air valve is also available as an optional accessory for direct burial applications.
●Suitable for ribbon and non-ribbon fibers
●Aerial
●Cable duct
●Direct burial
●Well
●Aerial
●Cable duct
●Direct burial
●Well
●Reliable gasket sealing
●Easy installation with no special tool required
●Re-enterable with no re-entry kit needed
●High compressive strength
●Easy installation with no special tool required
●Re-enterable with no re-entry kit needed
●High compressive strength
Specifications
|
Characteristics
|
Value/Performance
|
|
Type
|
GJS-PMH01A
|
|
Basic
|
|
|
No. of Cable Port
|
6
|
|
Max. Cable Diameter allowed
|
16mm/13mm
|
|
Dimension
|
400*250*150mm
|
|
Weight
|
2.5Kg
|
|
Operating Temperature
|
-40 ~ +60°C
|
|
Fiber Bend Radius
|
30mm
|
|
Max. No. of Splice Trays
|
4
|
|
Max. Capacity (single fiber splice)*1
|
96
|
|
Characteristics
|
Value/Performance
|
Methods and Conditions
|
|
|
||
|
Mechanical
|
||
|
Air Tightness
|
No air bubble seen
|
Put closure under water for 15min with closure's internal air pressure set at 100kPa±5kPa.
|
|
Remains100kPa±5kPa
|
Measure the internal pressure 24 hours later
|
|
|
Air Tightness after re-installation
|
No air bubble seen and pressure remains
unchanged
|
Do re-entry and re-installation 3 times and repeat above Air Tightness Tests.
|
|
Axial Pulling
|
Pressure remains
unchanged
|
Pulling force: 1000N
Time: 1min
Internal air pressure: 60kPa±5kPa
|
|
Compression
|
Pressure remains
unchanged
|
Applied pressure: 2000N/100mm
Time: 1min
Internal air pressure: 60kPa±5kPa
|
|
Impact
|
Pressure remains
unchanged
|
Impact energy: 16N.m
No. of impacts: 3
Internal air pressure: 60±5kPa
|
|
Bending
|
Pressure remains
unchanged
|
Bending angle±45°(in two opposite directions)
Tension: 150N
No. of bending: 10
Internal air pressure: 60kPa±5kPa
|
|
Twisting
|
Pressure remains
unchanged
|
Twisting angle: ±90°
Torque: 50N
No. of twisting: 10
Internal air pressure: 60kPa±5kPa
|
|
Thermal
|
||
|
Temperature Cycling
|
Pressure drop ≤5kPa
|
Cycling range: -40 ~ +60°C
Cycling time: 2hrs at -40°C, then 2hrs at +60°C
No. of cycling: 3
Internal air pressure: 60kPa±5kPa
|
|
Electrical
|
||
|
Insulation
|
Resistance between
metal parts:2.0x105MΩ
|
Soak closure into water in 1.5m-depth for 24hrs,and measure the insulation resistance after taking it out of water.
|
|
Resistance between
each metal part and
ground:2.0x105MΩ
|
||
|
High Voltage
|
No voltage
break-downs
and sparks
|
Soak closure into water in 1.5m-depth for 24hrs, then apply 15kV DC to the metal parts inside
|
