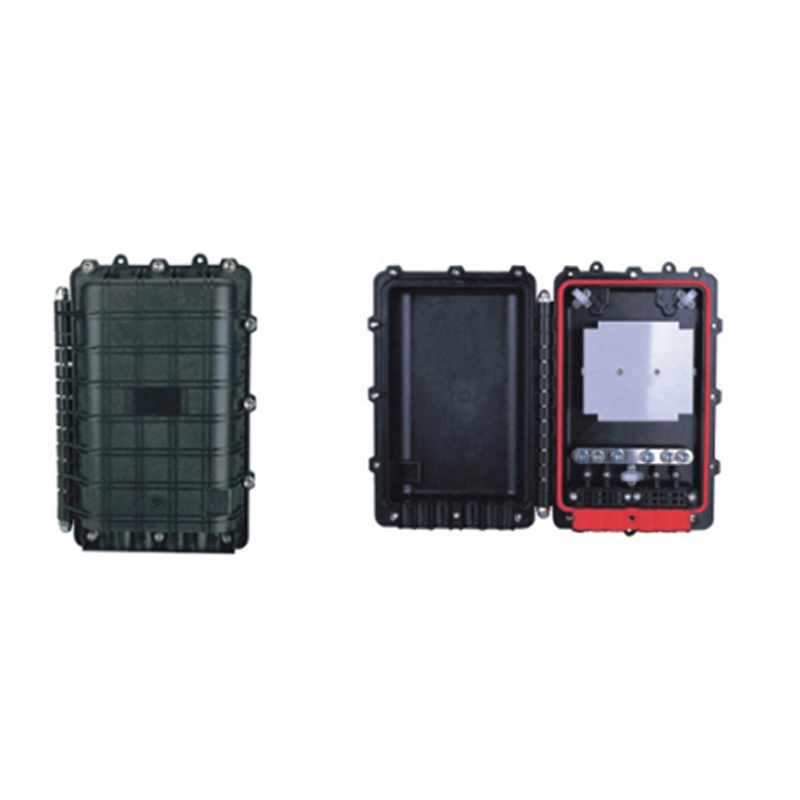

12 Core Fiber Optic Splice Closure

The GJS-PMH05 have provides 6 cable entry ports with 3 different diameters.. The GJS-PMH05 can accommodate up to 6 12-fiber splice trays.

  • Product Model：
INQUIRY
ApplicationCharacteristicsTechnical Parameters
The closures are made of tough anti-corrosive Polycarbonate that makes the closures ideal for aerial, cable duct, direct burial and well applications.
The closures employ gasket-sealing technology that enables ease of installation and re-entry requiring no special tools. Air valve is also available as an optional accessory for direct burial applications.

Specification

Characteristics
Value/Performance
Type
GJS-PMH05
Basic

No. of Cable Port
6
Max. Cable Diameter allowed
20mm/16mm/13mm
Dimension
323×202×86mm3
Weight
2.65~2.8Kg
Operating Temperature
-40 ~ +60°C
Fiber Bend Radius
30mm
Max. No. of Splice Trays
6
Max. Capacity (single fiber splice)*1
96

Characteristics
Value/Performance
Methods and Conditions

Mechanical
Air Tightness
No air bubble seen
Put closure under water for 15min with closure's internal air pressure set at 100kPa±5kPa.
Remains100kPa±5kPa
Measure the internal pressure 24 hours later
Air Tightness after re-installation
No air bubble seen and pressure remains
unchanged
Do re-entry and re-installation 3 times and repeat above Air Tightness Tests.
Axial Pulling
Pressure remains
unchanged
Pulling force: 1000N
Time: 1min
Internal air pressure: 60kPa±5kPa
Compression
Pressure remains
unchanged
Applied pressure: 2000N/100mm
Time: 1min
Internal air pressure: 60kPa±5kPa
Impact
Pressure remains
unchanged
Impact energy: 16N.m
No. of impacts: 3
Internal air pressure: 60±5kPa
Bending
Pressure remains
unchanged
Bending angle±45°(in two opposite directions)
Tension: 150N
No. of bending: 10
Internal air pressure: 60kPa±5kPa
Twisting
Pressure remains
unchanged
Twisting angle: ±90°
Torque: 50N
No. of twisting: 10
Internal air pressure: 60kPa±5kPa
Thermal
Temperature Cycling
Pressure drop ≤5kPa
Cycling range: -40 ~ +60°C
Cycling time: 2hrs at -40°C, then 2hrs at +60°C
No. of cycling: 3
Internal air pressure: 60kPa±5kPa
Electrical
Insulation
Resistance between
metal parts:2.0x105MΩ
Soak closure into water in 1.5m-depth for 24hrs,and measure the insulation resistance after taking it out of water.
Resistance between
each metal part and
ground:2.0x105MΩ
High Voltage
No voltage
break-downs
and sparks
Soak closure into water in 1.5m-depth for 24hrs, then apply 15kV DC to the metal parts inside
