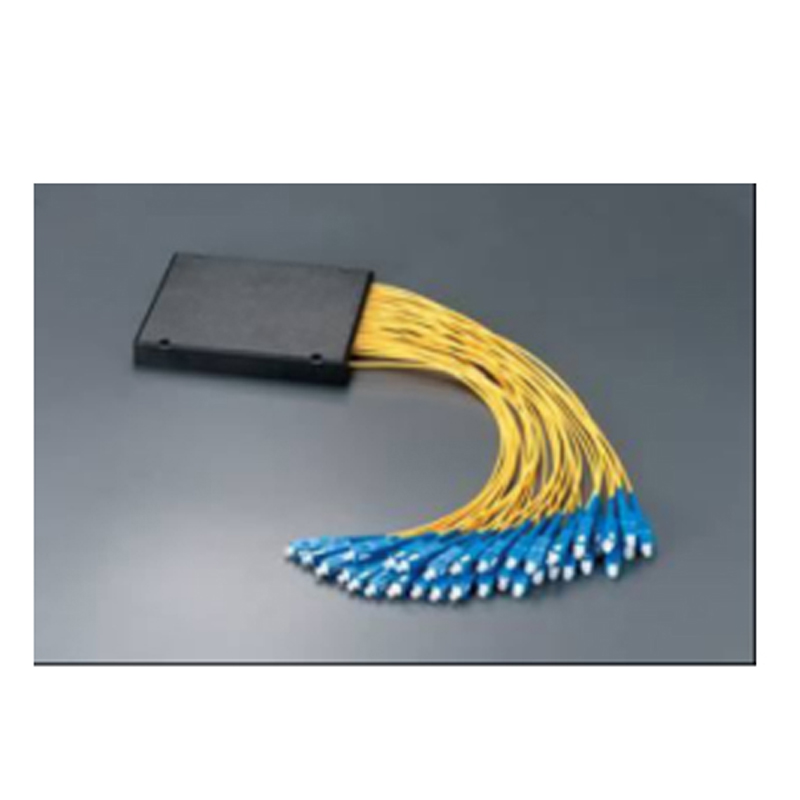

Fiber Splitter PLC Splitter
PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.
Fiber to the home
PON
CATV
Other optical signal splitter system
PON
CATV
Other optical signal splitter system
Low insertion loss
Low polarization dependent loss
Precision design
Even splitter ratio
Wide operating wavelength range：1260nm to 1650nm
Wide operating temperature: -40℃ to 85℃
Low polarization dependent loss
Precision design
Even splitter ratio
Wide operating wavelength range：1260nm to 1650nm
Wide operating temperature: -40℃ to 85℃
Features
|
Type
|
1×2
|
1×4
|
1×8
|
1×16
|
1×32
|
1×64
|
|
Operating wavelength (nm)
|
1260～1650
|
|||||
|
Fiber type
|
G657A or customization
|
|||||
|
Insertion loss(dB)（P/S ）
|
3.8/4.0
|
7.1/7.3
|
10.2/10.5
|
13.5/13.7
|
16.5/16.9
|
20.5/21.0
|
|
Loss uniformity (dB)
|
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
2.0
|
|
Return loss (dB)（P/S ）
|
55/50
|
55/50
|
55/50
|
55/50
|
55/50
|
55/50
|
|
Polarization dependent loss (dB)
|
0.2
|
0.2
|
0.2
|
0.25
|
0.3
|
0.35
|
|
Directivity (dB)
|
55
|
55
|
55
|
55
|
55
|
55
|
|
Wavelength independent loss (dB)
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
0.5
|
|
Temperature stability (-40～85 ℃)(dB)
|
0.4
|
0.4
|
0.4
|
0.5
|
0.5
|
0.5
|
|
Operating temperature(℃)
|
-40～85
|
|||||
|
Storage temperature (℃)
|
-40～85
|
|||||
|
Device dimension (mm) (L×W×H)
|
40×4×4
|
40×4×4
|
40×4×4
|
50×4×4
|
50×7×4
|
60×12×4
|
|
Module dimension (mm) (L×W×H)
|
100×80×10
|
100×80×10
|
100×80×10
|
120×80×18
|
120×80×18
|
140×115×18
|
|
Micro type dimension (mm) (L×W×H)
|
60×7×4
|
60×7×4
|
60×7×4
|
60×12×4
|
80×20×6
|
100×40×6
|
