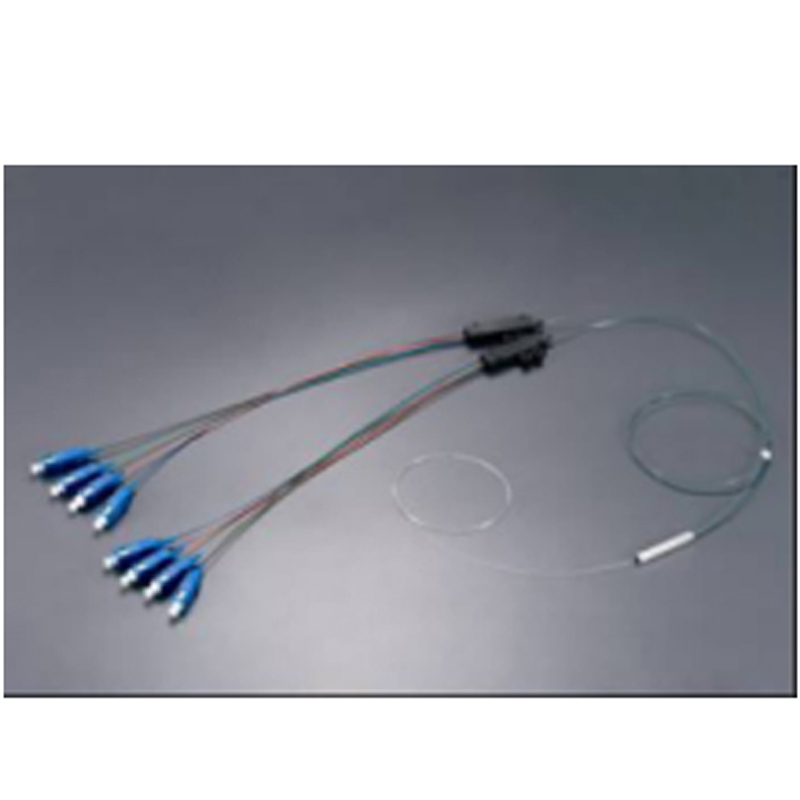

Steel Tube Type Fiber Splitter
1 KST provides a whole series of 1xN and 2xN splitters that are tailored for specific applications.
2 All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network deployment.
1 Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology.
2 It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management.
2 It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management.
Corrosion resistant body
Inner Key and Key Ring styles available
Variety of boot types and colors
Inner Key and Key Ring styles available
Variety of boot types and colors
Features
|
Type
|
2×2
|
2×4
|
2×8
|
2×16
|
2×32
|
2×64
|
|
Operating wavelength (nm)
|
1260～1650
|
|||||
|
Fiber type
|
G657A or customization
|
|||||
|
Insertion loss(dB)（P/S ）
|
4.0
|
7.6
|
11.0
|
14.4
|
17.5
|
21.0
|
|
Loss uniformity (dB)
|
0.6
|
1.0
|
1.2
|
1.5
|
1.8
|
2.2
|
|
Return loss (dB)（P/S ）
|
55/50
|
55/50
|
55/50
|
55/50
|
55/50
|
55/50
|
|
Polarization dependent loss (dB)
|
0.2
|
0.2
|
0.3
|
0.3
|
0.4
|
0.4
|
|
Directivity (dB)
|
55
|
55
|
55
|
55
|
55
|
55
|
|
Wavelength independent loss (dB)
|
0.3
|
0.4
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Temperature stability (-40～85 ℃)(dB)
|
0.4
|
0.4
|
0.4
|
0.5
|
0.5
|
0.5
|
|
Operating temperature(℃)
|
-40～85
|
|||||
|
Storage temperature (℃)
|
-40～85
|
|||||
|
Device dimension (mm) (L×W×H)
|
50×4×4
|
50×4×4
|
50×4×4
|
50×7×4
|
60×7×4
|
60×12×4
|
|
Module dimension (mm) (L×W×H)
|
100×80×10
|
100×80×10
|
100×80×10
|
120×80×18
|
120×80×18
|
140×115×18
|
|
Micro type dimension (mm)
(L×W×H)
|
60×7×4
|
60×7×4
|
60×7×4
|
60×12×4
|
80×20×6
|
100×40×6
|
