Duplex Armored Sub-Unit Fiber Optic Cable

The cable use simplex cable(Φ900µm tight buffer fiber, aramid yarn as strength member) as subunit. The subunits are wrapped with corrugated steel tape, then the cable is completed with a PE jacket.

  • Product Model：
INQUIRY
ApplicationCharacteristicsTechnical Parameters
• Used as access building cable.
• Adopted to outdoor and indoor distribution.
• Good mechanical and temperature performance.
• Crush resistance and flexibility.
• Small diameter, light weight and friendly installation.

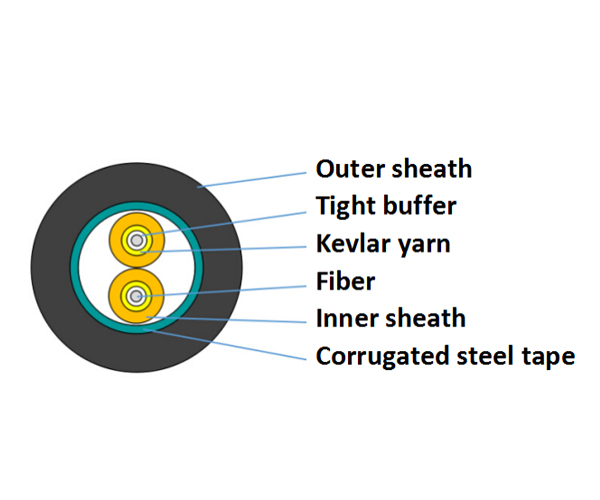

Cable Construction Details

Fiber count 2F
Tight buffer Material PVC Color bule, orange
Diameter 0.9mm Thickness 0.32mm
Strength member Mateial Domestic kevlar yarn Type 1000D*4
Inner sheath Material  PVC Color blue, orange
Diameter 1.9±0.05mm Thickness 0.35±0.03mm
Armor Mateial Corrugated steel tape Diameter 0.21*20mm
Outer Sheath Material HDPE Color black
Diameter 8.5±0.2mm Thickness 1.5±0.1mm
Net weight 62±3kg/km

Cable mechanical and environment chararcteristics

Tensile strength Long term （N） 200
Short term（N） 400
Crush load Long term（N/100mm） 300
Short term（N/100mm） 1000
Bending radius Dynamic (mm) 20D
Static (mm) 10D
Temperature -20℃~70℃

Fiber characteristics

Fiber style Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.24 ≤3.0/1.5 ≤3.0/1.5
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7

Package

Packing material: Wooden drum.

Packing length: 2km per drum or customization.
