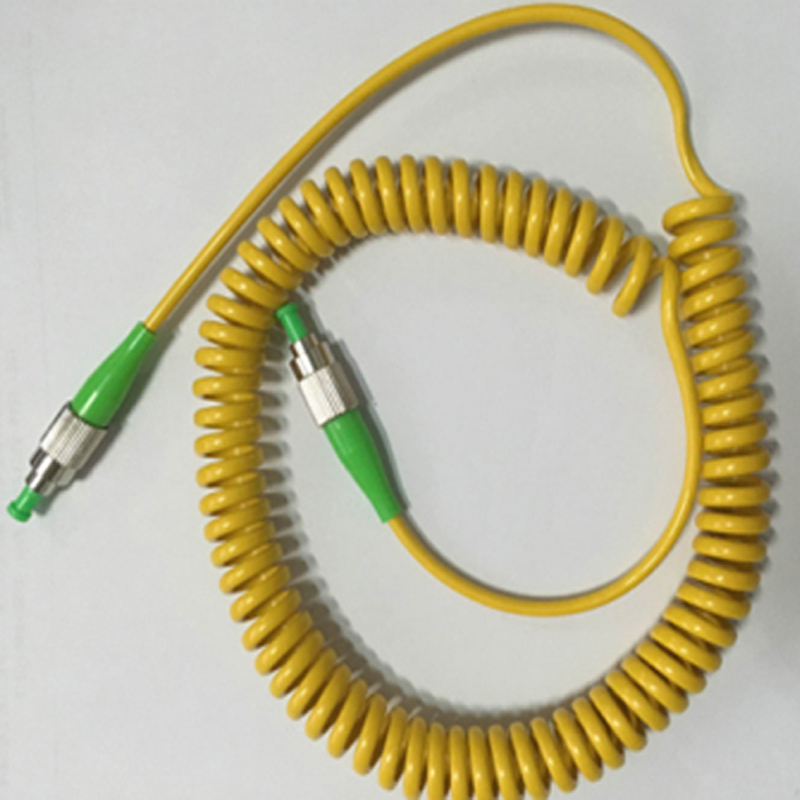

Spiral Fiber Patch Cord with SC/LC/ST
KST Patch Cord is an optical cable, used to connect optical device to another for signal routing. Each end of the cable is attached to a connector, so the cord may be plugged in. Pigtail is a cable with one connector. Types of connectors may vary widely, FC, SC, ST, and etc.
Local area networks, including FTTH and FTTD.
CATC system.
Telecommunication networks.
Data processing networks.
CATC system.
Telecommunication networks.
Data processing networks.
Low insertion loss and high return loss.
High reliability and stability.
High tensile and bending performance.
Adjustable jumper length.
High reliability and stability.
High tensile and bending performance.
Adjustable jumper length.
Specification
△ All fiber connectors can be applied, including FC, SC, LC, STetc.
△ Ferrule end-face: PC, UPC, APC.
△ Fiber type: Single mode (SM: 9/125um).
△ Cable type: indoor fiber optic cable.
△ Cable sheath: PU only.
△ Cable diameter: 0.9mm, 2.0mm, 3.0mm or customization.
△ Cable length: customization.
Attenuation parameters
Insertion loss: ≦0.2dB
Return loss: ≧50dB (PC）
Temperature range: -40℃ ~ 70℃
