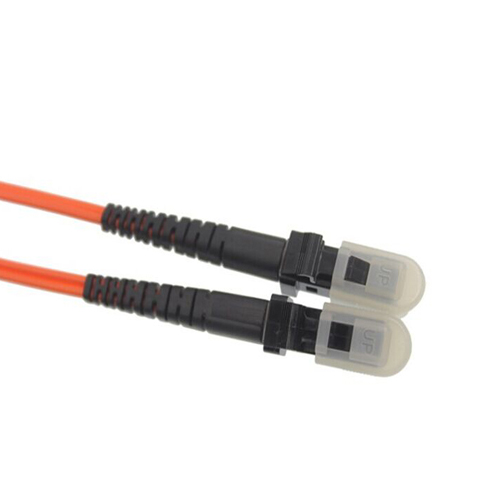

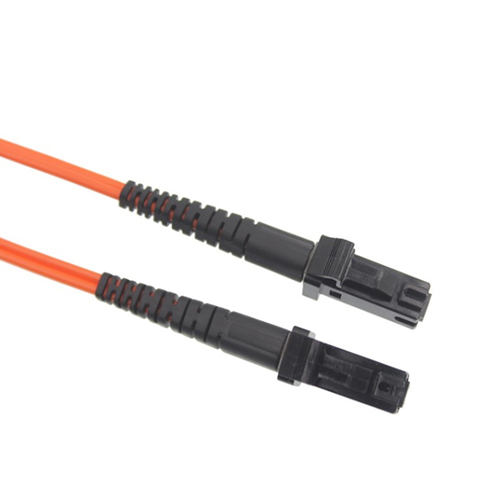

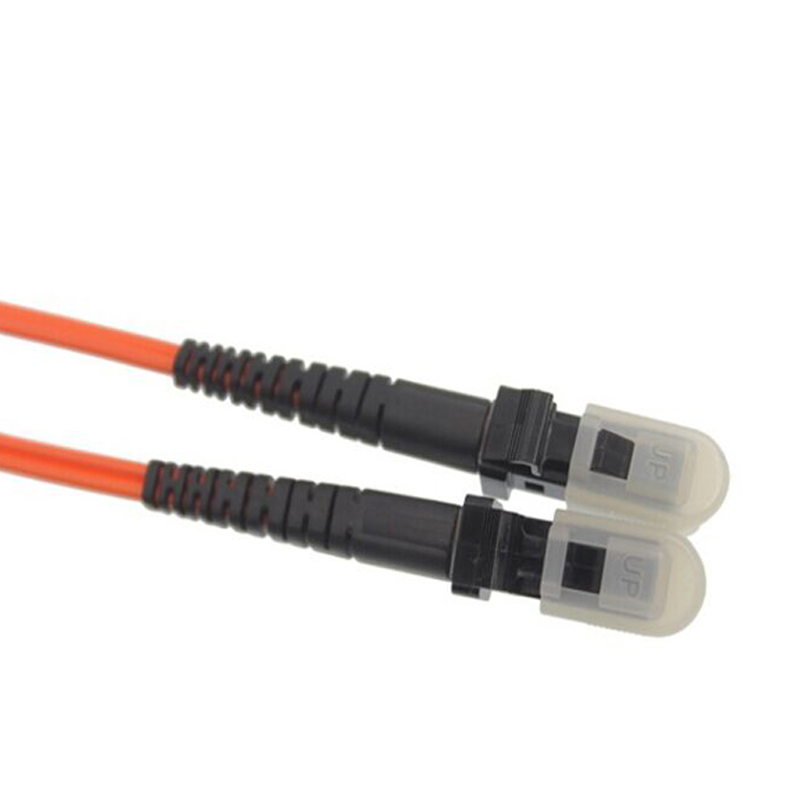

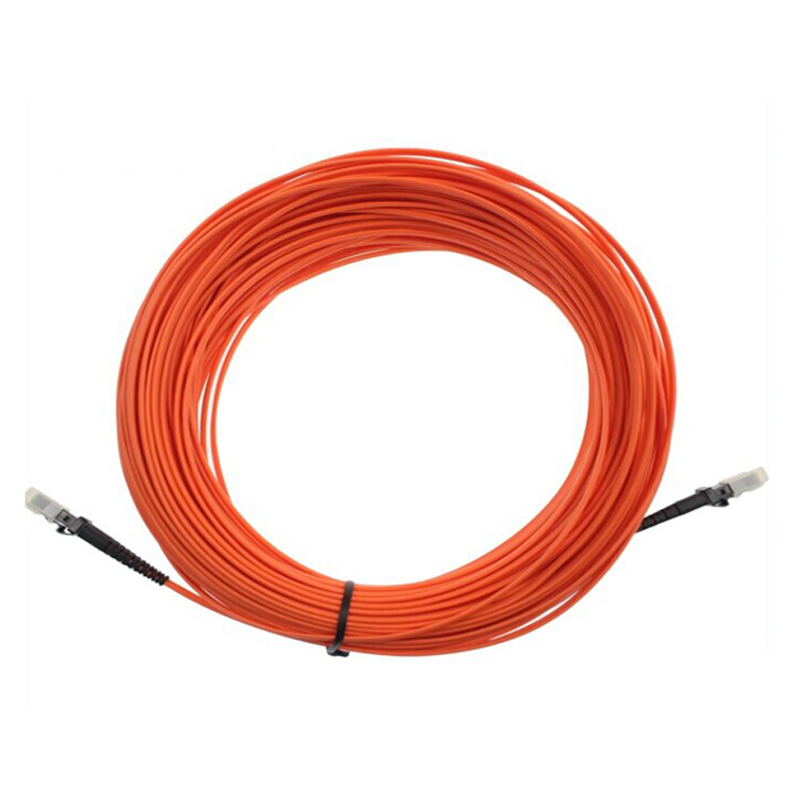

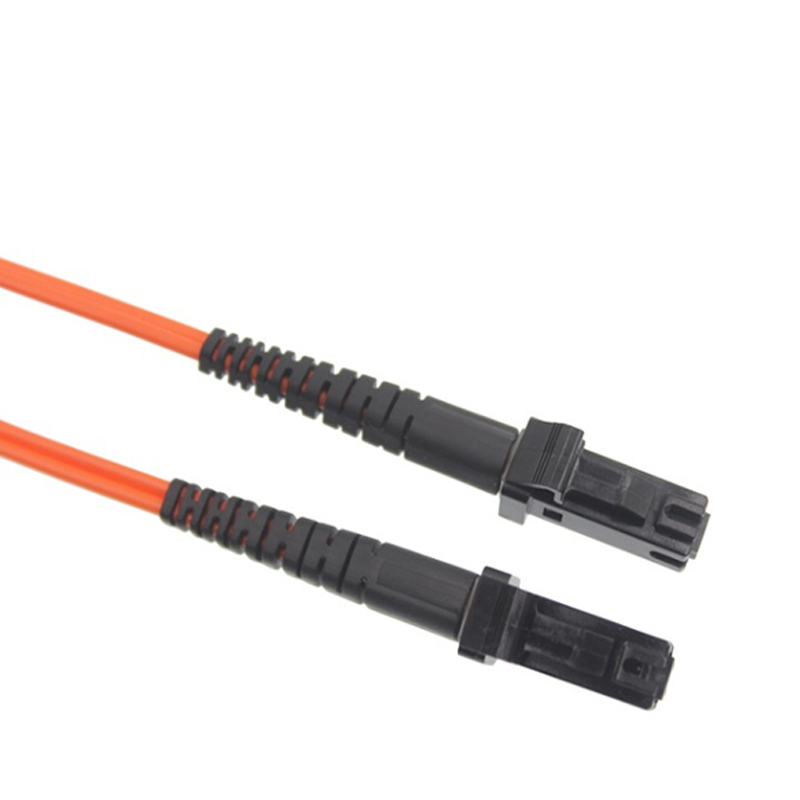

MTRJ to MTRJ 1.8mm LSZH Fiber Optic Patch Cables
The optical Fiber Connectors (Commonly we call Patch Cords) is a length of optical cable with connectors fixed on two ends to realize the optical path active connection. Pigtail is a length fiber cable with only one connector fixed on one end. If both sides of the connector or its end-face are different, we call it hybrid patch cord. According to the transmission medium, it divides Single Mode and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000, LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.
Optic-fiber Communication Systems
Optic-fiber Data Communications
Optic-fiber Access Networks
Optic-fiber CATV
LAN
Test Equipment
Optic-fiber Sensors
Optic-fiber Data Communications
Optic-fiber Access Networks
Optic-fiber CATV
LAN
Test Equipment
Optic-fiber Sensors
Low Insertion Loss
High Return Loss
Good Repeatability
Good Exchangeability
High Temperature Stabilit
High Return Loss
Good Repeatability
Good Exchangeability
High Temperature Stabilit
Features
Item | Unit | FC,SC,ST/PC | FC,SC,ST/UPC | FC,SC,ST/APC |
Insertion Loss | dB | ≤0.20 | ≤0.20 | ≤0.30 |
Repeatability | dB | ≤0.10 | ||
Exchangeability | dB | ≤0.20 | ||
Return Loss | dB | ≥45(SM) | ≥50(SM) | ≥60(SM) |
Fiber Type | Corning SMF-28TM, 9/125um (SM), 50/125um or 62.5/125um(MM) | |||
Operating Temperature | °C | -40~+70 | ||
Storage Temperature | °C | -40~+70 | ||
Durability | time | >1000 times | ||
Industry Standard | Telcordia GR-326-CORE |
