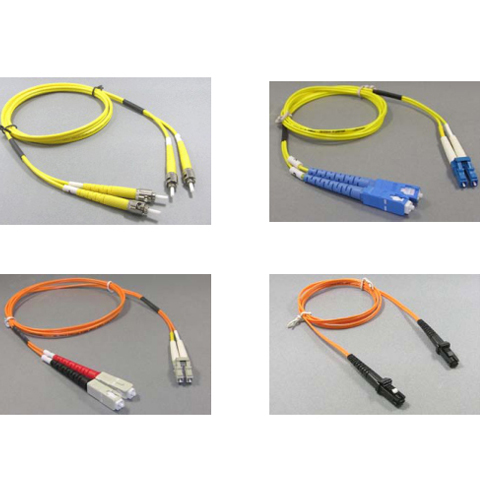

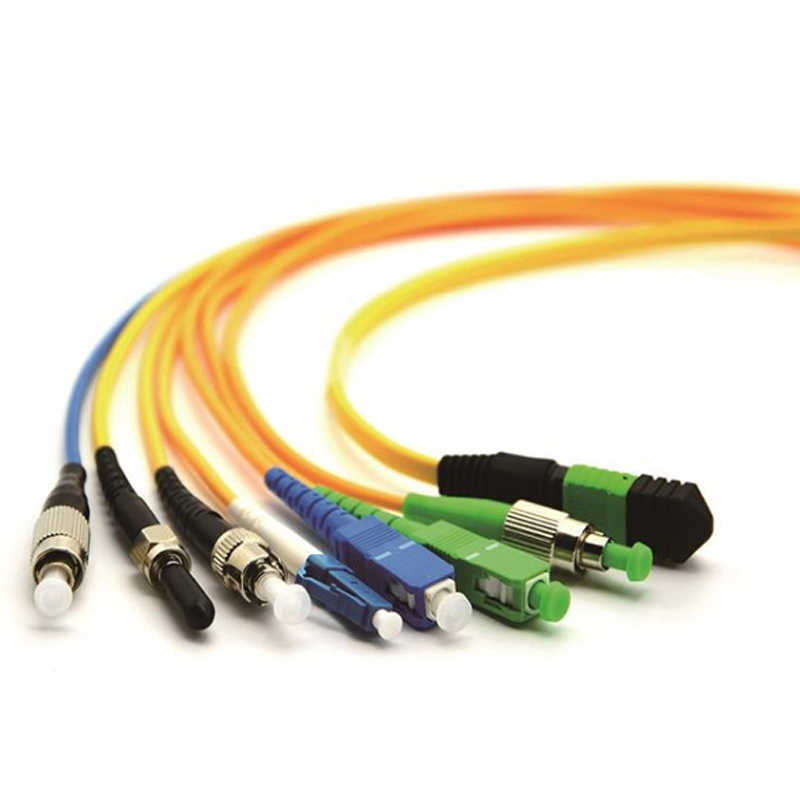

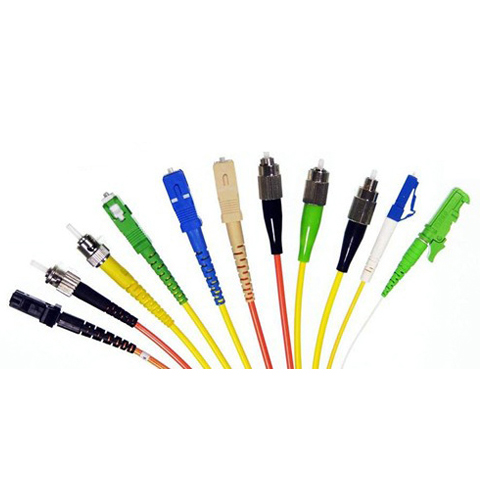

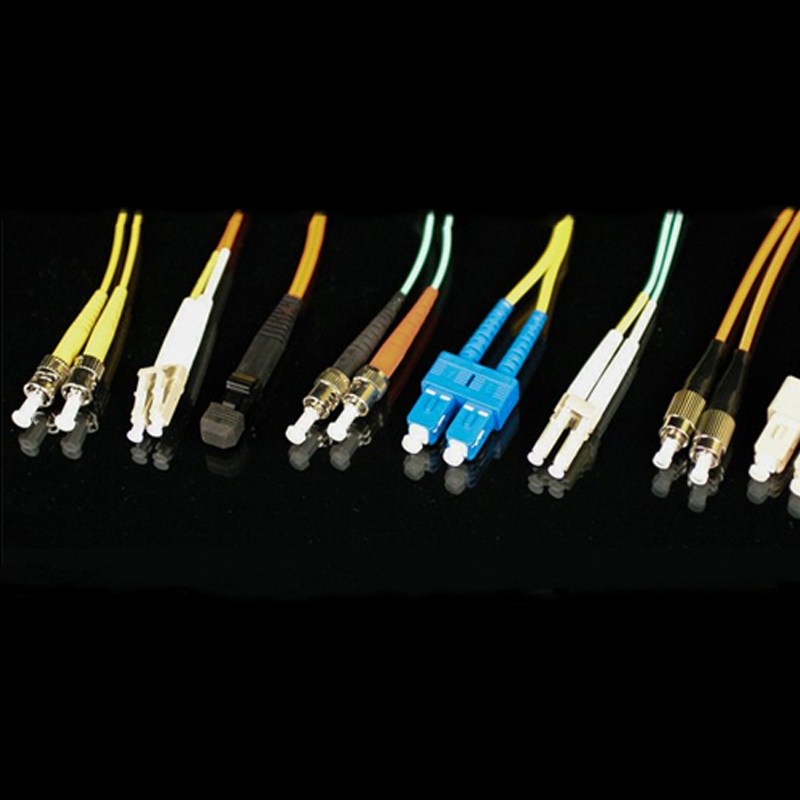

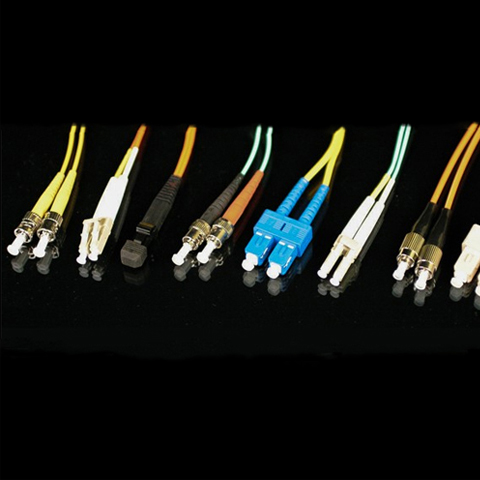

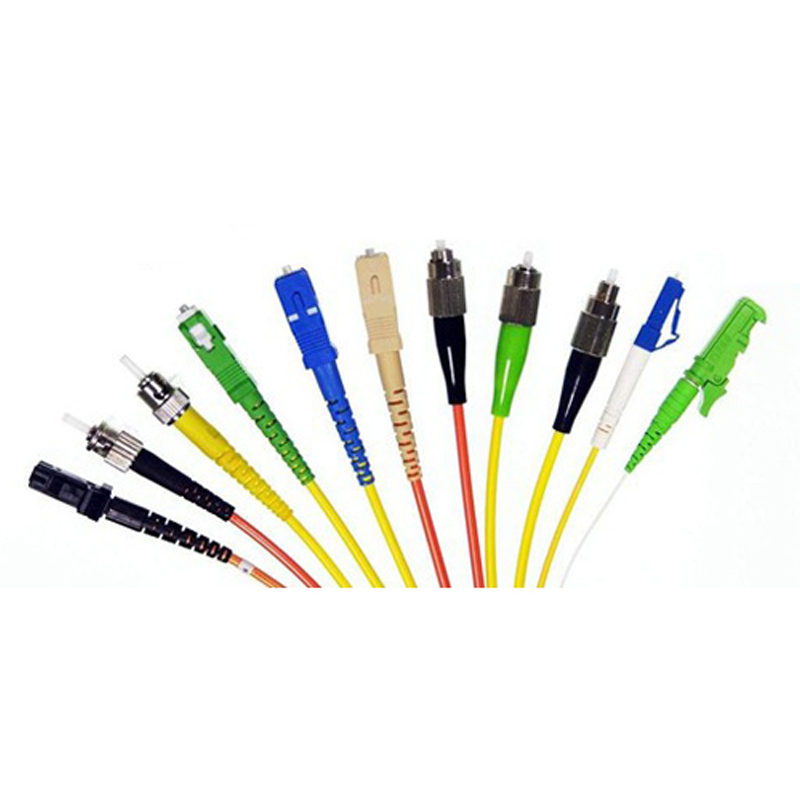

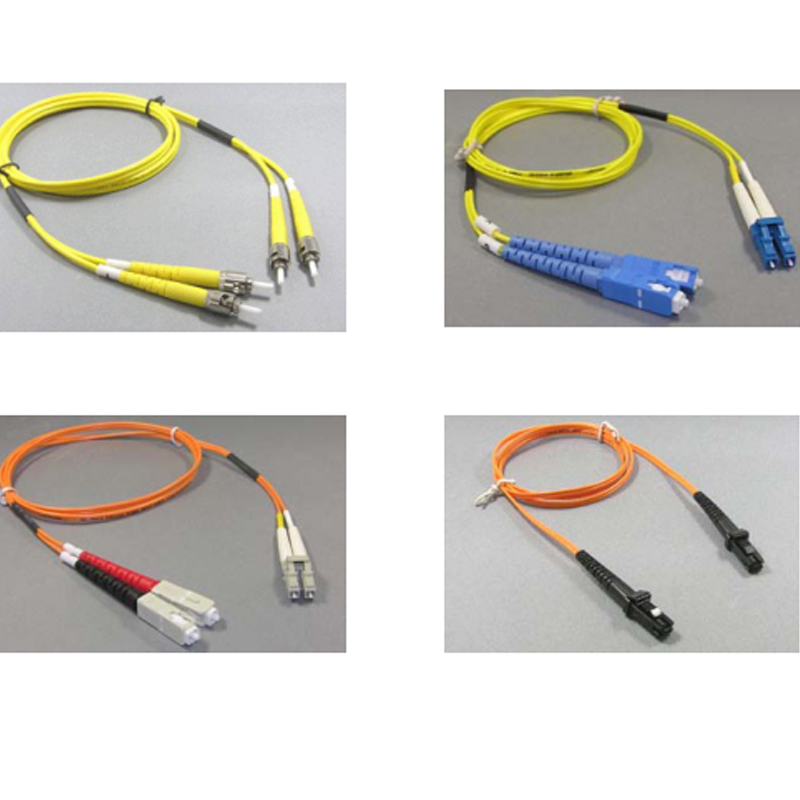

Simplex / Duplex SC / ST / E2K / MTRJ / LC Fiber Patch Cord And Fiber Pigtails

Our fibre optic patch cord are used to connect high speed and legacy networks like Gigabit Ethernet,Fast Ethernet and Ethernet.The patch cords are terminated with standard connector which gives optimum optical performance.

  • Product Model:
INQUIRY

CATV system
Optical fiber communication
Testing equipment
FTTX
Fiber optic network convergence
Optical fiber access network
Fiber data transmission
Optical fiber video transmission
Fiber multimedia system
Fiber ethernet
Photoelectric conversion system
Low insertion loss
High return loss
High reliability and stability
Excellent exchangeability and durability

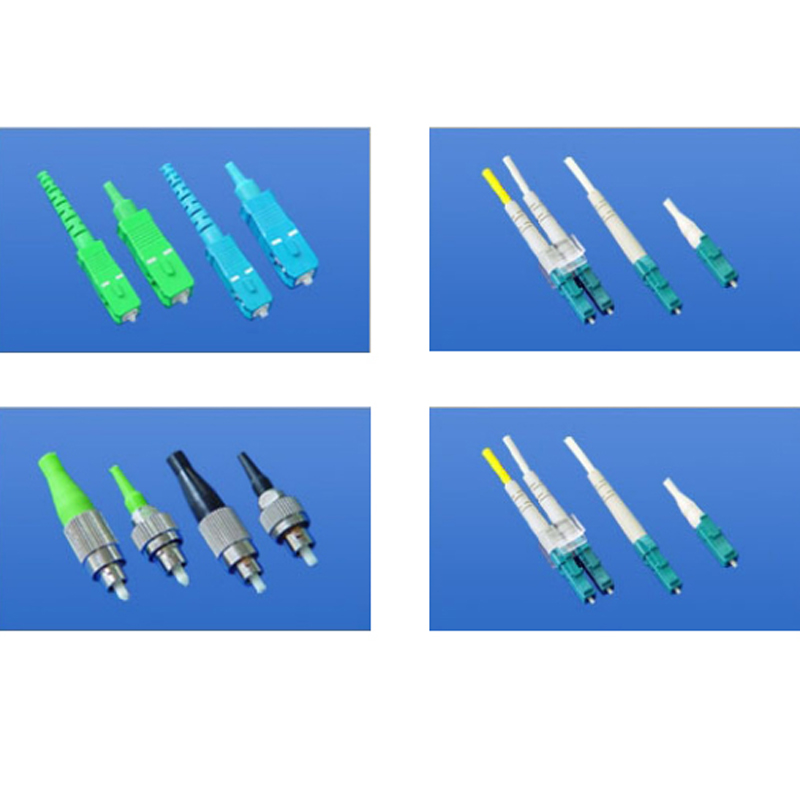

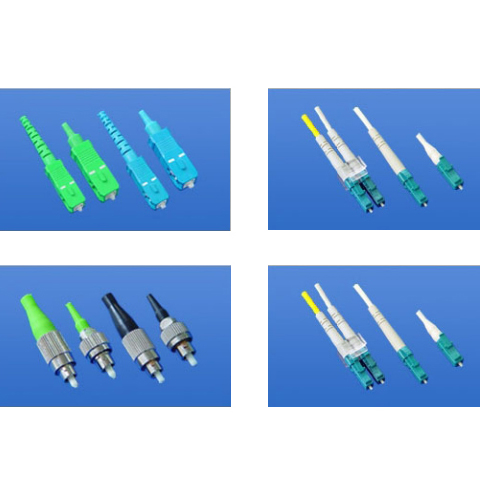

FC, LC, SC, ST, MU, MTRJ,DIN, D4, SMA, ESCON, FDDI, MPO etc. is available
PC, UPC or APC polishing
Single mode and multi-mode available
Simplex, duplex or fan-out available
Ø0.9, Ø2.0, Ø3.0 available
Length: 1m, 1.5m, 2m or customized
PVC, LSZH or hytrel available
Fully compliant with the standards of Telcordia GR-326-CORE and RoHS

Ordering Information:



① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

② Ferrule End-face: PC, UPC, APC

③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

④ Cable Quantity: “1C” means one cores=Simplx(SX)

⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm

⑥ Cable Length: 1, 2, 3 meter or customized

⑦ Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum



101
X
X
X
X
X
X
XX
YYYY
Patch cord
or
Pigtail

5:50/125
1:Simplex
0:PC
1:ST
0:NONE
P:PVC
Cable diameter
example:
09:0.9mm
20:2.0mm
30:3.0mm

length in
meter
example:
0015=1.5m
0010=1m, 0050=5m

6:62.5/125
2:Duplex
1:UPC
2:SC
1:ST
L:LSZH


9:9/125

2:APC
3:FC
2:SC



G:OM3

3:UPC-APC
4:LC
3:FC





5:MTRJ
4:LC






6:MU
5:MTRJ







6:MU



Example:

101-91133P30-0050
Patch cord, SM 9/125um , Simplex , FC/UPC-FC/UPC, OD:3mm, Length=5M PVC cable

101-G2024L20-0030
Patch cord, OM3 50/125um , Duplex , SC/PC-LC/PC, OD:2mm, Length=3M LSZH cable

101-51010P09-0010
Pigtail, MM 50/125um, Simplex, ST/PC, OD:0.9mm, Length=1M PVC cable
