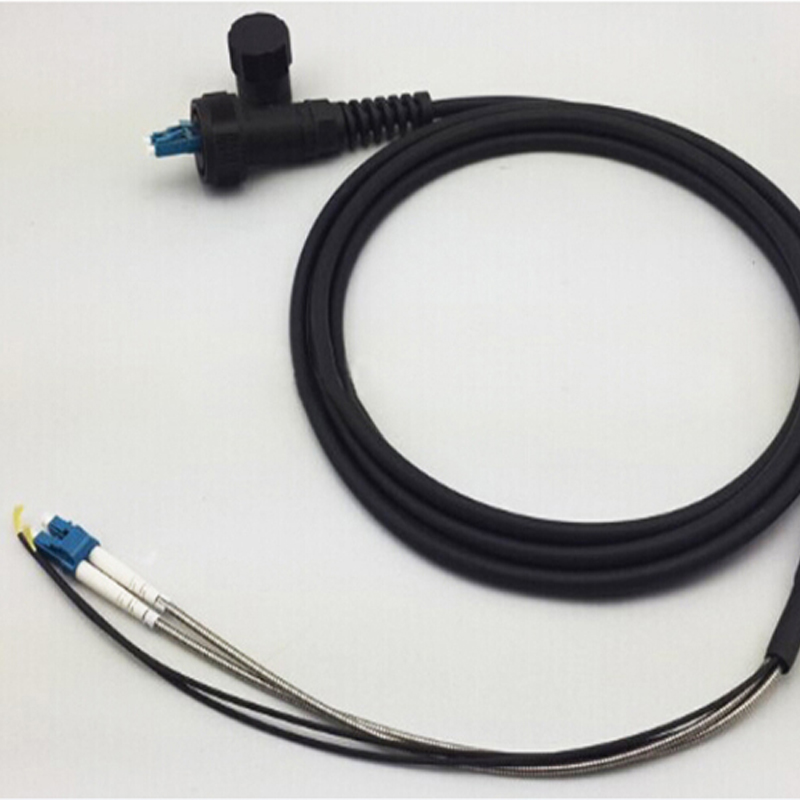

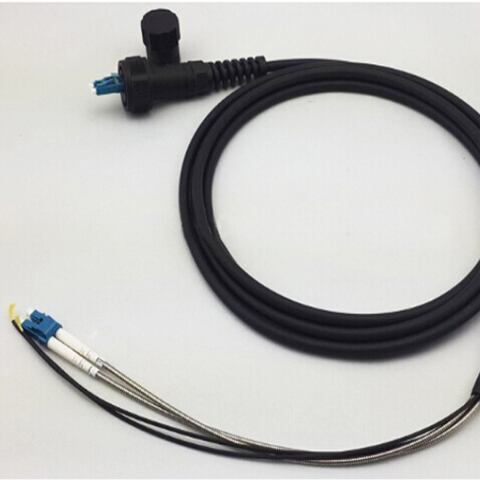

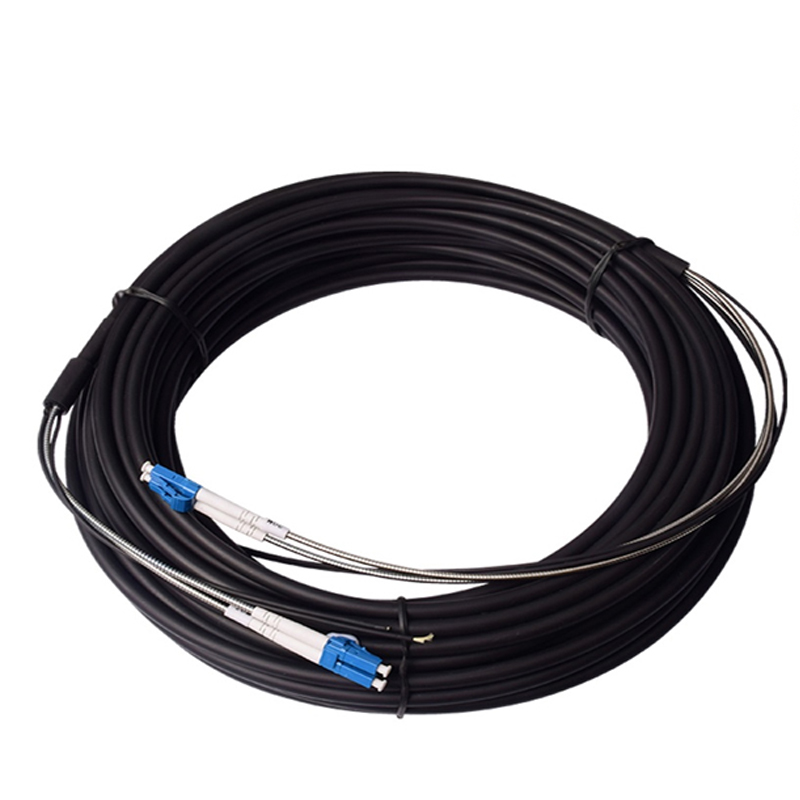

LC/FC/SC Armored Fiber Patch Cord

The fiber patch cord uses 1 fiber, Φ900μm Tight buffer fiber, 1.7mm steel wire, LSZH Jacket, then connected with LC-LC fiber connector.

  • Product Model:
INQUIRY
· Used in pigtails and patch cords;
· Used in optical connections in optical communication equipment rooms and optical distribution frames;
· Used in optical connections in optical apparatus and equipments.
· Good mechanical and environmental characteristics;
· Flame retardant characteristics meets the requirements of relevant standards;
· The mechanical characteristics meet the requirements of relevant standards;
· Soft, flexible, easy to splice, and with big capacity data transmission;
· Meet various requirements of market and clients.

Cable construction details

No. of fiber 1F
Fiber type OM4
Tight buffer Material PVC Color Aqua
Diameter 0.9±0.05mm Thickness 0.32±0.05mm
Yarn Material Dupont kevlar yarn Color Yellow
Type 1000D Qty 4 strands
Armor Material Spiral steel wire Diameter 1.7mm
Out sheath Material LSZH Color Aqua
Diameter 3.0±0.05mm

Cable mechanical and environment characteristics

Tensile strength Long term(N) 40
Short term(N) 80
Crush load Long term(N) 100N/100mm
Short term(N) 500N/100mm
Bending radius Dynamic 20D
Static 10D
Temperature -20℃~70℃

Connector type

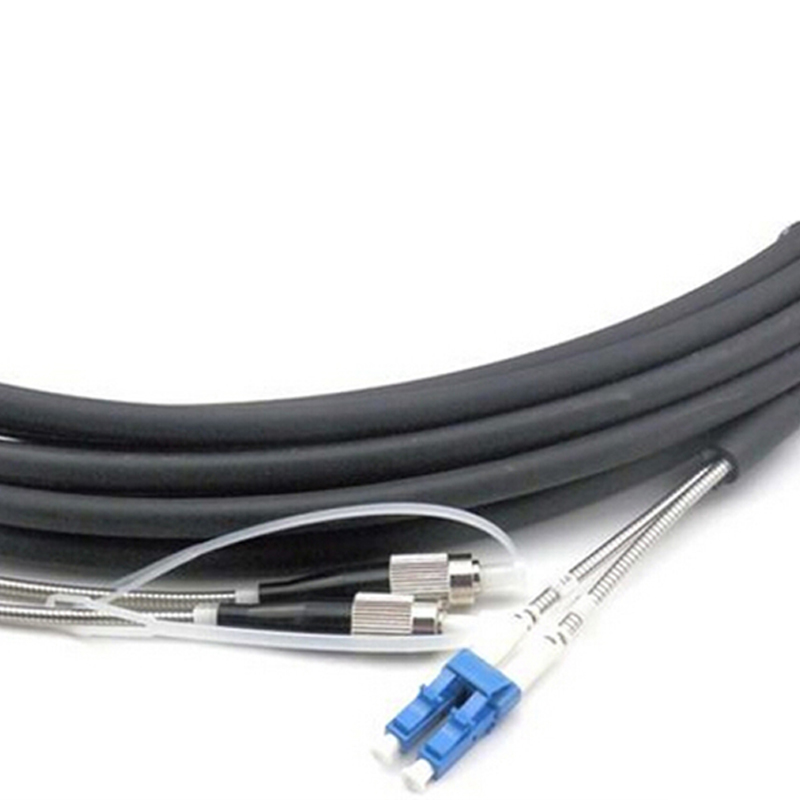

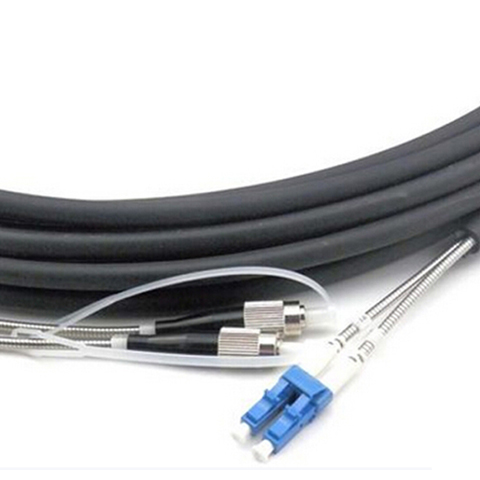

△ Connector type: LC/PC-LC/PC, LC/PC-FC/PC
△ Fiber type: Multi mode OM4

Attenuation parameters

Insertion loss: ≦0.2dB

Return loss: ≧50dB (PC)

Temperature range: -40℃ ~ 70℃
